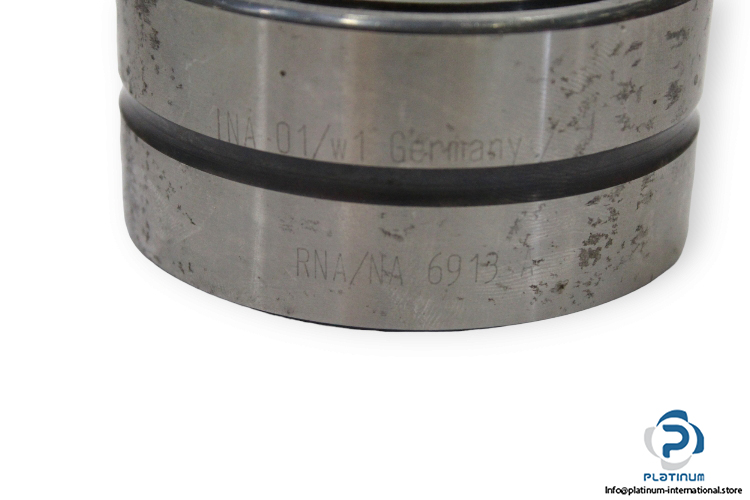

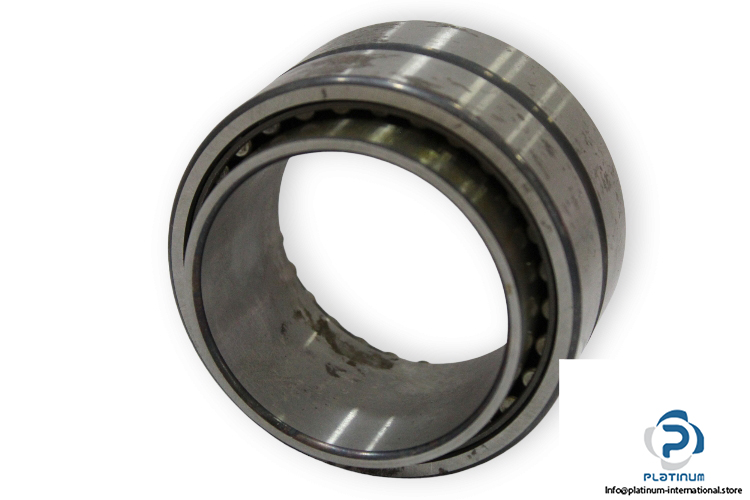

INA RNA/NA6913 Needle Roller Bearing

Name: INA RNA/NA6913 NEEDLE ROLLER BEARING
Brand: INA?
SKU: 1004724
Availability: LimitedAvailability

Auf Lager1 EinheitVersandbereit

Hersteller

INA?

SKU

1004724

Kategorie

Needle Bearings

65 bearing bearings Ina mm Needle radial Roller Schaeffler shaft

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: Schaeffler INA

Type: Needle Roller Bearing

Model: NA6913

Dimensions

Bore Diameter d: 65 mm

Outer diameter D: 90 mm

Width B: 45 mm

Minimum chamfer dimension rmin: 1 mm

Basic load ratings:

Dynamic C_r: 108000 N

Static C_0r: 198000 N

Fatigue load limit C_ur: 34500 N

Reference speed: 3550 rpm

Limiting speed: 6300 rpm

Operating temperature: -30 … +120 °C
