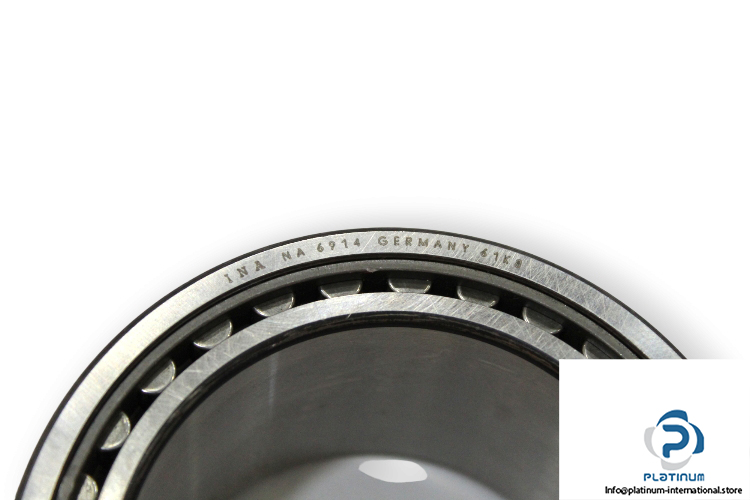

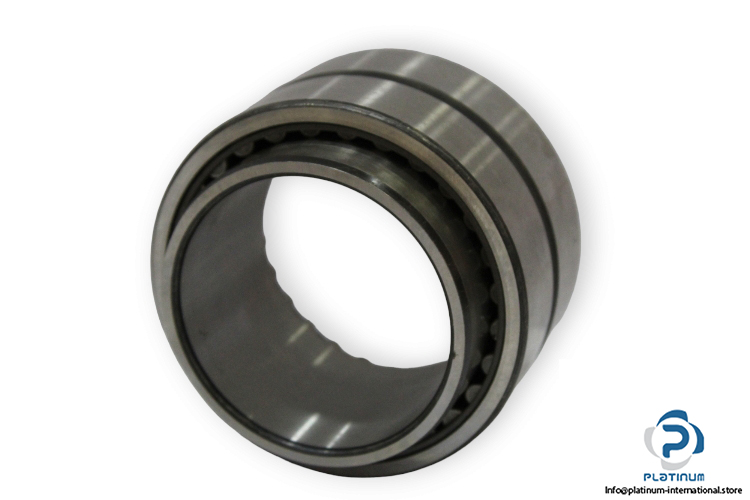

INA NA6914 Needle Roller Bearing

Manufacturer: Schaeffler INA

Type: Needle Roller Bearing

Model: NA 6914



Dimensions

Bore Diameter d: 70 mm

Outer diameter D: 100 mm

Width B: 54 mm

Minimum chamfer dimension rmin: 1 mm

Basic load ratings:

Dynamic C_r: 145000 N

Static C_0r: 265000 N

Fatigue load limit C_ur: 48000 N

Reference speed: 3300 rpm

Limiting speed: 5700 rpm

Operating temperature:  -30 … +120 °C
