INA NKI 35/30 Needle Roller Bearing
Nadelrollenlager INA NKI 35/30 Nadelrollenlager mit hoher Tragfähigkeit, kompaktem Design und zuverlässiger Leistung für industrielle Getriebe und Antriebssysteme. Ideal für schwerbelastete rotierende Ausrüstung unter anspruchsvollen Lastbedingungen.

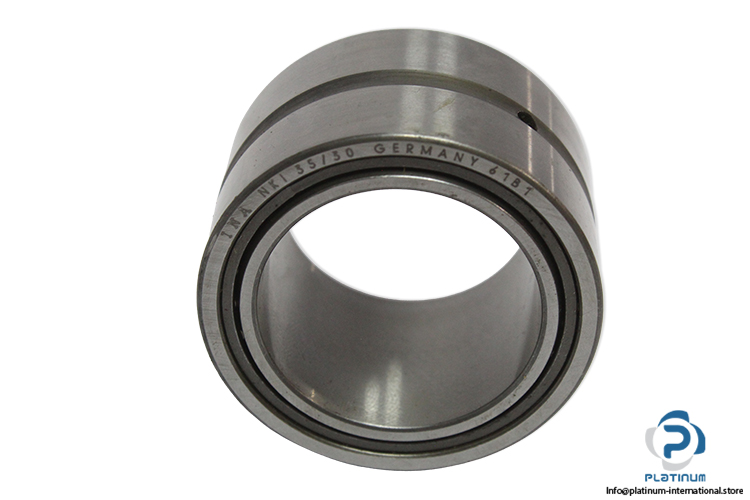

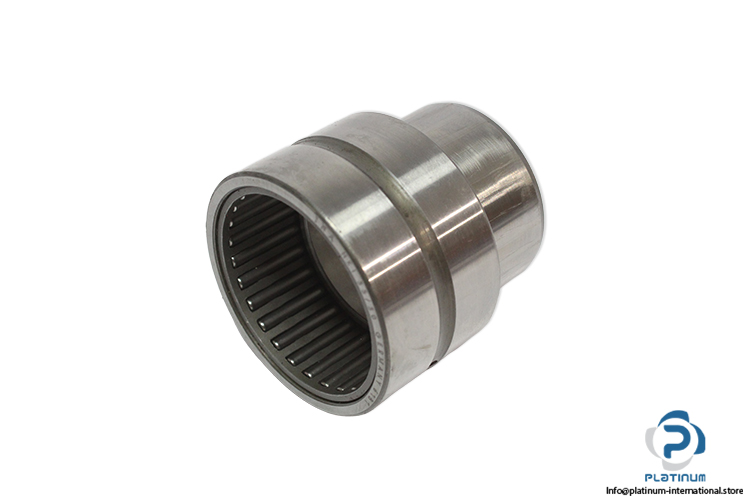

INA NKI 35/30 Needle Roller Bearing
The INA NKI 35/30 needle roller bearing, manufactured by Schaeffler, is designed for high load capacity and compact radial installation spaces. It provides reliable performance in demanding industrial and mechanical applications.
Manufacturer: INA / Schaeffler
Type: Needle Roller Bearing
Model: NKI 35/30
Recommended for heavy-duty gearboxes, industrial transmissions, and high-load rotating assemblies requiring compact bearing solutions.
Please contact us via Ask for assistance with any inquiries.
| Bore Diameter (d) | 35 mm |
| Outside Diameter (D) | 50 mm |
| Width (B) | 30 mm |
| Basic Dynamic Load Rating, Axial (Cr) | 44,000 N |
| Basic Static Load Rating, Axial (C0r) | 79,000 N |
| Fatigue Load Limit, Axial (Cur) | 14,900 N |
| Limiting Speed | 11,400 1/min |
| Reference Speed | 6,200 1/min |
| Operating Temperature | -30 to 120 °C |
