INA Nutr 20 Yoke Type Track Roller
Yoke-Typ Schienenrolle INA NUTR 20 Schienenrolle mit hoher radialer Tragfähigkeit, Fettschmierung und robustem Außenringdesign für Nockengetriebe und industrielle Nachführungssysteme. Ideal für Fördersysteme, Nockenmechanismen und Anwendungen der Schwerlast-Linearführung.

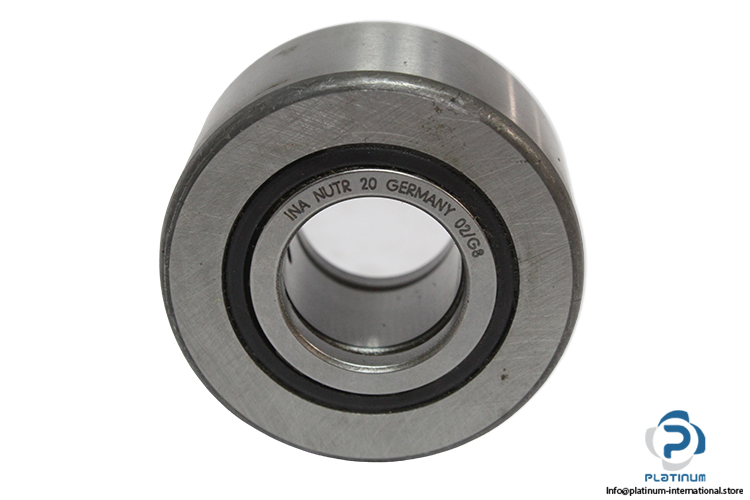

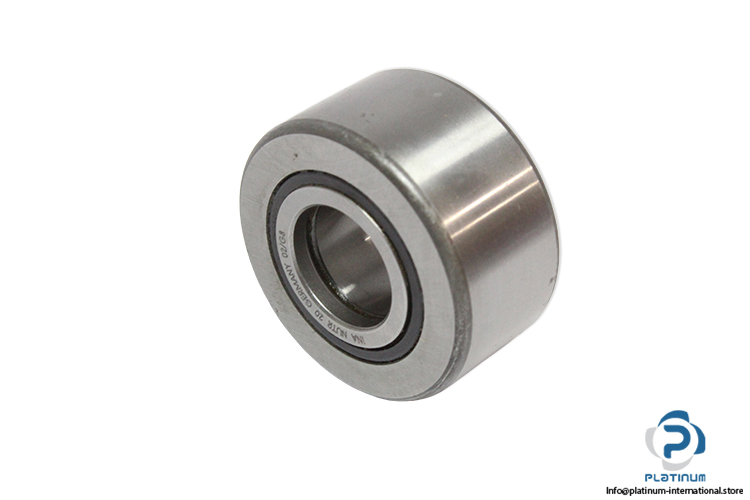

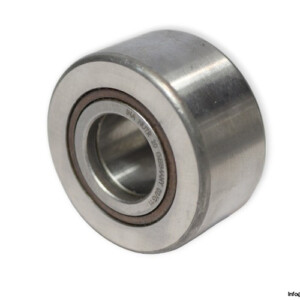

INA NUTR 20 Yoke Type Track Roller
The INA NUTR 20 yoke type track roller is engineered for high radial load capacity and precise rolling guidance in cam drives, linear motion systems, and heavy-duty track applications.
Manufacturer: INA
Type: Yoke Type Track Roller
Model: NUTR 20
Recommended for cam followers, guide rails, conveyor systems, and heavy-duty tracking mechanisms requiring high radial strength and long service life.
Please contact us via Ask for assistance with any inquiries.
| Bore Diameter d | 20 mm |
| Outer Diameter D | 47 mm |
| Width of the Bearing B | 25 mm |
| Basic Dynamic Load Rating (C) | 28500 N |
| Basic Static Load Rating (C0) | 38000 N |
| Fatigue Load Limit | 4950 N |
| Speed on Permanent Grease Lubrication | 4200 rpm |
| Permissible Static Load, Radial | 32500 N |
| Permissible Dynamic Load Outer Ring, Radial | 16300 N |
