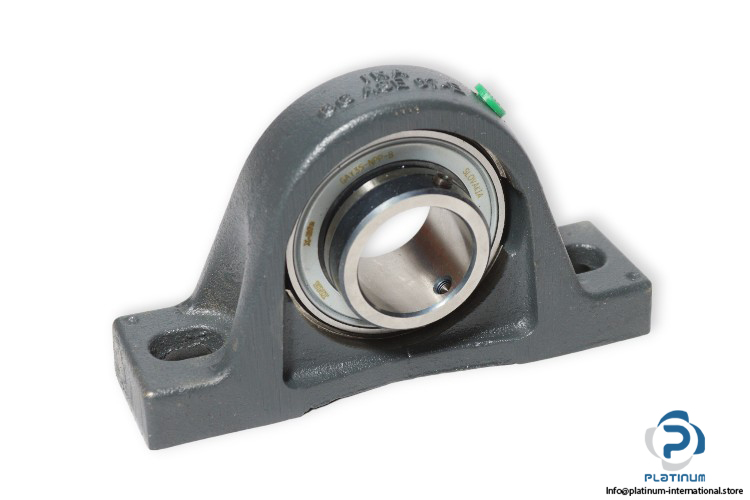

INA PASEY35-N Plummer Block Housing Unit

Name: INA PASEY35-N PLUMMER BLOCK HOUSING UNIT
SKU: 1030835
Availability: LimitedAvailability

ina-PASEY35-N-plummer-block-housing-unit-(new)

ina-PASEY35-N-plummer-block-housing-unit-(new)-1

ina-PASEY35-N-plummer-block-housing-unit-(new)-2

ina-PASEY35-N-plummer-block-housing-unit-(new)-3

Neu

Auf Lager1 EinheitVersandbereit

Hersteller: Schaeffler INA Typ: Gehäuse für Plummer Block Einheit Modell: PASEY35 N Ersatz für: PASEY35-XL-N Gehäuse: GG. ASE07.E Lagerbezeichnung: GAY35-NPP-B

Hersteller

INA?

SKU

1030835

Kategorie

Plummer Block Housing Units

Zustand

Neu

35 Ball bearing bearings Block Cast grub Housing in Ina Inner insert Iron mm p Pasey plummer radial Ring Screws Seals Units With

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: Schaeffler INA
Type: Plummer block housing unit
Model: PASEY35 N
Replaces: PASEY35-XL-N

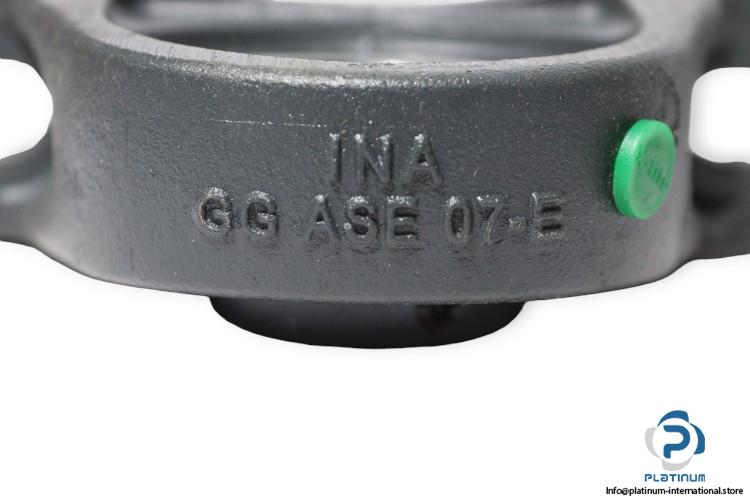

Housing: GG. ASE07.E

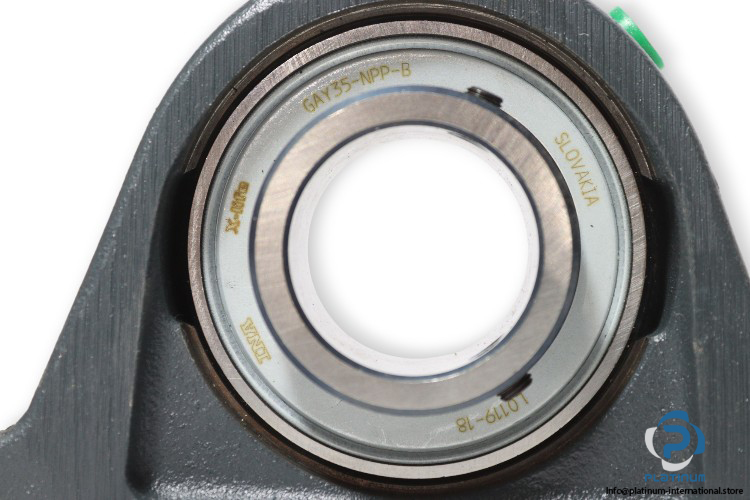

Bearing designation: GAY35-NPP-B

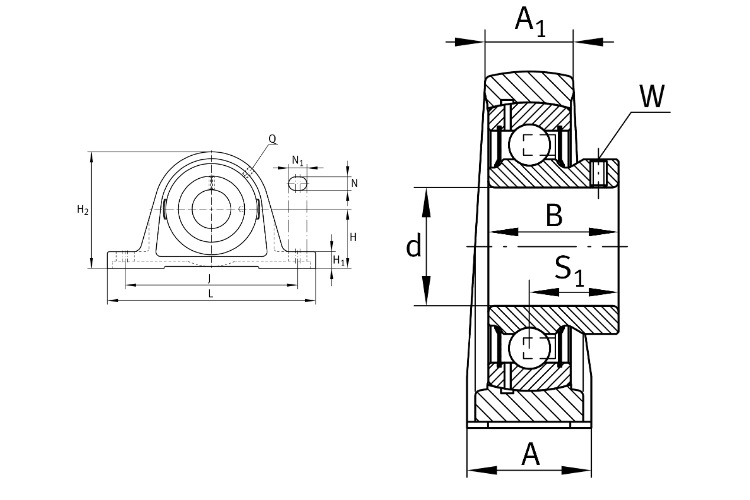

Dimensions
Bore Diameter d: 35 mm
Overall length L: 163 mm
Hight H2: 93 mm
Distance fixing bore J: 126 mm
Distance shaft axis H: 47.6 mm
width (Slot) N: 14 mm
Length (slot ) N1: 21 mm
Width (base) A: 45 mm
Connection thread for lubrication: M6
Groove: N, Cast iron housing with undercut slot for end caps
Locking device: eccentric locking collar
Material: GG, Grey cast iron
Protecting cap: KASK07
