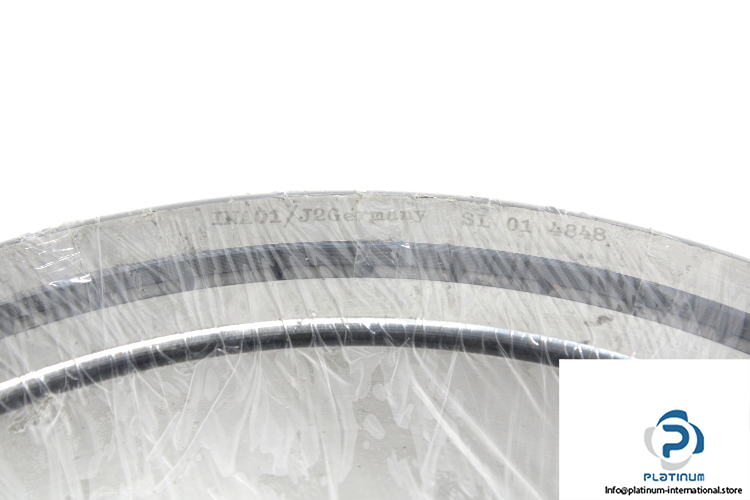

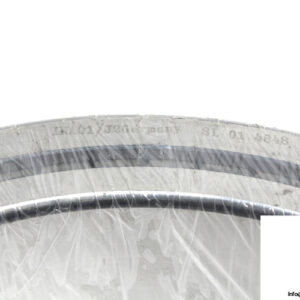

INA SL 01 4848 Double ROW Cylindrical Roller Bearing

Manufacturer: Schaeffler INA

Type: Cylindrical Roller Bearing, full complement roller set, two-row, locating bearing

Model: SL014848

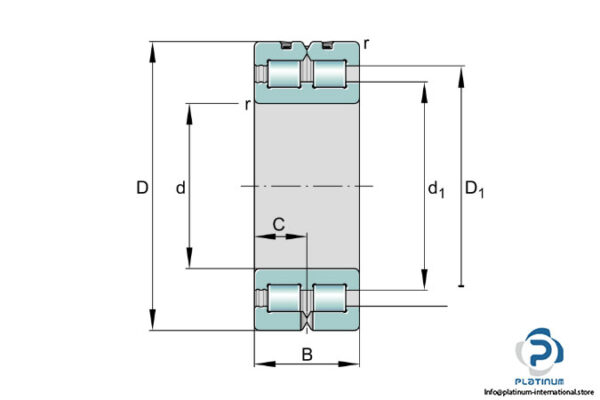

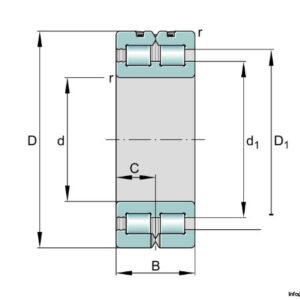

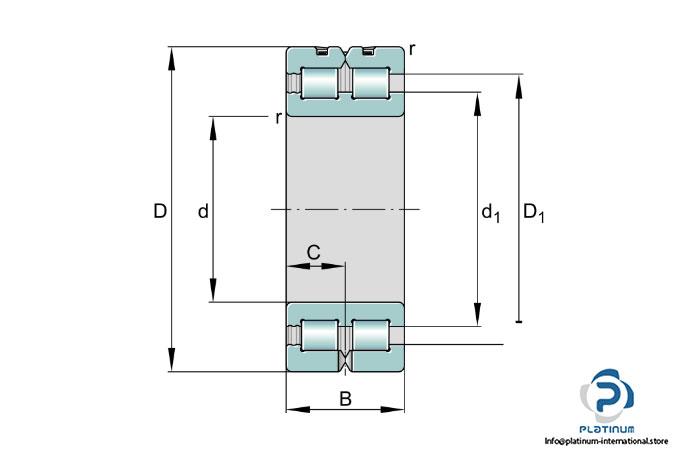

Dimensions:

Bore Diameter d: 240 mm

Outer diameter D: 300 mm

Width B: 60 mm

Basic load ratings:

Dynamic C_r: 510000 N

Static C_0r: 1260000 N

Fatigue load rating: 144000 N

Limiting speed: 1170 rpm

Reference speed: 730 rpm

Cage design: Full complement of rollers (no cage)

Operating temperature: -30 … +120°C
