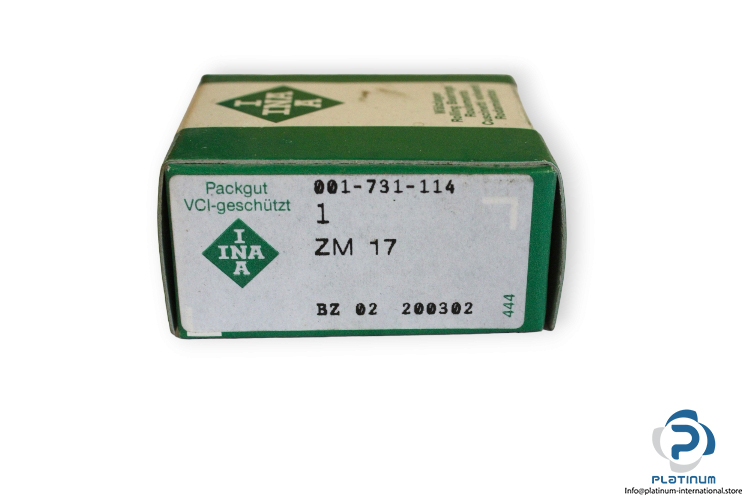

INA ZM 17 Precision Locknut

Manufacturer: Schaeffler INA
Type:  Precision locknut ZM
Model: ZM17

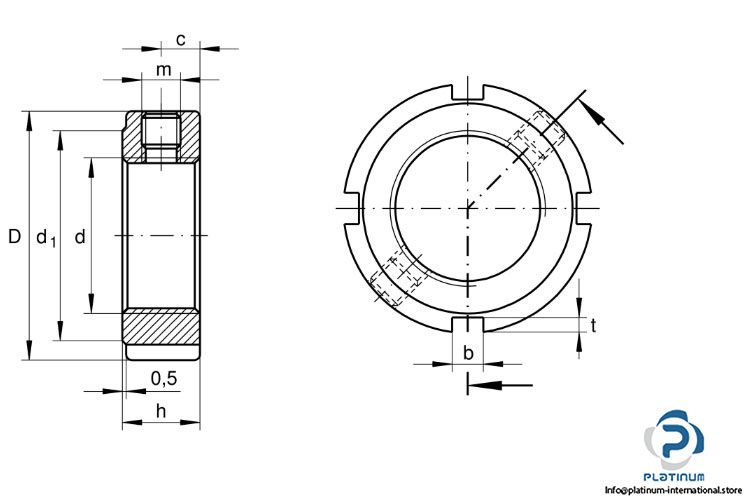

Dimensions:
Thread d: M17X1
Plant diameter outside d₁: 23 mm
Outside diameter D: 28 mm
Height h: 10 mm
Mounting torque set screw: 3 Nm
Breaking load, axial F_aB: 57000 N
Breakawag M_L: 30 Nm
Mounting torque reference M_AL: 15 Nm
