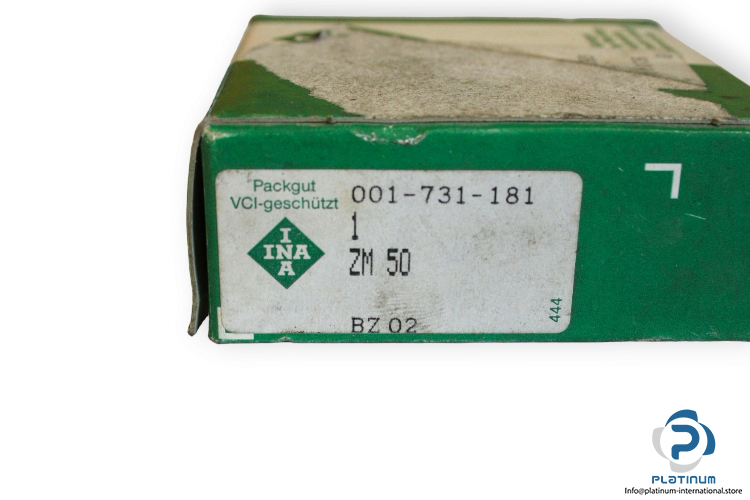

INA ZM 50 Precision Locknut

Manufacturer: Schaeffler INA
Type:  Precision locknut ZM
Model: ZM50

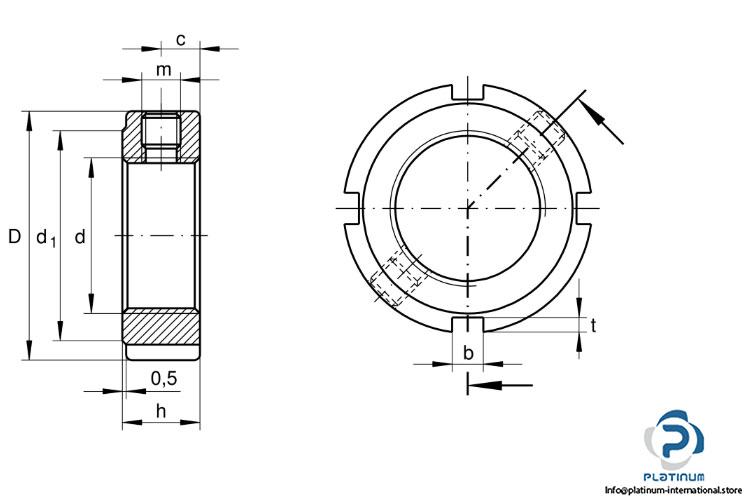

Dimensions:
Thread d: M50X1.5
Plant diameter outside d₁: 64 mm
Outside diameter D: 70 mm
Height h: 14 mm
Mounting torque set screw: 5 Nm
Breaking load, axial F_aB: 205000 N
Breakawag M_L: 130 Nm
Mounting torque reference M_AL: 85 Nm
