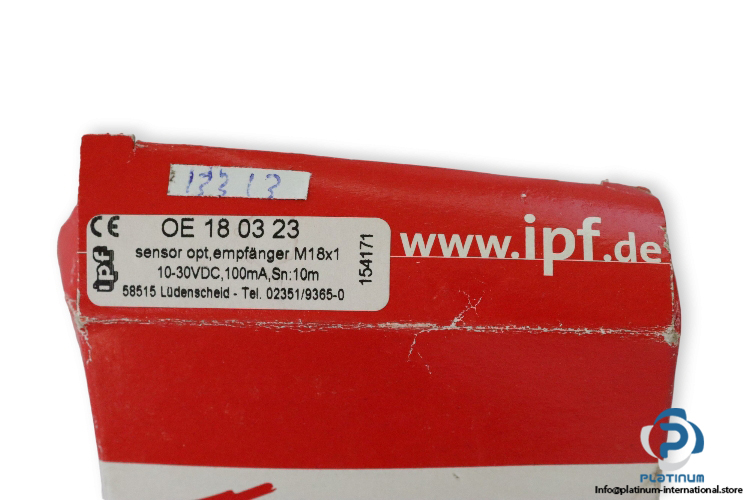

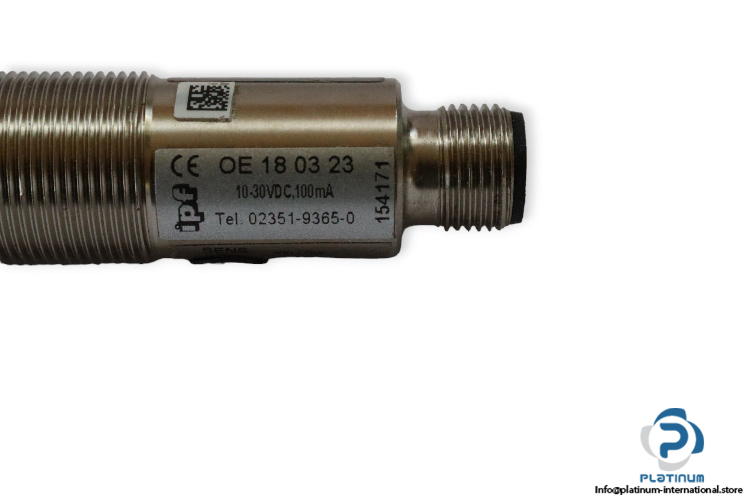

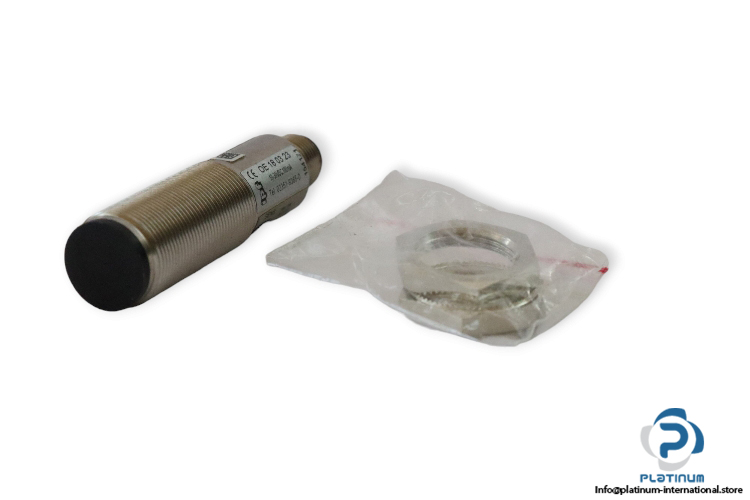

IPF OE 18 03 23 Through Beam Receiver Sensor

Manufacturer: IPF
Type: Through Beam Receiver Sensor
Model: OE180323

Operating voltage: 10… 30 V DC
Measuring range: 10 m
Design: Cylinder, screw-thread
Housing coating: Nickel-plated
Housing material: Brass
Material of optical surface: Plastic
Sensor length: 70 mm
Thread length: 35 mm
Thread pitch: 1 mm
Thread size, metric: 18
Decay time: 1 ms
No-load current: 25 mA
No-load current, receiver: 25 mA
Rated switching current: 100 mA
Rated switching distance: 10000 mm
Scanning function: Light-/dark-on mode
Setting procedure: Manual adjustment
Switching frequency: 500 Hz

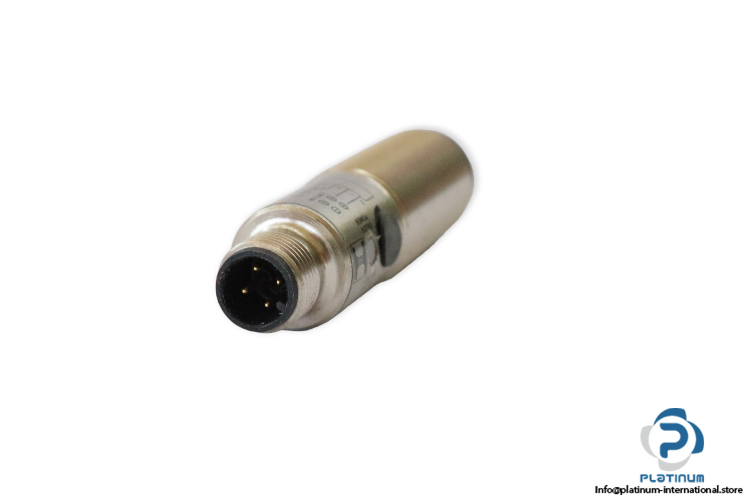

Type of electrical connection: Connector M12
Type of switching function: Programmable/configurable
Type of switching output: PNP
Voltage drop: 2 V
Light source: Infrared light
Wavelength of the sensor: 880 nm
Light beam form: Point
Ambient temperature: -25 … 55 °C
Degree of protection: IP67
