ISB UKPA206+H2306 Pillow Block Ball Bearing Unit
Gehäuselager-Kugellagereinheit Die ISB UKPA206+H2306 Gehäuselager-Kugellagereinheit verfügt über einen Bohrungsdurchmesser von 25 mm, eine Gesamtlänge von 94 mm und eine sichere Montage mit einer Adapterhülse für den Hochleistungsbetrieb in Industriesystemen.
ISB UKPA206+H2306 Pillow Block Ball Bearing Unit (With Adapter Sleeve)
The ISB UKPA206+H2306 Pillow Block Ball Bearing Unit is designed for reliable operation in a wide range of industrial applications. Featuring an adapter sleeve for secure mounting, this pillow block bearing unit provides smooth, efficient motion under radial and axial loads.
Manufacturer: ISB
Type: PILLOW BLOCK BALL BEARING UNIT (With Adapter Sleeve)
Model: UKPA206+H2306
This pillow block bearing unit with adapter sleeve ensures easy installation, long-lasting durability, and stable performance in a variety of applications, providing reliable service even under heavy loads.

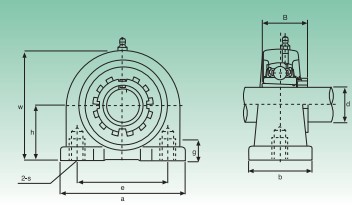

| Bearing No. | UK 206 |
| Housing No. | PA 206 |
| Bore Diameter | 25 mm |
| Overall Length | 94 mm |
| Overall Height | 84 mm |
| Width of Inner Ring | 38.1 mm |
| h | 42.9 mm |
| Base Width | 50 mm |
| Distance Between Attachment Bolts | 66 mm |
| Mounting Hole Thread Depth | 18 mm |
