ISI VGXV4001000 Spot Welding Tool FOR Robot
2 799,99$
PUNKTSCHWEIßWERKZEUG ISI ITALIA VGXV4001000 Punktschweißwerkzeug für KUKA DE 134019 mit maximaler Schweißkraft von 450 DaN, 21700 A Schweißstrom, präziser zentraler Punktausrichtung und ISI ITALIA Linearmotor AL506A30205158C02004A1B101.

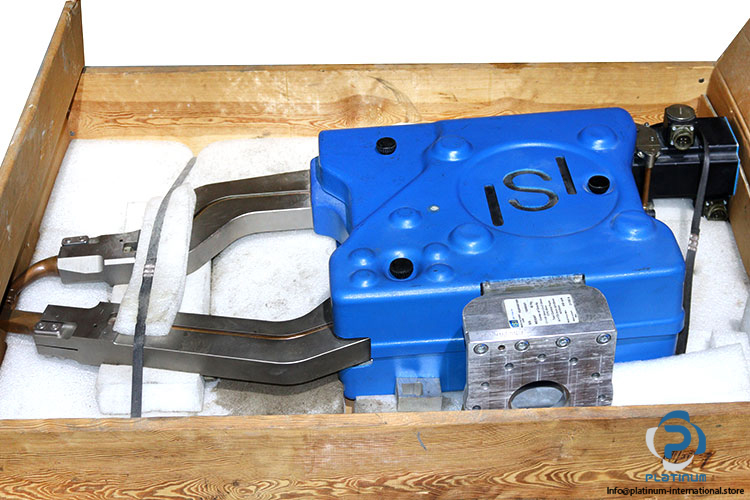

ISI ITALIA VGXV4001000 Spot Welding Tool for Robot
The ISI ITALIA VGXV4001000 is a precision-engineered spot welding tool designed for robotic applications, specifically for KUKA robots (DE 134019). With high welding force, robust design, and accurate central point positioning, it ensures reliable and powerful welding performance. This unit is equipped with an ISI ITALIA linear motor for enhanced efficiency and precision.
Manufacturer: ISI ITALIA
Type: Spot Welding Tool for Robot
Model: VGXV4001000

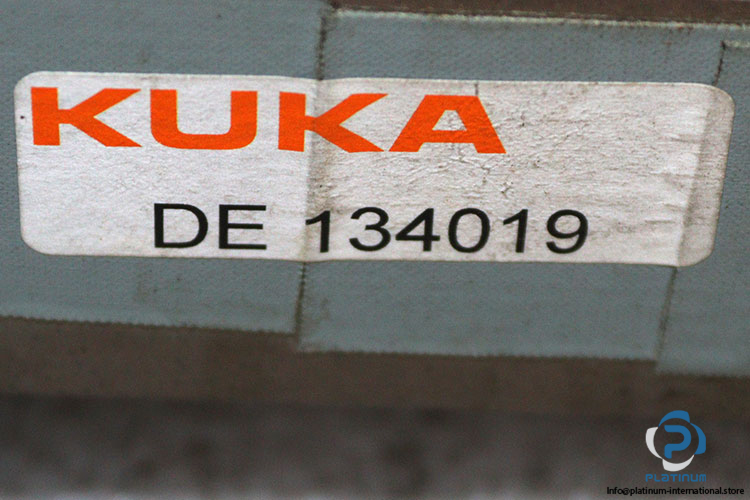

Used for: KUKA DE 134019

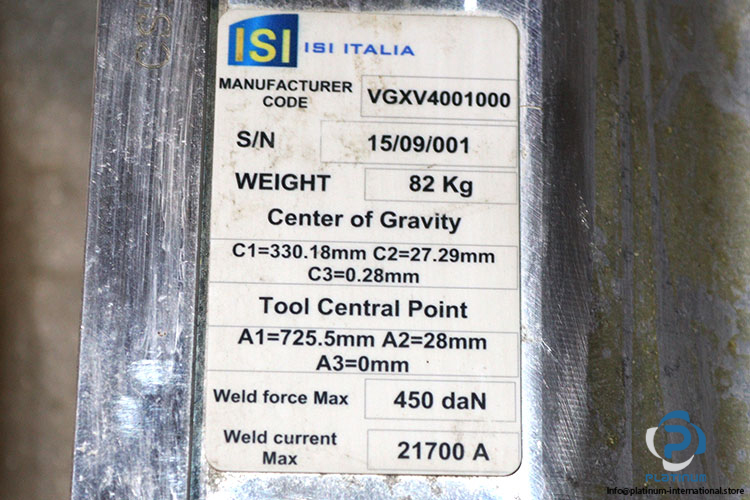

| Center of Gravity | C1: 330.18 mm, C2: 27.29 mm, C3: 0.28 mm |
| Tool Central Point | A1: 725.5 mm, A2: 28 mm, A3: 0 mm |
| Welding Force Max. | 450 DaN |
| Weld Current Max. | 21700 A |

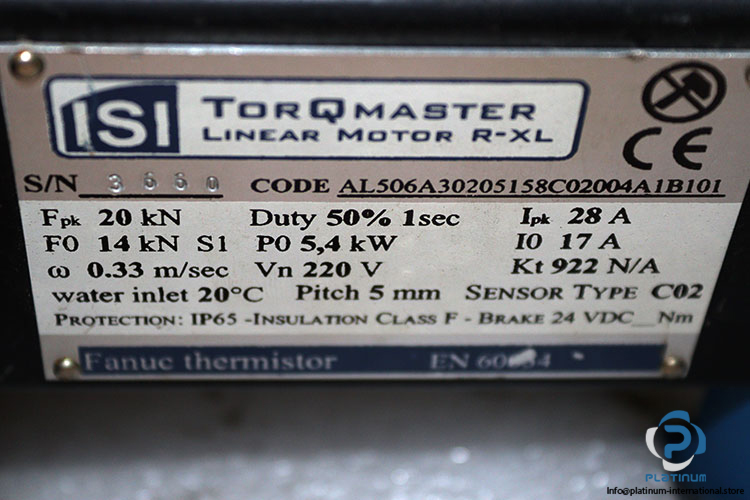

| Attachment | ISI ITALIA AL506A30205158C02004A1B101 Linear Motor |
| Nominal Voltage | 220 V |
| Peak Current | 28 A |
| Initial Current | 17 A |
| Peak Force | 20 KN |
| Initial Force | 14 KN |
| Pitch | 5 mm |
| Speed | 0.33 m/sec |
| Sensor Type | C02 |
| Water Inlet | 20 °C |
