Italsensor TK560.F.50.11/30.S.K4.8.S07.PP2-1130. Incremental Encoder
Gebraucht
Auf Lager1 EinheitVersandbereit
Inkrementalgeber Italsensor TK560F501130SK48S07PP21130 ist ein robuster Encoder der TK50 Serie mit 50 ppr Auflösung, Push-Pull Ausgang und IP64 Schutz – ideal für industrielle Automatisierung und Präzisionsbewegungssysteme.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

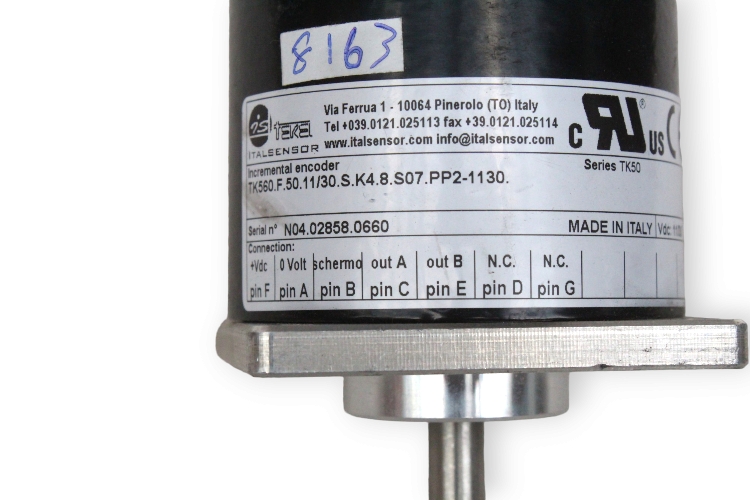

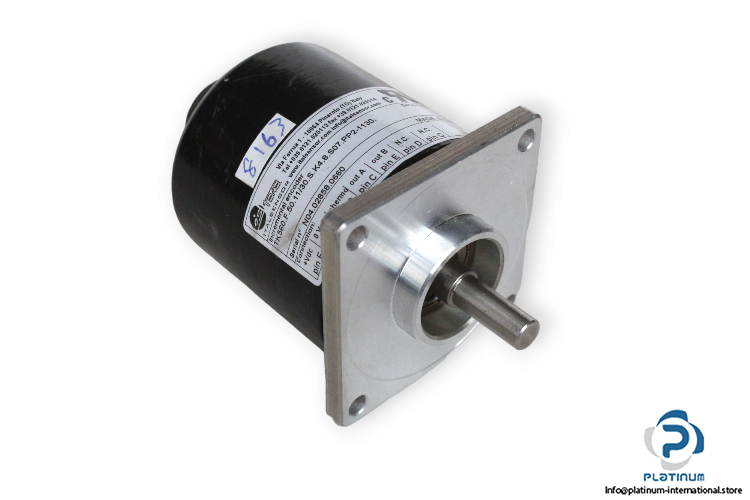

Italsensor TK560F501130SK48S07PP21130 Incremental Encoder
The Italsensor TK50 Series Incremental Encoder delivers high-precision signal feedback and rugged design for demanding industrial automation applications. Built with robust materials and engineered for reliability, it ensures consistent performance in harsh environments.
Manufacturer: Italsensor
Type: Incremental Encoder
Model: TK560F501130SK48S07PP21130
Series: TK50
Serial No.: N04.02858.0660
| Supply Voltage | 11 “ 30 V DC |
| Pulse Rate | 50 ppr |
| Output Frequency | up to 300 kHz |
| Output Circuit | Push-Pull 11/30 V output |
| Supply Current (no load) | 150 mA max |

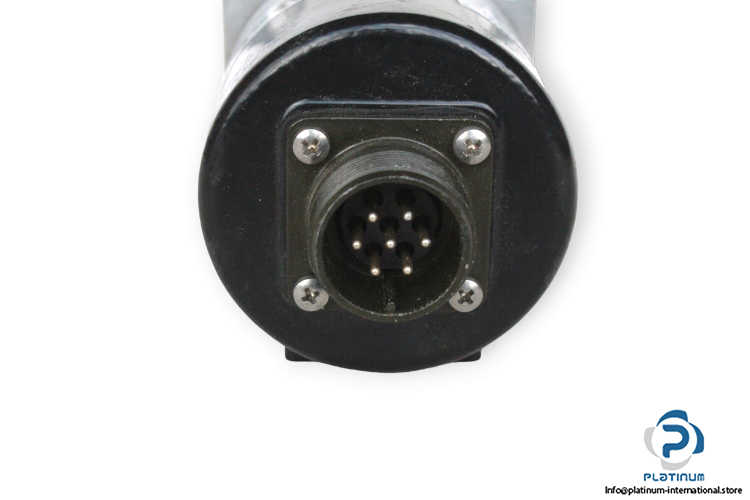

| Electrical Connection | 7 Pins Radial MIL Connector |
| Assembly | Square Flange |
| Shaft Loading | Axial 200N; Radial 200N |
| Solid Shaft Diameter | 8 mm |
| Shaft Material | Stainless Steel |
| Flange Material | Aluminium (non-corroding) |
| Housing Material | Aluminium |
| Operating Temperature | -10 / 70 °C |
| Degree of Protection | IP64 |
