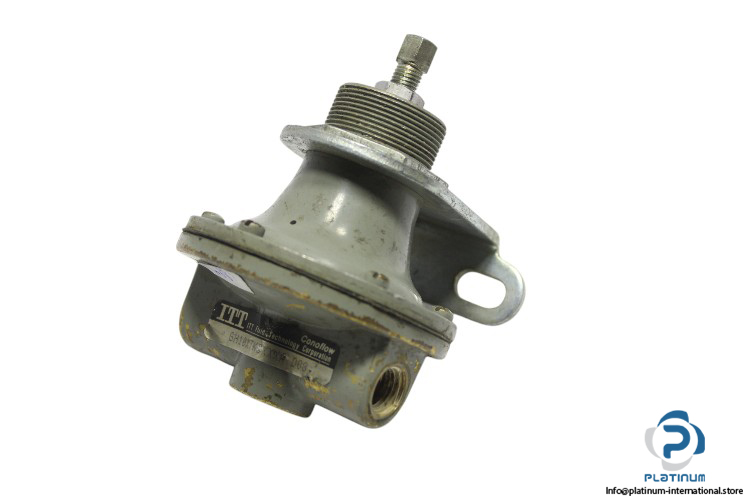

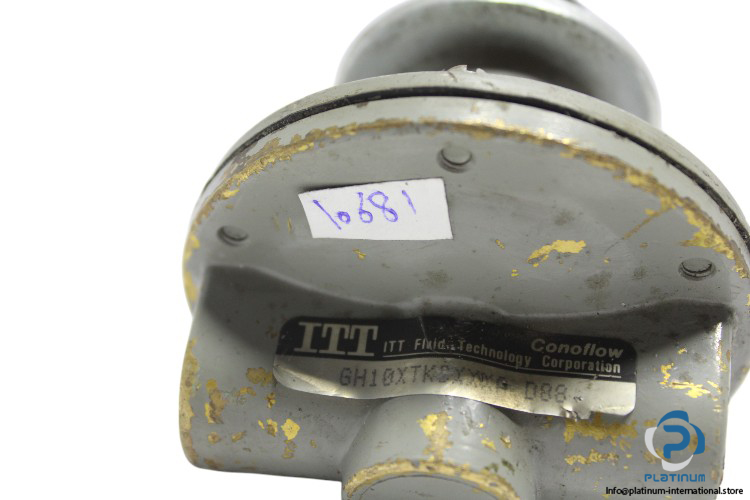

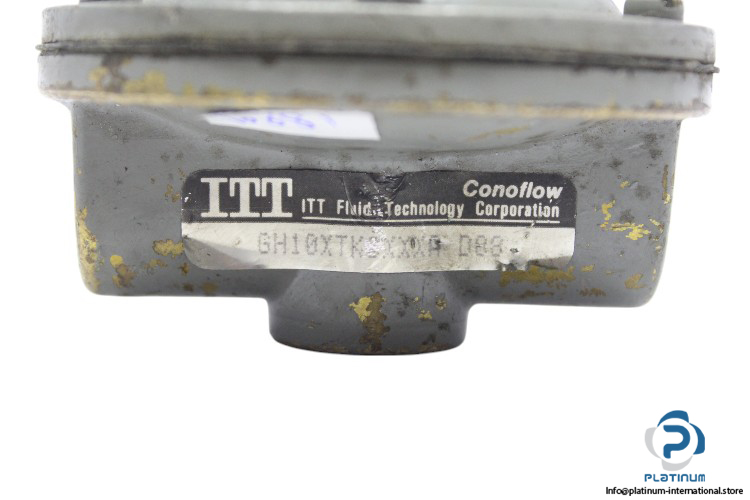

ITT Conoflow GH10XTKCXXXA D08 Manual Loading Regulator
Manueller Laderegler ITT CONOFLOW Manueller Laderegler GH10XTKCXXXA D08 mit geregelltem Ausgangsdruck von 0 bis 125 PSI, maximalem Versorgungsdruck von 200 PSI und G 1/4 pneumatischer Verbindung. Gefertigt mit Messinggehäuse und Edelstahlverschluss für langlebige Leistung in Industrieumgebungen.
ITT CONOFLOW Manual Loading Regulator GH10XTKCXXXA D08
The ITT CONOFLOW Manual Loading Regulator GH10XTKCXXXA D08 is designed for precise regulation of air pressure in pneumatic systems. This manual operation regulator allows for easy and reliable adjustment of output pressure within the range of 0 to 125 PSI (0 to 862 kPa). With a maximum supply pressure of 200 PSI / 1379 kPa, this regulator is ideal for a wide range of industrial applications. It features a brass body, stainless steel plug, and operates in a broad temperature range from -29°C to 66°C, making it highly durable in challenging environments.
Manufacturer: ITT CONOFLOW
Type: Manual Loading Regulator
Model: GH10XTKCXXXA D08
Technical Specifications
- Fluid: Air
- Operation Mode: Manual
- Supply Pressure Max.: 200 PSI / 1379 kPa
- Regulated Output Pressure Range: 0 / 125 PSI (0 / 862 kPa)
- Material: Brass Body, Stainless Steel Plug
- Ambient Temperature: -29 / 66 °C
- Pneumatic Connection: G 1/4
