Johnson Controls F61SB-9100 Liquid Flow Switch
Flüssigkeits-Durchflussschalter Der JOHNSON F61SB-9100 Flüssigkeits-Durchflussschalter bietet zuverlässige Durchflusserkennung mit einem maximalen Flüssigkeitsdruck von 10 bar, einem Flüssigkeitstemperaturbereich von 0 bis 100°C und einem SPDT-Schnappschalter. Er verfügt über IP43-Schutz und eine Polycarbonatabdeckung für Langlebigkeit, ideal für industrielle Umgebungen.
JOHNSON F61SB-9100 Liquid Flow Switch

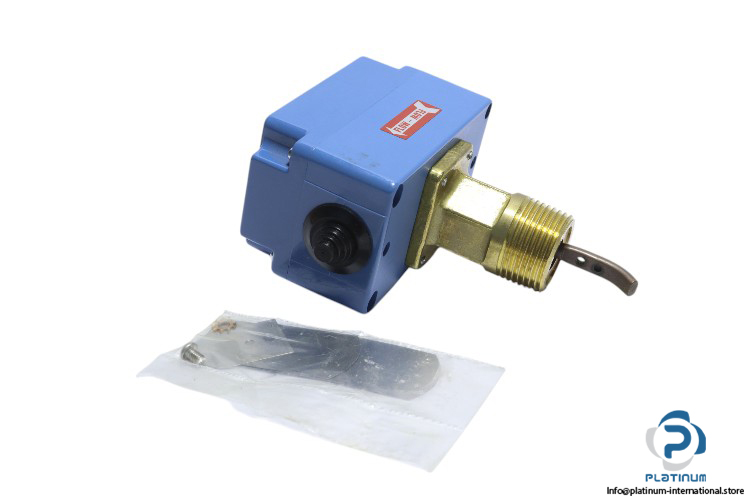

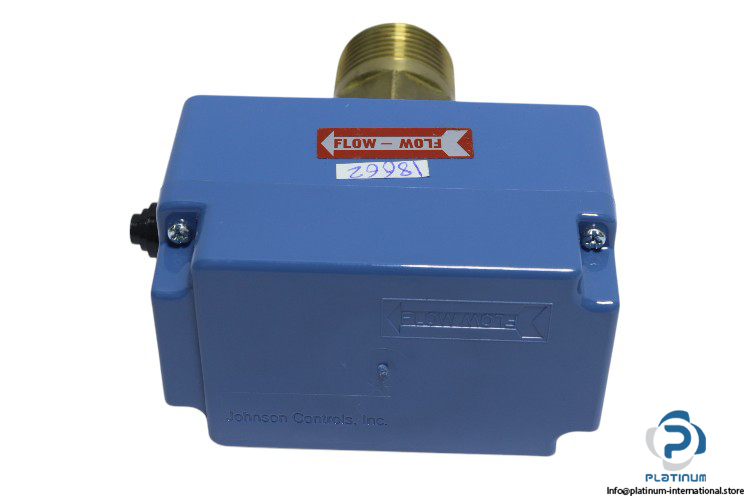

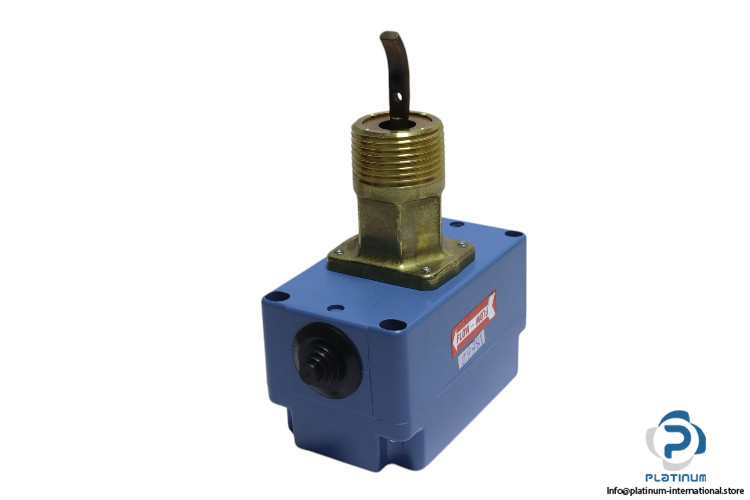

The JOHNSON F61SB-9100 Liquid Flow Switch is designed for reliable flow detection in liquid systems. With a maximum liquid pressure of 10 bar and an operating liquid temperature range of 0 to 100°C, this flow switch is ideal for various industrial applications. The SPDT snap-acting switch provides reliable operation, with an electrical rating of 15(8) A 230 VAC. Its IP43 degree of protection ensures the switch is resistant to dust and water, making it suitable for use in harsh environments. The polycarbonate cover and case provide durability and protection, while the wide ambient temperature range of -40 to 55°C allows for versatile use in extreme environments.
Manufacturer: JOHNSON
Type: Liquid Flow Switch
Model: F61SB-9100
This liquid flow switch is ideal for a wide range of industrial applications, offering durability, precision, and reliable performance in detecting liquid flow under varying conditions.
| Max Liquid Pressure | 10 bar |
| Liquid Temperature | 0 to 100°C |
| Contact Type | SPDT snap-acting switch |
| Electrical Rating | 15(8) A 230 VAC |
| Degree of Protection | IP43 |
| Materials (Cover/Case) | Polycarbonate |
| Ambient Temperature | -40 to 55°C |
