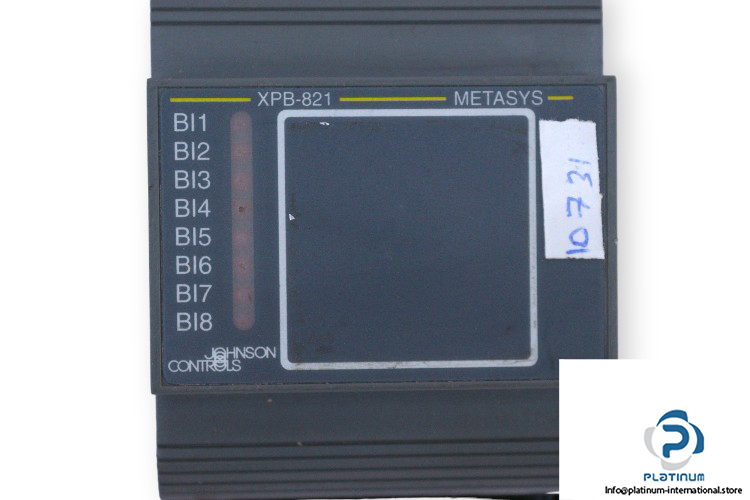

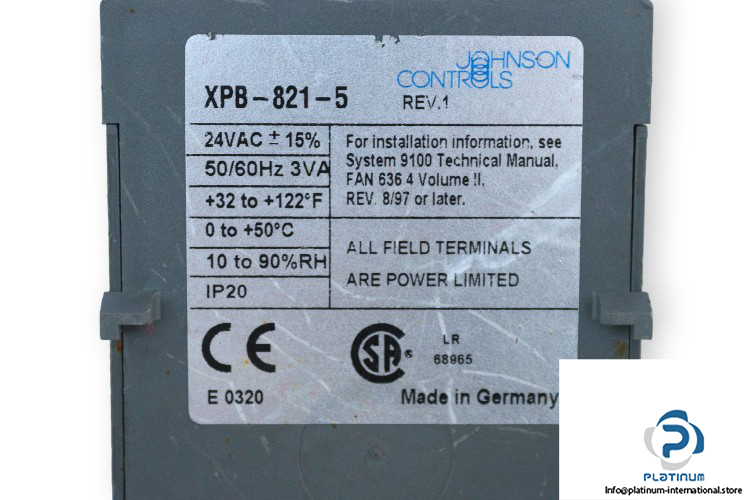

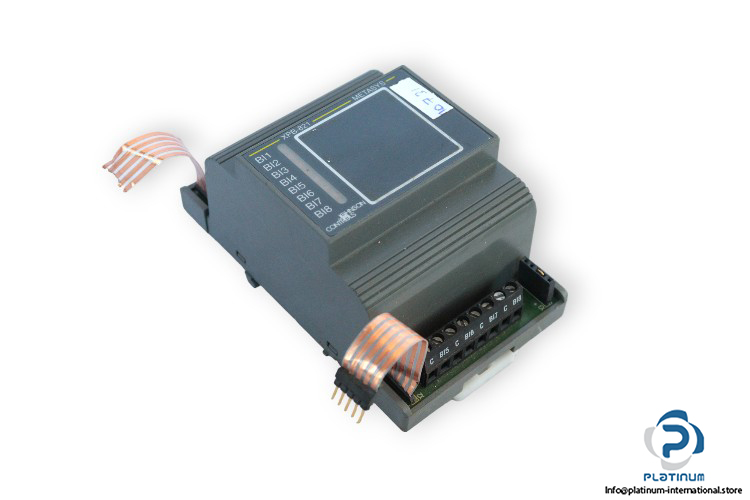

Johnson Controls XPB-821-5 Expansion Module
Manufacture: Johnson Controls
Type: Expansion Module
Model: XPB-821-5
Series: METASYS
No. of binary input: 8
Voltage: 24 V AC
Frequency: 50/60 Hz
Power Consumption: 3 VA
Terminations Inputs: 0.5…1.5 mm² (20…16 AWG) stranded cable 0.5…2.5 mm² (20…14 AWG) solid cable
Module Supply Bus (24 VAC): 5-pin ribbon cable provided with module
Input Resistance: 7K ohms
LED Indicators (red): Each input indicated by an LED
Protection degree: IP20
Temperature range: 0 … 50°C
Dimensions: 118 x 70 x 57 mm
