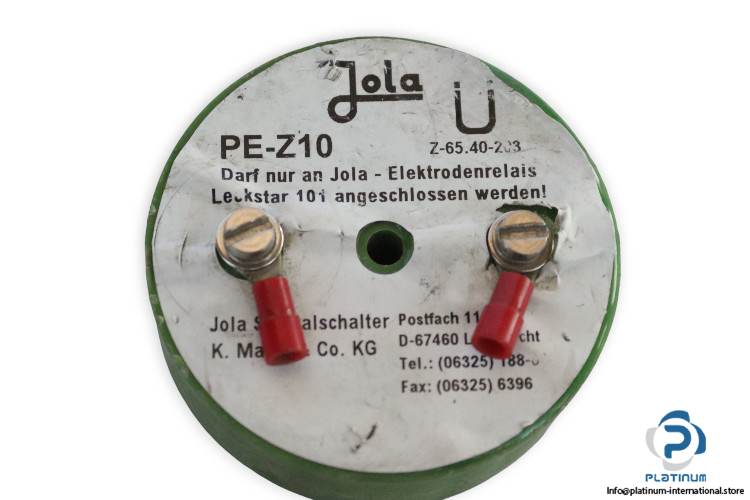

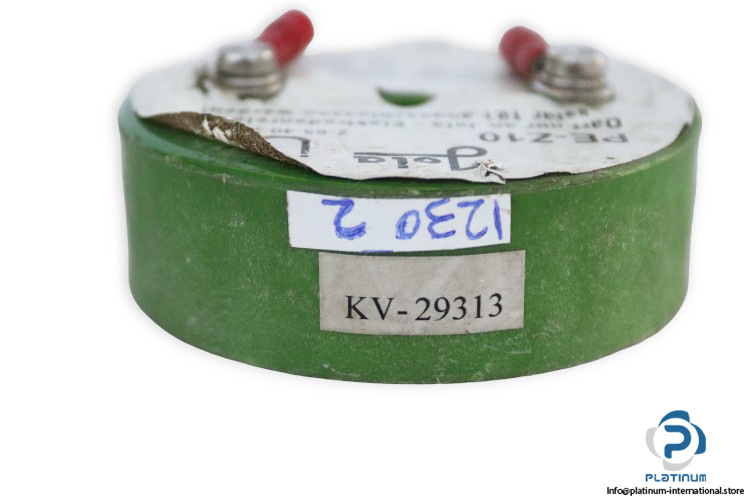

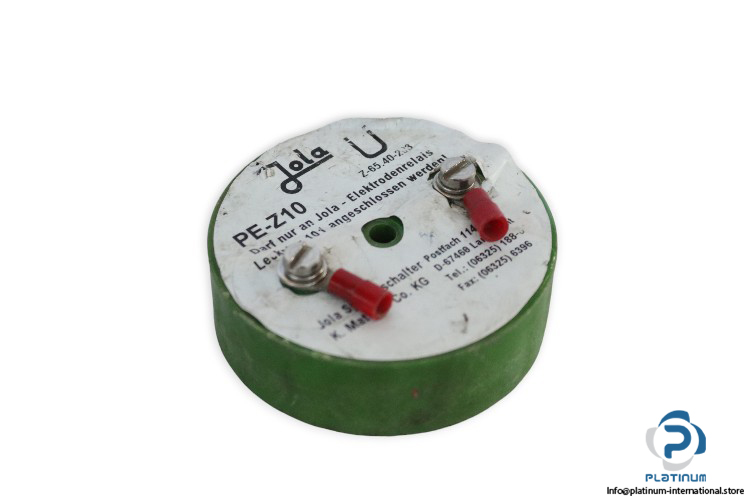

Jola PE-Z10 Leakage Detector

Manufacturer: Jola
Type: Leakage detector
Model: PEZ10
Part No.: KV-29313

Used: For the detection of conductive liquids
Design: 1 control electrode and 1 earth electrode
Sensitive elements: 2 electrode plates made of stainless steel 316 Ti, each with 24 mm diameter
Housing: PP and cast resin
Electrical connection: screw-type / crimp connection
Temperature range: -20 … +60°C
Cable break monitoring: with Cable break monitoring
Max. length of connecting cable between last electrode and electrode relay: 1,000 m
Dimension: 64 mm (diameter) x 30 mm (length)
