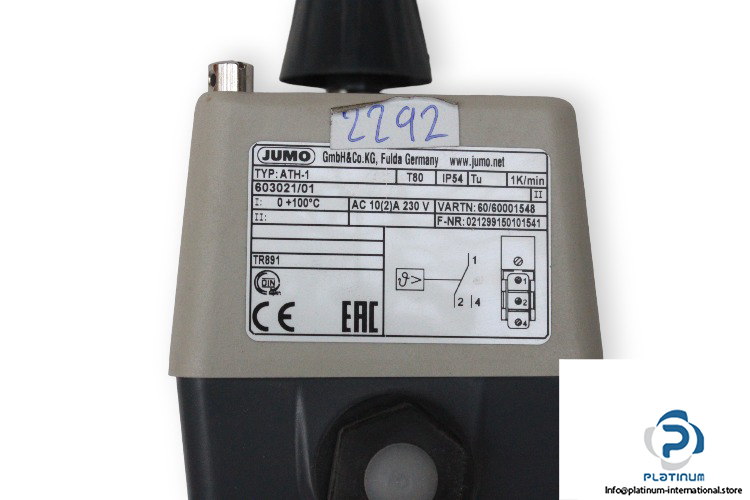

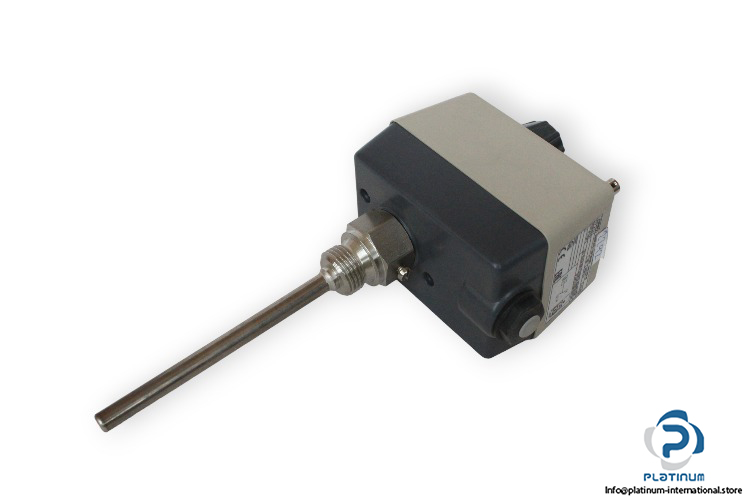

Jumo ATH-1 Surface-Mounted Single Thermostat

Manufacture: Jumo
Type: Surface-Mounted Single Thermostat
Model: ATH-1
Part No.: 603021/01

Special features:
• Version according to DIN EN 14597
• Pressure Equipment Directive 2014/68/EU
• Sturdy housing (protection type IP54)
• Microswitch
• Self-monitoring (STB/STW [STB]) in the event of a pressure drop
• Safety cut-out (STB/STW [STB])
Switching function: TR

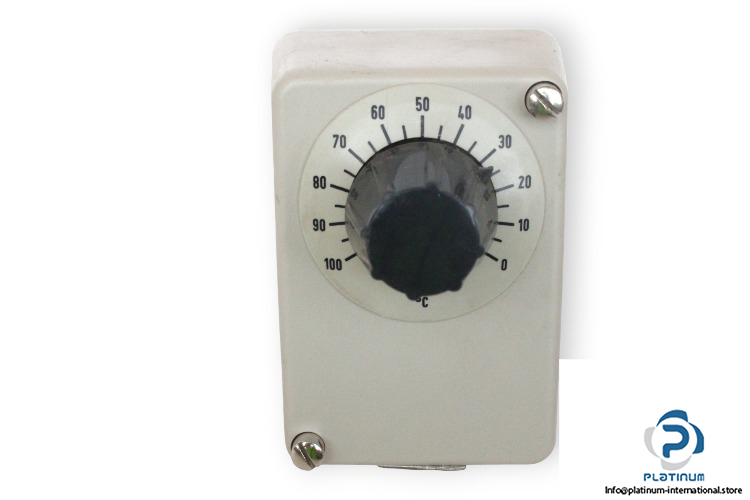

Adjustment Range: 0 … 100°C
Max. admissible probe temperature: 150°C
Capillary length: Max. 5000 mm
Length of the temperature probe Probe Ø “d” = 6 mm^a:  max. Ø6 (135 mm) Ø8 (90 mm)
Contact Rating: 10(2) A (230 VAC)
Contacts: change over contact
Protection Level: IP54
