Control System & PLCs Braking Resistors

KEB 18BR226-6203 Braking Resistor

Name: KEB 18BR226-6203 BRAKING RESISTOR
SKU: 1095722
Availability: LimitedAvailability

keb-18br226-6203-braking-resistor(new)-1

keb-18br226-6203-braking-resistor(new)-2

keb-18br226-6203-braking-resistor(new)-3

keb-18br226-6203-braking-resistor(new)-4

Neu

Auf Lager2 EinheitenVersandbereit

Bremswiderstand KEB 18BR.226-6203 externer Bremswiderstand für VFD-Antriebe mit 1,7 kW Dauerleistung, 29 kW Spitzenlast, 20,0 Ohm Widerstand und 800 VDC Maximalspannung.

Hersteller

KEB

SKU

1095722

Kategorie

Braking Resistors

Zustand

Neu

18BR.226-6203 20 800 Braking Drive External Frequency Industrial Inverter KEB motor Ohm Resistor VDC VFD

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

KEB 18BR.226-6203 Braking Resistor

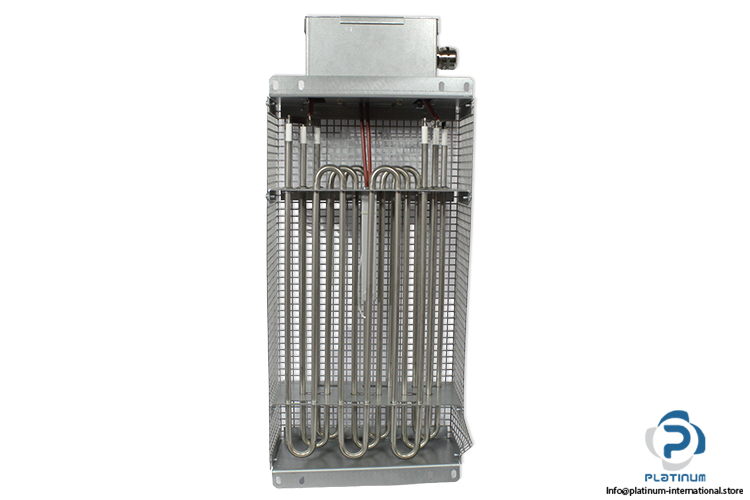

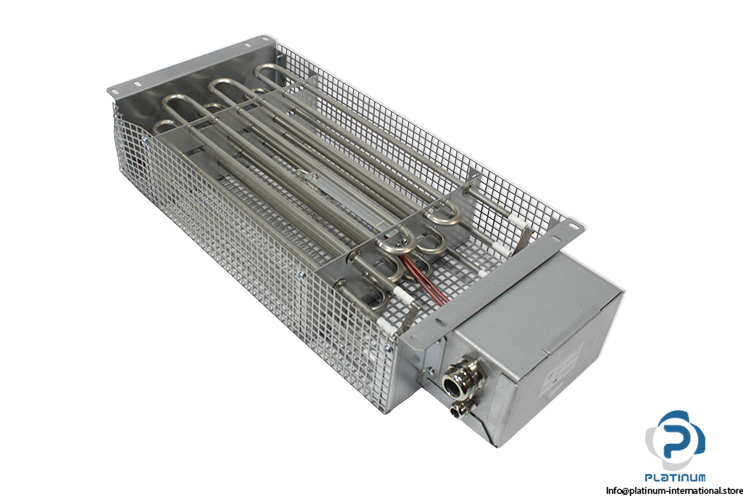

The KEB 18BR.226-6203 is an external braking resistor designed for frequency inverter (VFD) drives. It provides efficient dissipation of regenerative energy, ensuring controlled deceleration and protecting drive systems during dynamic braking operations.

Manufacturer: KEB

Type: Braking Resistor

Model: 18BR.226-6203

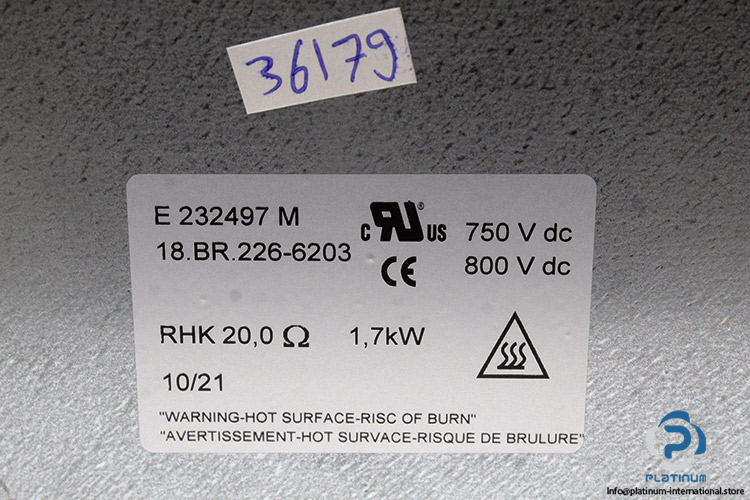

Code: E 232497 M

Application	External Braking Resistor For Frequency Inverter (VFD) Drives
Power Rating (Continuous)	1.7 kW
Peak Load (Max. For Specified ON Period)	29 kW
Resistance	20.0 Ohm
Switch Type	NC Contact
Maximum Voltage	800 VDC
Ed	6 s
Temperature Range	-40 / 45 °C
Protection Class	IP 20
Dimensions	625 x 270 x 119.5 mm
