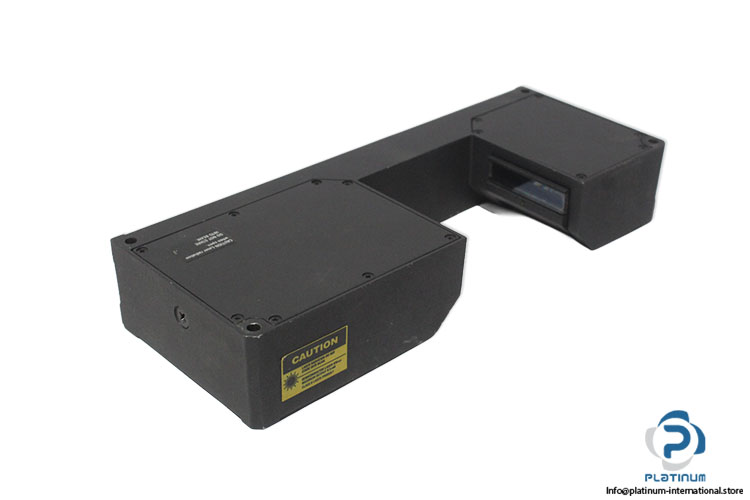

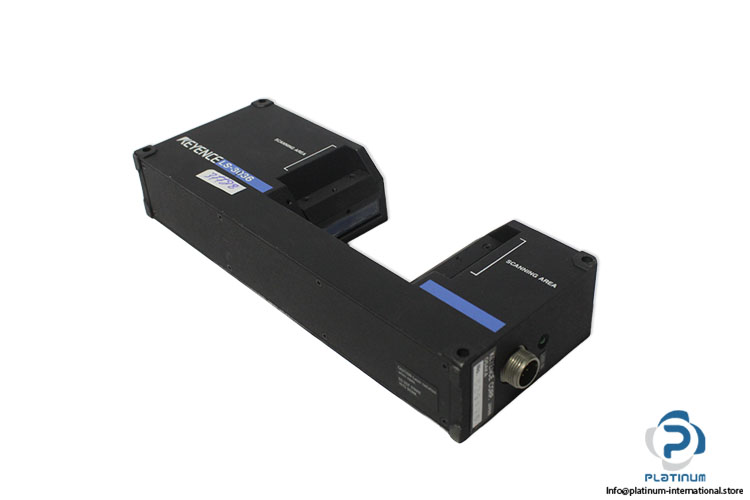

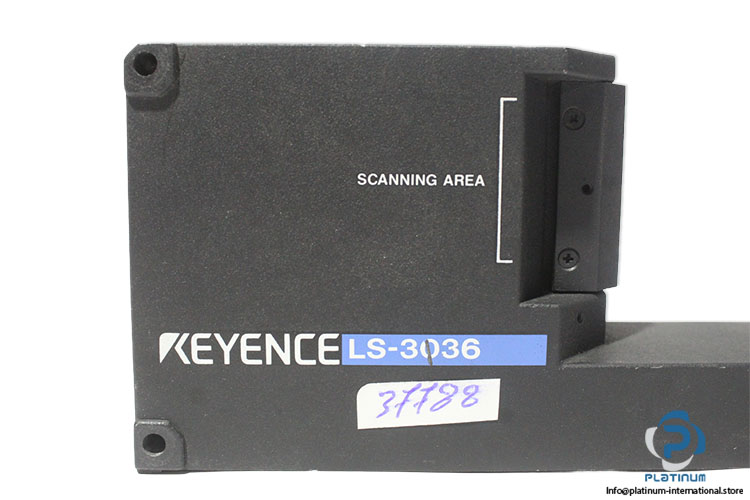

Keyence LS-3036 Laser Sensor Head
Neu
Auf Lager2 EinheitenVersandbereit
Laser Sensor Head The Keyence LS-3036 is a high-precision laser sensor head designed for non-contact measurement and dimensional inspection. It offers outstanding repeatability, fast scanning performance, and compatibility with LS-3100 and LS-3100D controllers for demanding industrial automation applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

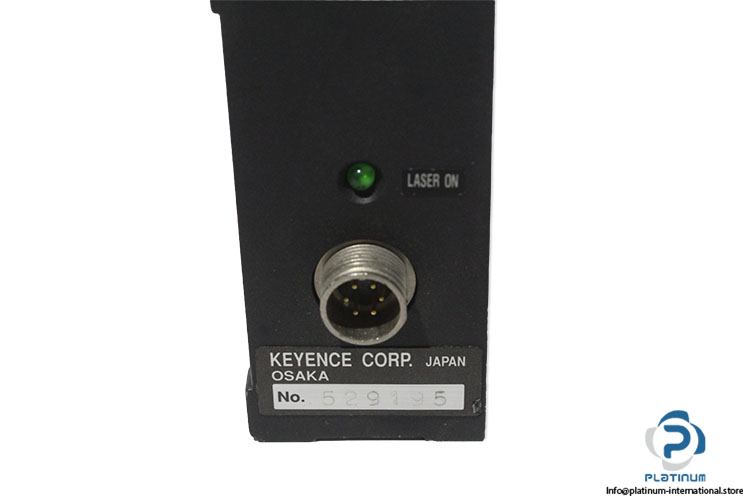

| Part No. | 529195 |
| Applicable controller | LS-3100/LS-3100D |
| Scanning head type | Single-body |
| Power voltage | 85 to 264 VAC, 50/60 Hz |
| Power consumption | 40 VA max. |
| Measurement range | 0.3 to 30 mm |
| Smallest detectable object | 0.3 mm |
| Transmitter/receiver distance | 60 mm |
| Repeatability | ±0.3 µm (number of averaging measurements: 512) |
| Measurement accuracy | ±2 µm max.x2 |
| Laser scan rate | 400 scans/s |
| Laser scan velocity | 63 m/s |
| Laser scan range | Approx. 65 mm |
| Terminal block I/O Analogue voltage | ±6 V, Output impedance: 0 ? |
| Control output | Relay output: 3PST-NO contact, 250 VAC, 2 A (resistive load) |
| Control input | Hold synchronous, LASER REMOTE, PROGRAM SELECT (Program Nos. 1 to 5) Non-voltage input (contact/solid state) |
| Ambient temperature | 0 to +40 °C |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1098171 |
| Weight | 0,74 |
