Kistler 4701A10B Measuring Amplifier
Neu
Auf Lager1 EinheitVersandbereit
Messverstärker KISTLER 4701A10B Messverstärker für Dehnungsmessstreifen und resistive Wegsensoren mit 1 mV/V Eingang, 0“-10 V Ausgang und 24 V DC Anregung.
0-10V4701A10BAmplifierConditioningDeviceGaugeIndustrialKistlerMeasurementMeasuringModuleOutputResistiveSensorSignalStrainTravel
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

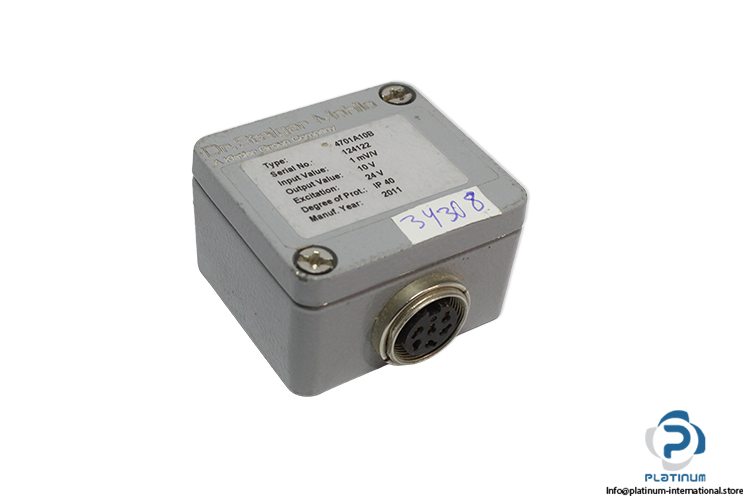

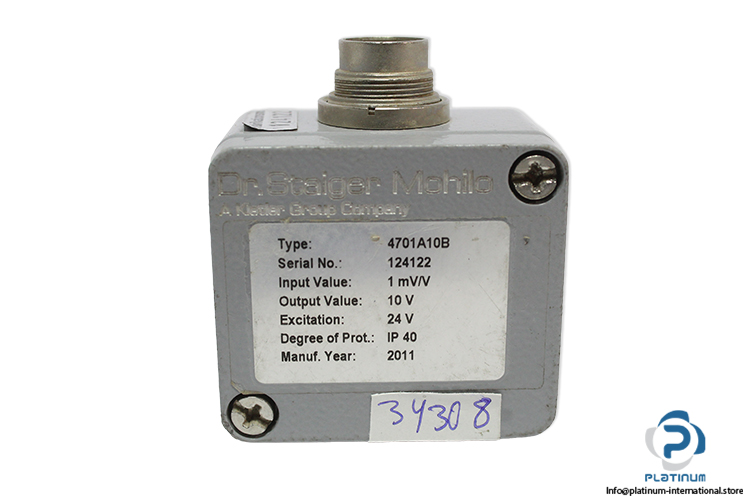

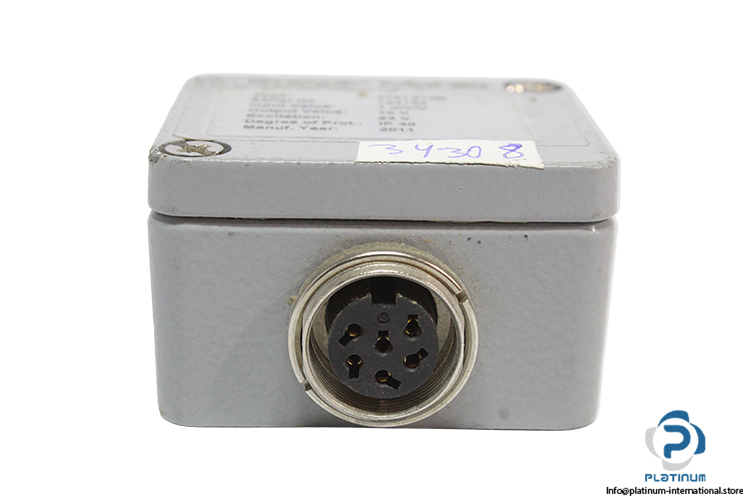

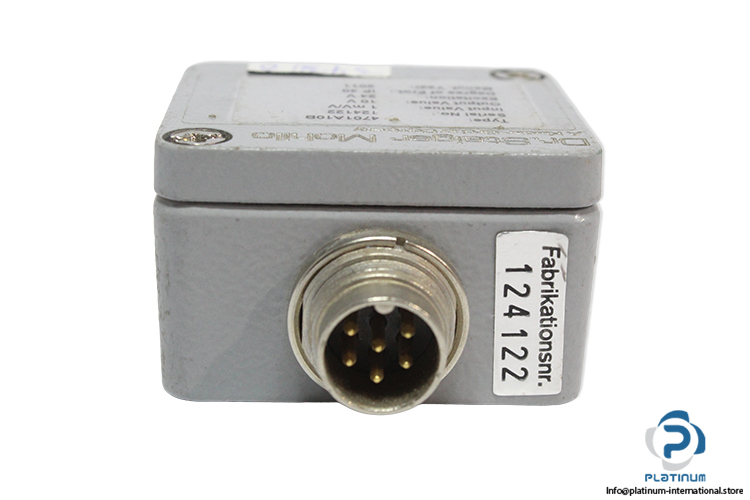

KISTLER 4701A10B Measuring Amplifier
The KISTLER 4701A10B measuring amplifier is designed for precise signal conditioning of strain gauge sensors and resistive travel sensors. It provides stable excitation voltage and accurate signal conversion, ensuring reliable measurement performance in industrial environments.
Manufacturer: KISTLER (Dr. Staiger Mohilo)
Type: Measuring Amplifier
Model: 4701A10B
Serial No.: 124122
| Application | For Strain Gauge Sensors And Resistive Travel Sensors |
| Input Signal | 1 mV/V |
| Output Signal | 0 “ 10 V |
| Excitation Voltage | 24 V DC |
| Protection Class | IP40 |
| Operating Temperature Range | 0 ... 50 °C |
| Version | Plug Connectors Strain Gauge Sensor (IP40) |
| Connection | 6-Pin / 6-Pin |
| Options | Calibration Together With Sensor Or Adjustment Of Customized Sensitivity |
