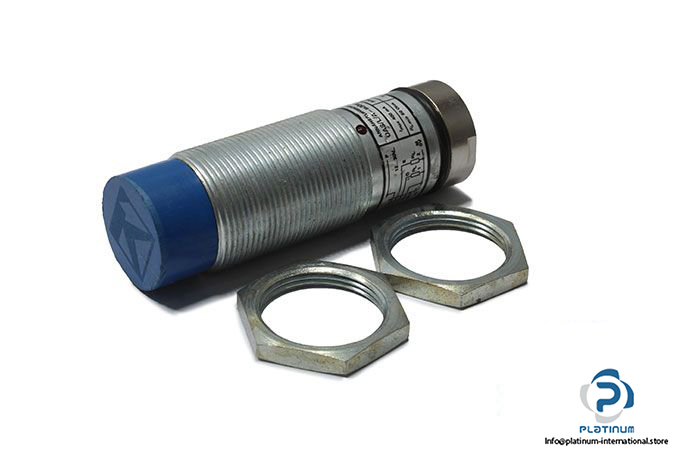

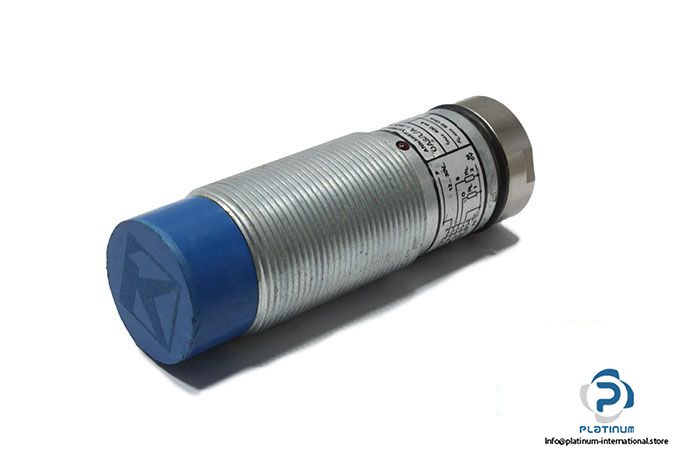

Klaschka OAS/L/A-M30RG-II+IV/E1SK Inductive Sensor

Manufacturer: KLASCHKA

Type: Inductive Sensor

Model: OAS/L/A-M30RG-II+IV/E1SK

Sensing Range: 15 mm

Real Sensing Range: 15 ± 10% mm

Operating Voltage: 12 … 30 V DC

Operating Current: 400 mA

Switching Output: Normally Open + Normally Closed

Electrical Design: PNP

Mounting: Non-Flush Mountable

Housing: Threaded type

Protection Class: II

Enclosure rating: IP67

Diameter of Connection: 16.5 mm Connector

Diameter, Housing Length: 30, 95 mm

Supplied Accessories: 2 lock nuts

Ambient Temperature: -25 … 80 °C

Material: Brass white bronze coated; sensing face:PBT

Weight: 0.22 kg
