Klockner Moeller DIL 00L-62 Contactor Relay
Neu
Auf Lager1 EinheitVersandbereit
39,99$
Schützrelais KLOCKNER MOELLER Schützrelais mit 8-poliger Kontaktkonfiguration, entwickelt für industrielle Motorsteuerung und elektrische Schaltanwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

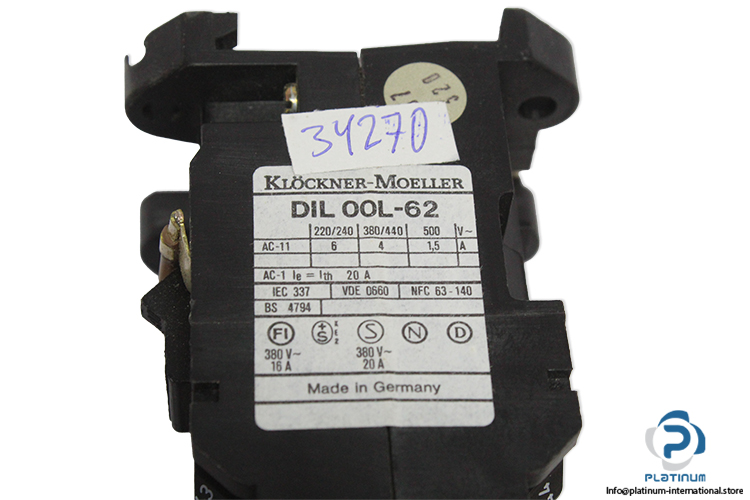

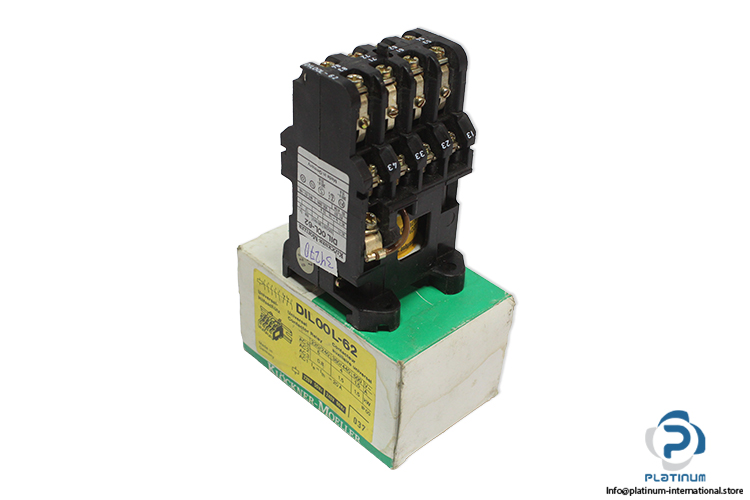

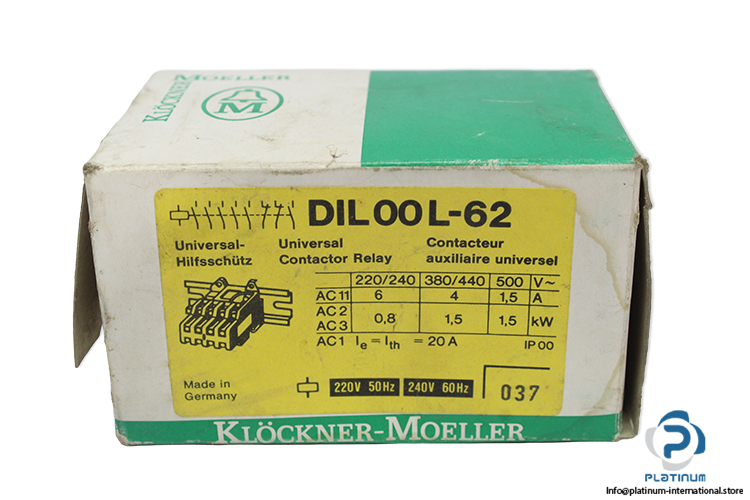

KLOCKNER MOELLER DIL00L-62 Contactor Relay
The KLOCKNER MOELLER DIL00L62 contactor relay is designed for reliable switching and control of electrical circuits in industrial applications. It offers stable performance, high electrical endurance, and suitability for motor control and power switching systems.
Manufacturer: KLOCKNER MOELLER
Type: Contactor Relay
Model: DIL 00L-62
Power AC-3:

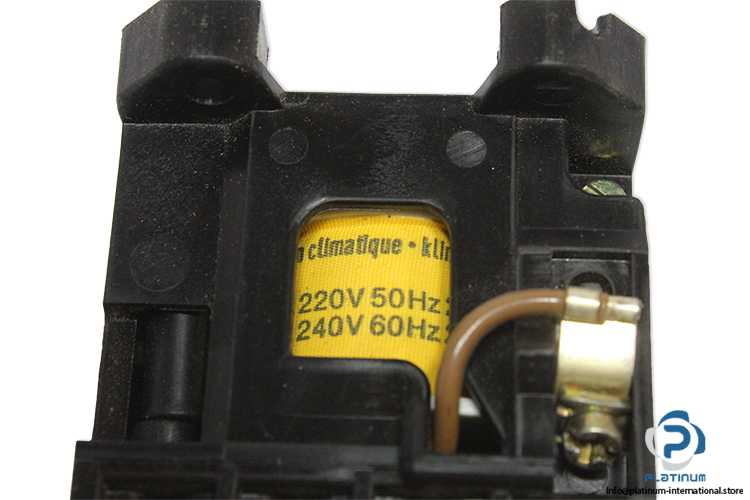

| Coil Voltage | 220 V AC 50 Hz / 240 V AC 60 Hz |
| Rated Voltage | 380 V AC |
| Rated Thermal Current | 20 A |
| Rated Impulse Voltage (Uimp) | 8 kV |
| 220 / 240 V AC | 0.8 kW |
| 380 / 440 V AC | 1.5 kW |
| 500 V AC | 1.5 kW |

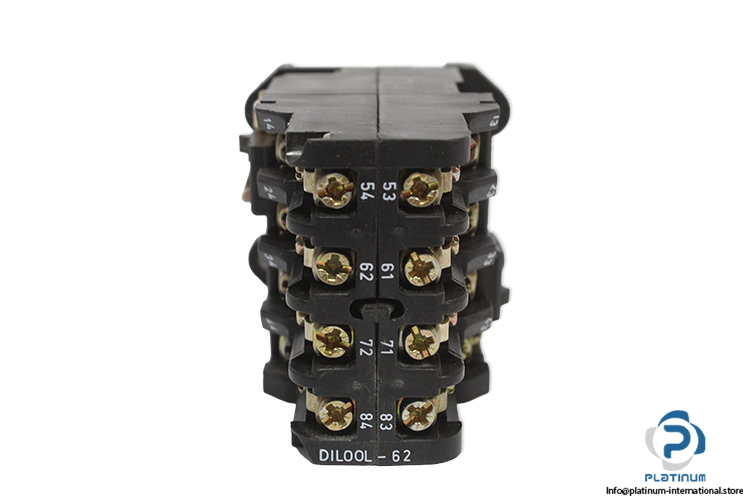

| Contact Configuration | 8-Pole (6 Normally Open + 2 Normally Closed) |
| Protection Class | IP00 |
