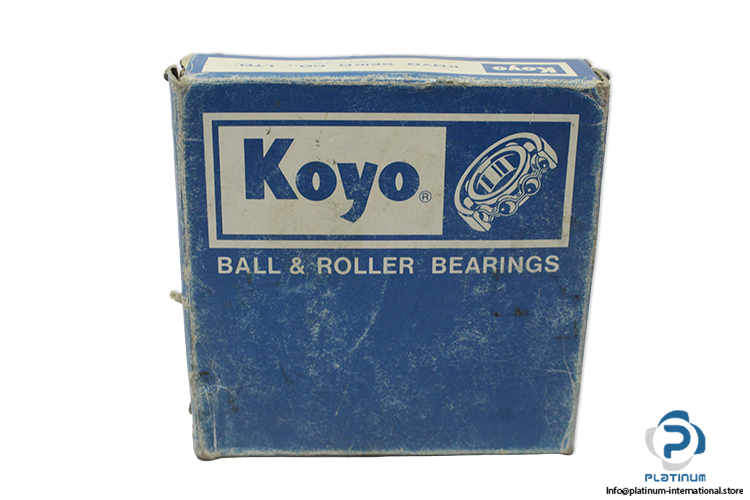

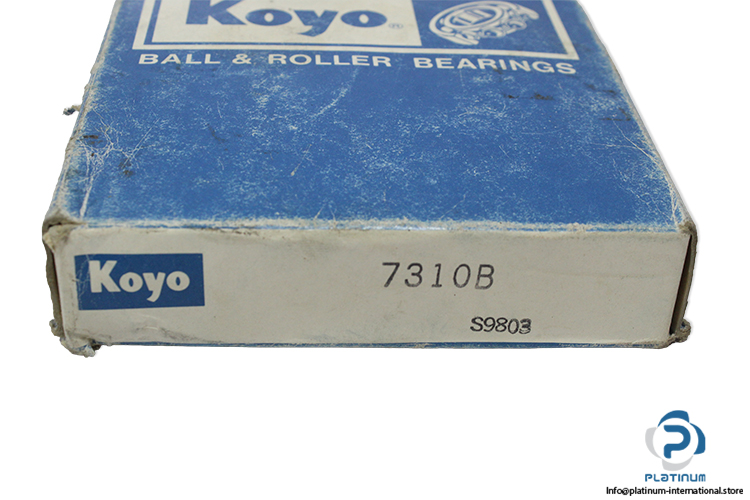

Koyo 7310 B Angular Contact Ball Bearing
Neu
Auf Lager1 EinheitVersandbereit
Kugellager mit schräger Kontaktstelle Koyo 7310B, einreihiges Kugellager mit schräger Kontaktstelle und 40-Grad-Kontaktwinkel, ausgelegt für kombinierte radiale und axiale Belastungsanwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Koyo 7310B Single Row Angular Contact Ball Bearing
A high-quality single row angular contact ball bearing manufactured by Koyo, designed to support combined radial and axial loads with high precision and reliability. This bearing features a 40-degree contact angle and a pressed steel cage, making it suitable for demanding industrial applications requiring stable operation at high speeds.
Manufacturer: Koyo
Type: Single Row Angular Contact Ball Bearing
Model: 7310B
Basic Load Ratings
Speed Ratings
| Bore Diameter (d) | 50 mm |
| Outer Diameter (D) | 110 mm |
| Width (B) | 27 mm |
| Contact Angle | 40 degrees |
| Dynamic Load Rating (Cr) | 85.3 kN |
| Static Load Rating (C0r) | 48.3 kN |
| Fatigue Load Limit, Radial | 3.15 kN |
| Limiting Speed (Grease Lubrication) | 4400 rpm |
| Limiting Speed (Oil Lubrication) | 5800 rpm |
| Cage | Pressed Steel Cage |
