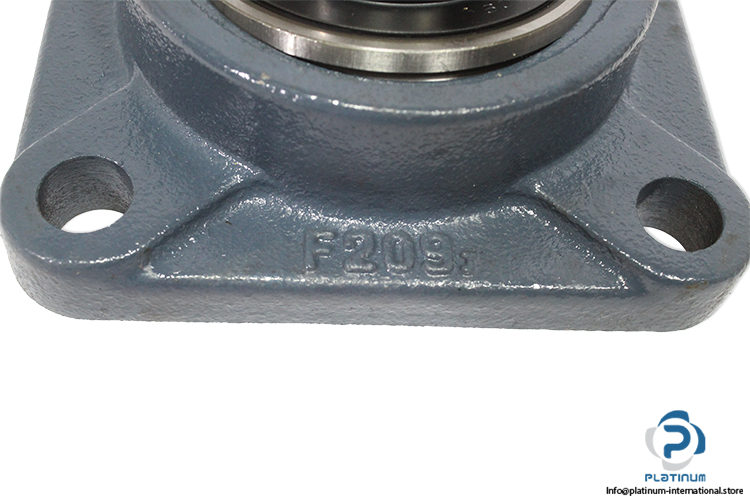

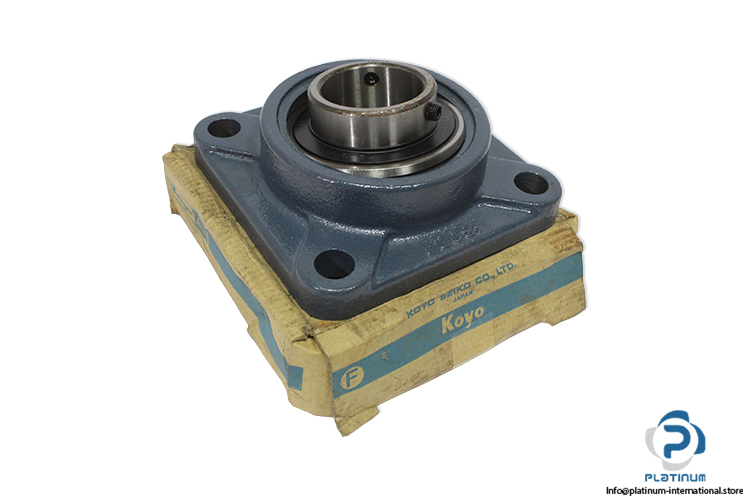

Koyo UCF209 J Four-Bolt Square Flange Unit
Neu
Auf Lager1 EinheitVersandbereit
Flange Bearing Unit Koyo UCF209J Four-Bolt Square Flange Unit features a 45 mm bore with cast iron housing and UC209 bearing, offering high load capacity and secure mounting for industrial applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Housing No. | F209 |

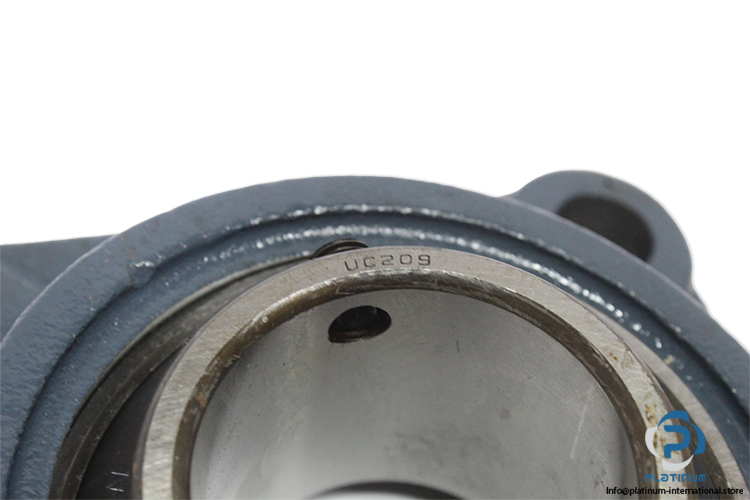

| Bearing No. | UC209 |
| Bore Diameter d | 45 mm |
| Overall Length L | 137 mm |
| Pitch diameter of attachment bolts J | 105 mm |
| Length of attachment bolt hole N | 16 mm |
| Width of inner ring B | 49.2 mm |
| Overall width A0 | 52.2 mm |
| Bolt size | M14 |
| Dynamic Cr | 34.1 kN |
| Static C0r | 21.3 kN |
| Fatigue load limit | 0.968 kN |
| Bore Type | Cylindrical |
| Material, housing | Cast iron |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097095 |
| Weight | 2,1 |
