KPM RK016P0050 Compact Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
COMPACT CYLINDER
Double-acting pneumatic compact cylinder by KPM with 50 mm stroke and 16 mm piston, featuring anodized aluminum body, chrome rod, and magnetic piston for precise actuation in tight automation setups.1650ActuatorAluminumAnodizedAutomationCompactCylinderdouble-actingFemaleIndustrialKPMMagneticmmPistonPneumaticRK016P0050StrokeThread
Neu
Auf Lager
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

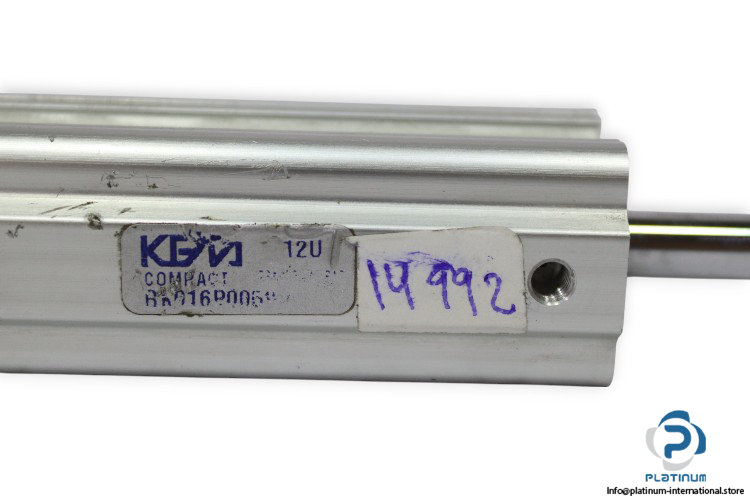

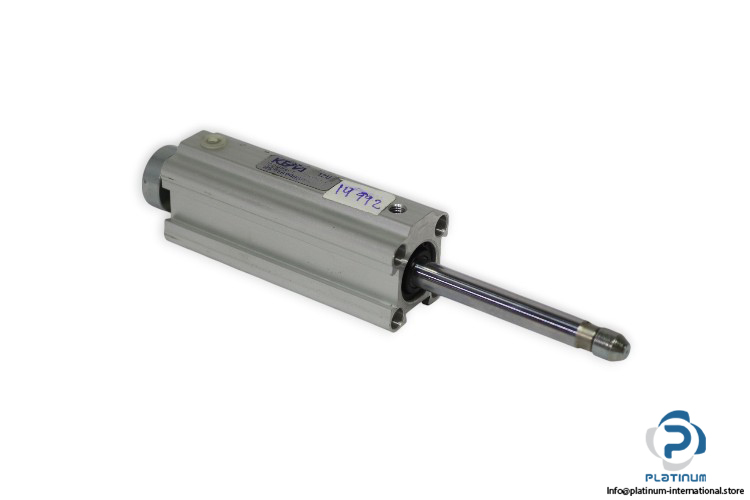

KPM RK016P0050 COMPACT CYLINDER
The RK016P0050 compact cylinder from KPM is a double-acting pneumatic actuator engineered for precision motion in tight industrial spaces. It features a durable anodized aluminum body, chrome-plated steel rod, and integrated magnet for position sensing, making it ideal for automation environments requiring accuracy and reliability.
Manufacturer: KPM
Type: Compact Cylinder
Model: RK016P0050
Code: 12U
Materials
| Connection | 5 mm |
| Stroke Length | 50 mm |
| Piston Diameter | 16 mm |
| Piston Rod End | Female thread, Double Rod |
| Operating Pressure | 2 / 10 bar |
| Mode of Operation | Double-acting |
| Magnet | With Magnet |
| Temperature Range | -10 to 60 °C |
| Tube Material | Anodized Aluminum |
| Rod Material | Chrome Plated Steel |
| End Caps Material | Polyacrylamide, Aluminum |
