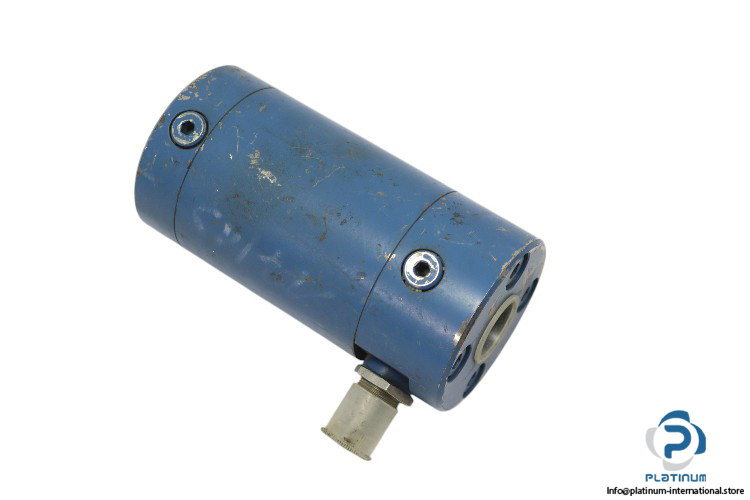

Kral OMG 20.010033 Flowmeter
Durchflussmesser Der Kral OMG20.010033 Durchflussmesser verfügt über einen Nenn-Durchmesser von 20 mm, eine Durchflussrate von 0,5 bis 30 l/min und einen maximalen Druck von 250 bar. Entwickelt für hochpräzise Messungen in Industriesystemen.
Kral OMG20.010033 Flowmeter
The Kral OMG20.010033 Flowmeter is a high-precision measuring instrument designed for accurate flow rate monitoring in industrial applications. With a compact design and robust construction, this flowmeter operates efficiently under high pressure and a wide range of temperatures, making it suitable for various fluid viscosity levels.
Manufacturer: Kral
Type: Flowmeter

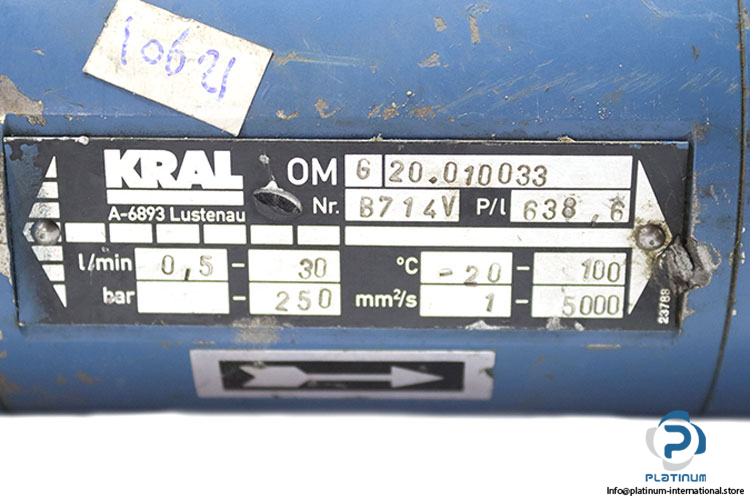

Model: OMG20.010033
Ref. No.: B714V
Engineered for precision and durability, the Kral OMG20.010033 flowmeter ensures reliable measurement performance in demanding environments, including hydraulic and lubrication systems.
| Nominal Diameter | 20 mm |
| Total Length with DIN Flange | 185 mm |
| Flow Rate | 0.5 to 30 l/min (30 nominal) |
| Max. Pressure | 250 bar |
| Frequency | 320 to 1280 Hz |
| Temperature Range | -20 to 100°C |
| Viscosity Range | 1 to 5000 mm²/s |
