KRAUS & NAIMER KG32B.T103/04E MAIN SWITCH

Name: KRAUS &amp; NAIMER KG32B.T103/04E MAIN SWITCH
SKU: 1086847
Availability: LimitedAvailability

kraus_naimer-KG32B.T103_04E-main-switch-new

kraus_naimer-KG32B.T103_04E-main-switch-new-1

kraus_naimer-KG32B.T103_04E-main-switch-new-2

kraus_naimer-KG32B.T103_04E-main-switch-new-3

Neu

Auf Lager9 EinheitenVersandbereit

MAIN SWITCH

Kraus & Naimer KG32B.T103/04E main switch from the KG32 series with 30 A current, 690 V insulation voltage, multiple voltage ratings, 1-Phase and 3-Phase motor ratings, and IP-rated durable design.

Hersteller

KRAUS & NAIMER

SKU

1086847

Kategorie

Industrial Electrical Switch

Zustand

Neu

+GF+1-phase 3-phase.30A 690V DE09X02024/300 Industrial KG32 KG32B.T103/04E Kraus Main motor Naimer S1 Series Switch

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

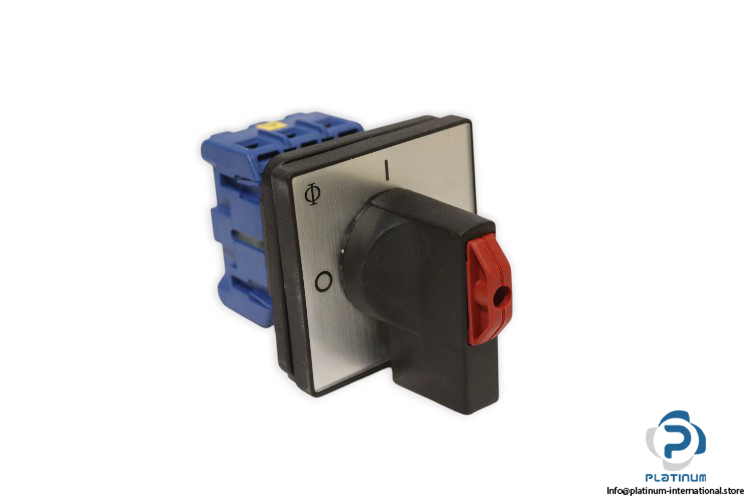

Kraus & Naimer KG32B.T103/04E Main Switch

The Kraus & Naimer KG32B.T103/04E is a reliable main switch from the KG32 series, engineered for safe isolation and robust operation in industrial electrical systems. With rigid silver contacts, screw terminals, and high current capacity, it ensures dependable performance across a wide voltage and motor rating range.

Manufacturer: Kraus & Naimer

Type: Main Switch

Model: KG32B.T103/04E

Part No.: DE09X02024/300, 09/09

Serial No.: 0471.103.004.020 / 9004257 011155

Series: KG32

Type Size: S1

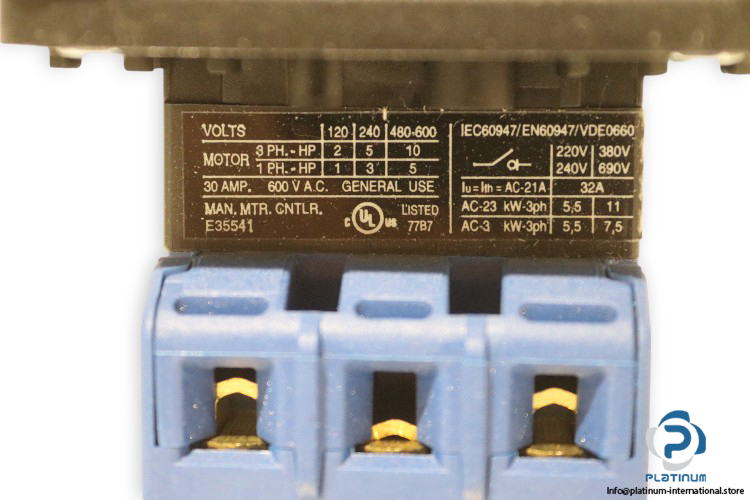

Motor Ratings:

Classification Contact	Rigid contact bridge
Classification Contact Material	Silver
Classification Terminal	Screw terminal
Rated Insulation Voltage (Ui)	690 V
Rated Current	30 A @ 600 V AC
Voltage Ratings	220 V / 240 V / 380 V / 690 V
1-Phase	120 V, 1 HP / 240 V, 3 HP / 480“600 V, 5 HP
3-Phase	120 V, 2 HP / 240 V, 5 HP / 480“600 V, 10 HP
Thermal Current	32 A (AC-21A)
Power	5.5 / 11 / 7.5 kW
