Krohne CH-V-41051 Flow Meter
Neu
Auf Lager1 EinheitVersandbereit
Variable Area Flow Meter KROHNE CH-V-41051 mit PTFE-Messrohr, maximalem Bereich von 900 l/h, Druckbewertung von 4 bar und Edelstahl AISI 316 Konstruktion für präzise Flüssigkeitsdurchflussmessung.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

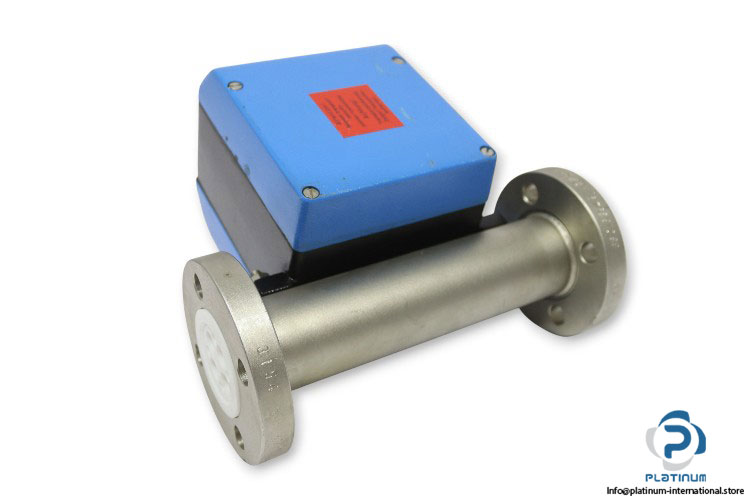

KROHNE CH-V-41051 Variable Area Flow Meter
The KROHNE CH-V-41051 is a precision variable area flow meter designed for accurate flow measurement of low-viscosity liquids. Built with a PTFE measuring tube and stainless steel components, it ensures reliable performance under controlled pressure and temperature conditions.
Manufacturer: KROHNE
Type: Variable Area Flow Meter
Model: CH-V-41051

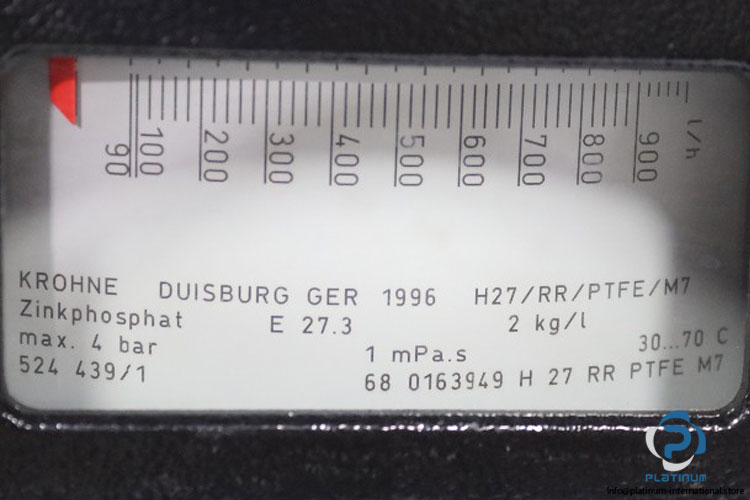

Code: 88 0163949, H27RRPTFE M7, 524 439/1

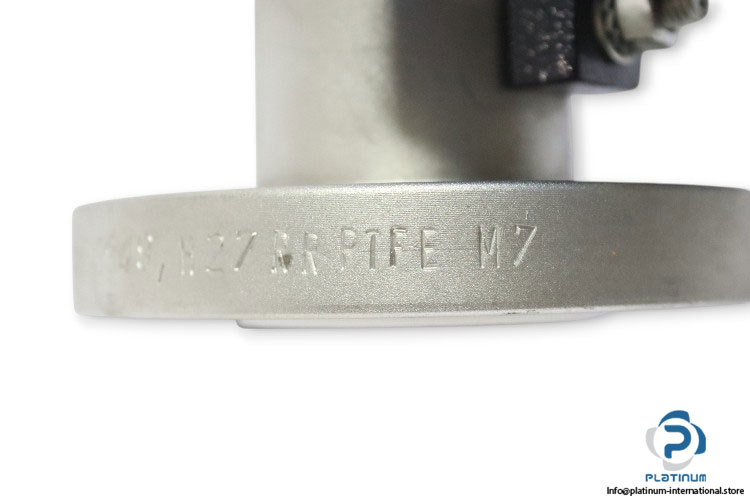

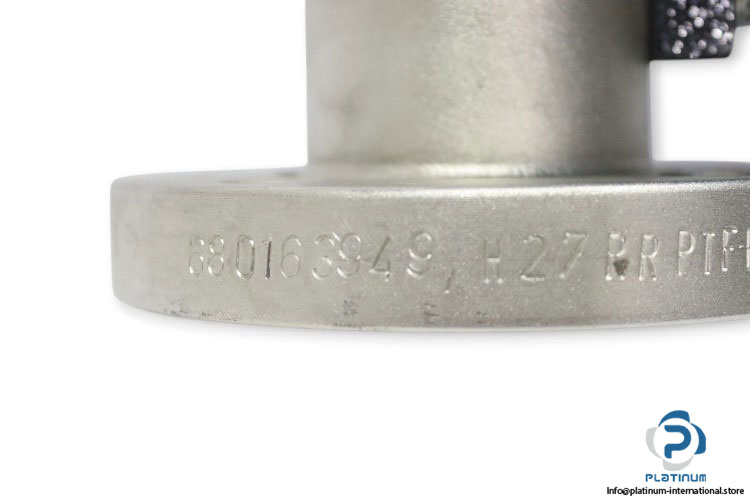

Additional Code: 68 0163949 H27RRPTFE M7
| Maximum Measuring Range | 900 l/h |
| Medium Density | 2 kg/l |
| Viscosity | 1 mPa·s |
| Maximum Pressure | 4 bar |
| Temperature Range | 30 to 70 °C |
| Measuring Tube | PTFE |
| Float System | M7 |
| Scale Factor | E : 27.3 |

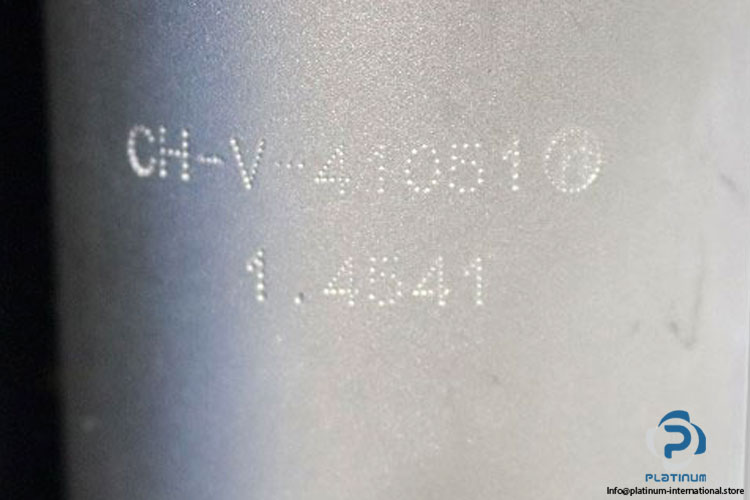

| Material | 1.4341 (Stainless Steel Grade “ AISI 316) |
