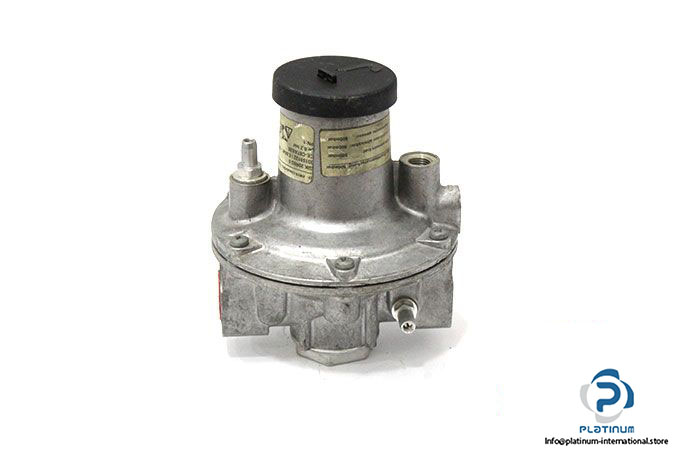

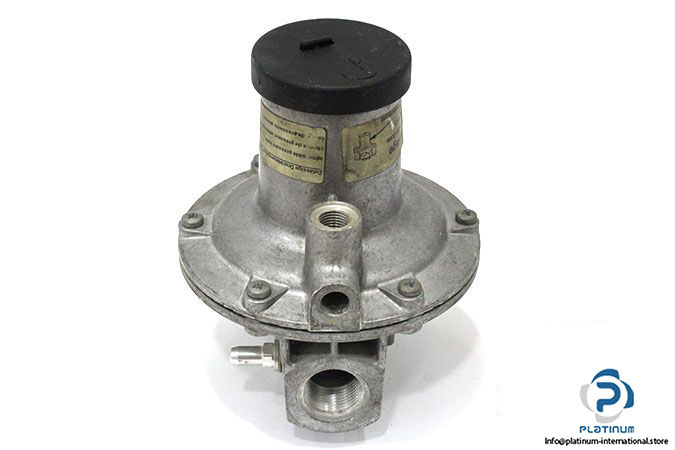

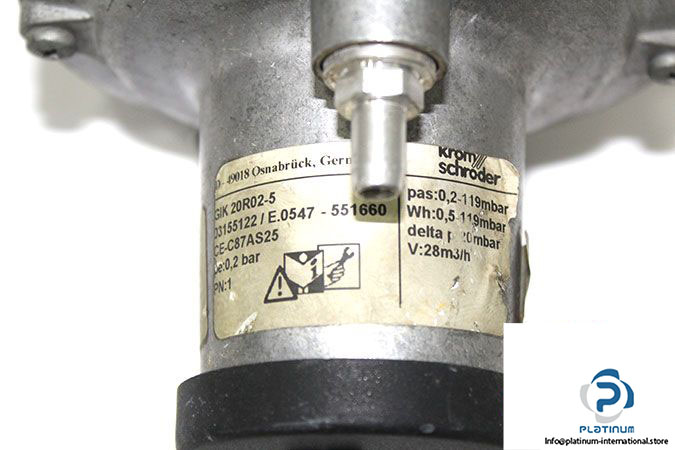

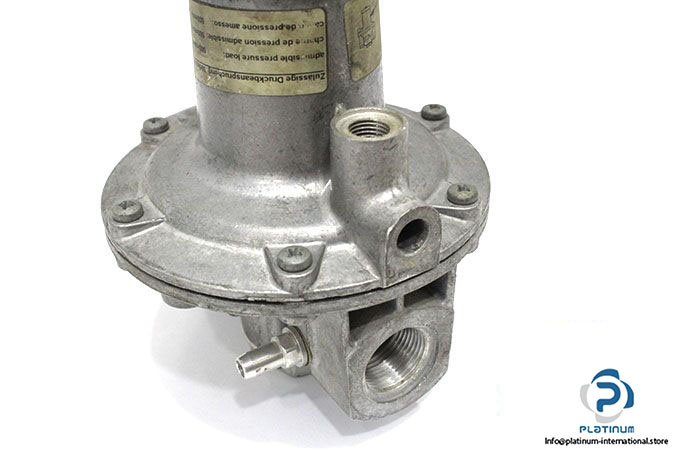

Kromschroeder GIK 20R02-5 Air/Gas Ratio Control

Manufacturer: Honeywell Kromschroder ‎

Type: Air/Gas Ratio Control

Model: GIK 20R02-5‎



Air/gas ratio controls GIK with inlet pressure compensation diaphragm and zero shut-off serve to maintain a constant gas/air ratio and to control the gas pressure.

Medium: natural gas, town gas, LPG (gaseous) and biologically produced methane (max. 0.02 %-byvol. H2S), air

Type of connection: R p 1 to ISO 7-1

Size: DN20; ¾”

Air control pressure: 0.5 … 120 mbar

Differential pressure between inlet area and outlet pressure: max. 100 mbar

Pressure max.: 200 mbar

Transmission ratio: 1:1.

Adjustment range: 0.5 … 119 mbar

Flow rate: 28 m³/h

Connection for control line: Rp ¼

Ambient temperature: -15 to +60°C

Weight: 1.16 kg
