Motion Control Rotary Encoders

Kubler 8.5800.1265.2048 Incremental Encoder

Name: KUBLER 8.5800.1265.2048 INCREMENTAL ENCODER
SKU: 966340
Price: 132.00 USD
Availability: LimitedAvailability

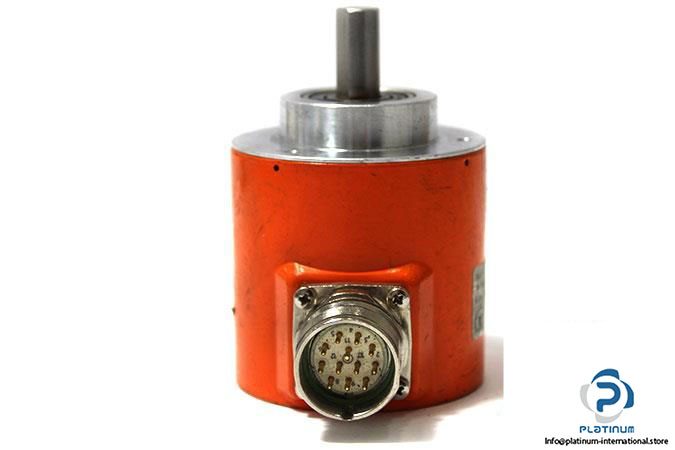

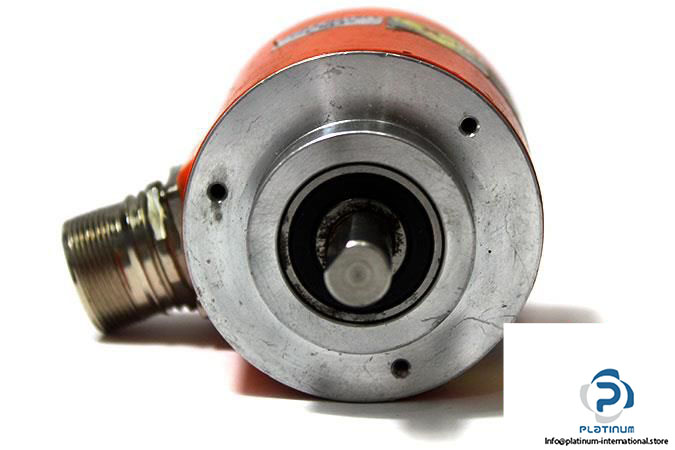

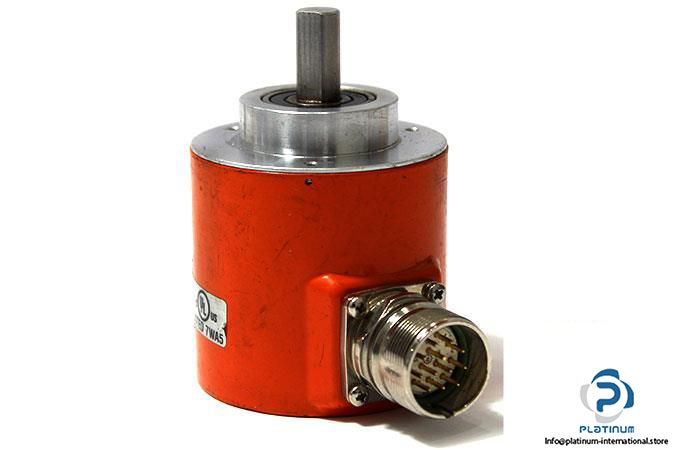

kubler-8580012652048-incremental-encoder3_675x450

kubler-8580012652048-incremental-encoder4_675x450

kubler-8580012652048-incremental-encoder5_675x450

kubler-8580012652048-incremental-encoder6_675x450

Gebraucht

Auf Anfrage verfügbar

132,00$

ABSOLUTER ENCODER Kubler 8.5800.1265.2048 Absoluter Encoder mit Vollwelle, 2048 PPR Auflösung, IP65 Schutz und 10“30 VDC Versorgung. Für industrielle Zuverlässigkeit und Präzision gebaut.

Hersteller

KUBLER

SKU

966340

Kategorie

Rotary Encoders

Zustand

Gebraucht

2048 8.5800.1265.2048 Absolute Automation Encoder High Industrial IP65 Kubler Output PPR Push-Pull Resolution Sensor shaft Solid

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

KUBLER 8.5800.1265.2048 ABSOLUTE ENCODER

The Kubler 8.5800.1265.2048 Absolute Encoder offers precise and reliable position feedback in industrial automation systems. Built for durability with an IP65 protection rating, this encoder features high-resolution output and robust connectivity for demanding environments.

Manufacturer: KUBLER

Type: Absolute Encoder

Model: 8.5800.1265.2048

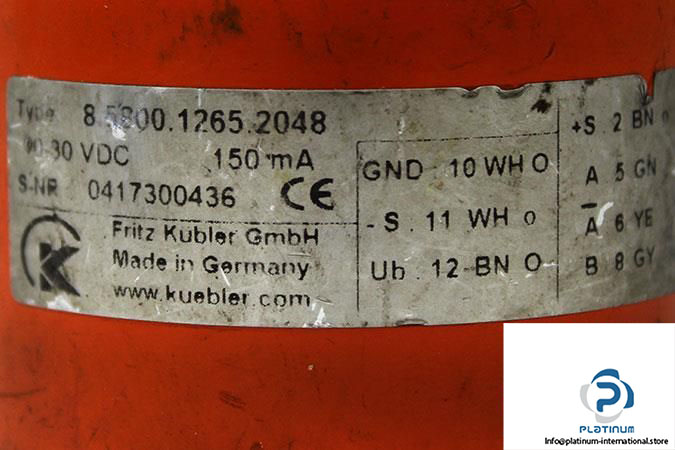

Serial No.: 0417300436

Flange Design	Clamping flange
Shaft Design	Solid shaft
Shaft Diameter	10 mm
Voltage Supply	10 / 30 VDC
Resolution	2048 Pulse per Revolution (PPR)
Output Circuit	Push-pull
Current Consumption	Max. 150 mA
Type of Connection	Plug connector, 12-pin, radial
Protection Class	IP65
Temperature Range	-20 / 85 °C
