Kuhnke KBC002T Solenoid Valve
Gebraucht
Auf Lager1 EinheitVersandbereit
SOLENOID VALVE
The Kuhnke KBC002T 3/2 NC solenoid valve with 764110214 coil provides precise air control up to 10 bar. Compact sub-based design with reliable 110V AC coil”ideal for industrial pneumatic systems.10110V3/2764110214ACAirbarBasecoilControlElectricalIndustrialKBC002TKuhnkeNCPneumaticsolenoidsubValveWith
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

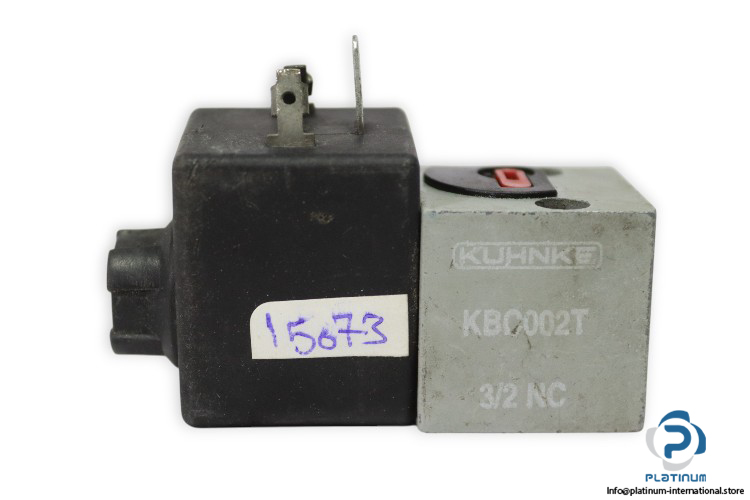

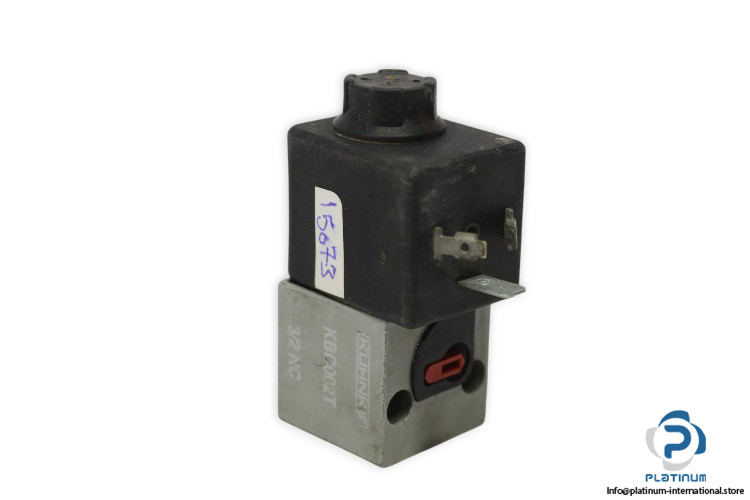

KUHNKE KBC002T SOLENOID VALVE WITH 764110214 COIL
The Kuhnke KBC002T is a compact and efficient electrically actuated solenoid valve, designed for air systems operating up to 10 bar. Integrated with the KUHNKE 764110214 coil, this 3/2 Normally Closed valve offers reliable performance in pneumatic automation systems requiring fast switching and long service life. Manufacturer: Kuhnke
Type: Solenoid Valve
Model: KBC002T
Attachment:
| Type of Actuation | Electrical |
| Fluid | Air |
| Function | 3/2 NC |
| Port Size | Sub based |
| Operating Pressure | Max. 10 bar |
| Coil Model | KUHNKE 764110214 Solenoid Coil |
| Part No. | 764110214 |
| Voltage | 110 V AC, 50/60 Hz |
| Power | 5/4.2 VA |
