Lapp AB-C3-10,0PUR-M8FA Sensor/Actuator-Cable
Neu
Auf Lager273 EinheitenVersandbereit
Sensor-/Aktor-Kabel LAPP AB-C3-10,0PUR-M8FA 10 m Sensor-/Aktor-Kabel mit 3-poligem Stecker, PUR-Mantel, IP65/IP67/IP68 Schutz und industrieller elektrischer Leistung.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
LAPP AB-C3-10,0PUR-M8FA Sensor/Actuator Cable

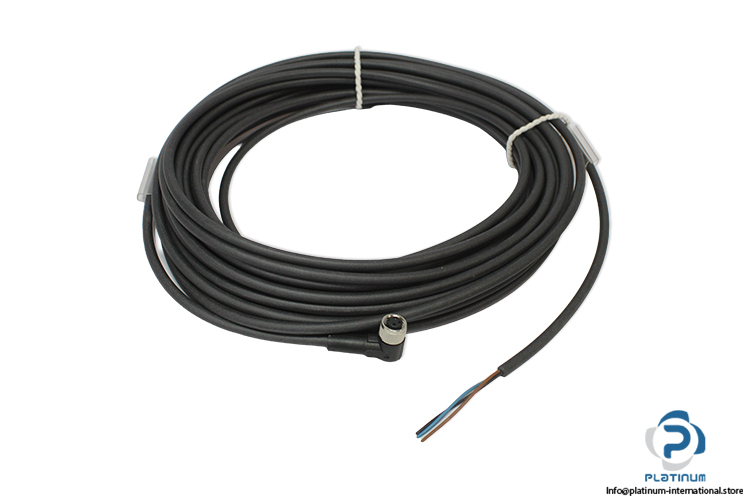

The LAPP AB-C3-10,0PUR-M8FA is a high-quality sensor/actuator cable designed for reliable signal and power transmission in industrial environments. Featuring a PUR outer sheath and angled M8 socket configuration, this cable ensures durability, flexibility, and secure connectivity under demanding operating conditions.
Manufacturer: LAPP
Type: Sensor/Actuator Cable
Model: AB-C3-10,0PUR-M8FA

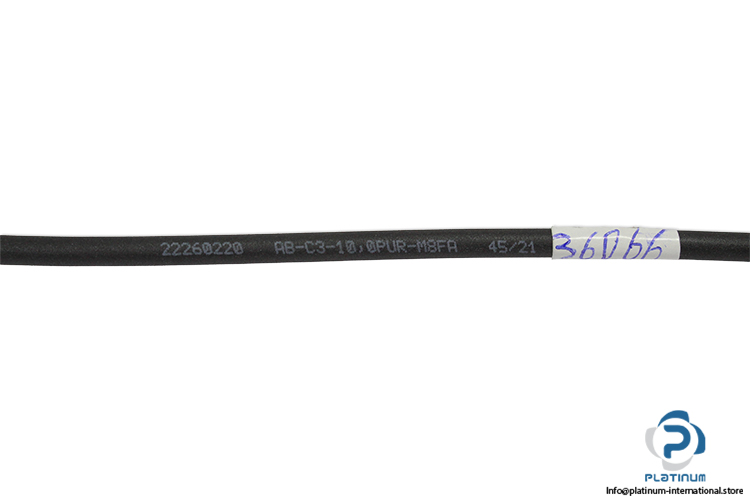

Item No.: 22260220
Electrical Data:
Mechanical Data:
Conductor & Cable Construction:
| Cable Length | 10 m |
| Connector 1 | 3-Pins, Male |
| Connector 2 | 3-Wire |
| Coding | A |
| Number Of Contacts | 3 |
| Protection Degree | IP65 / IP67 / IP68 |

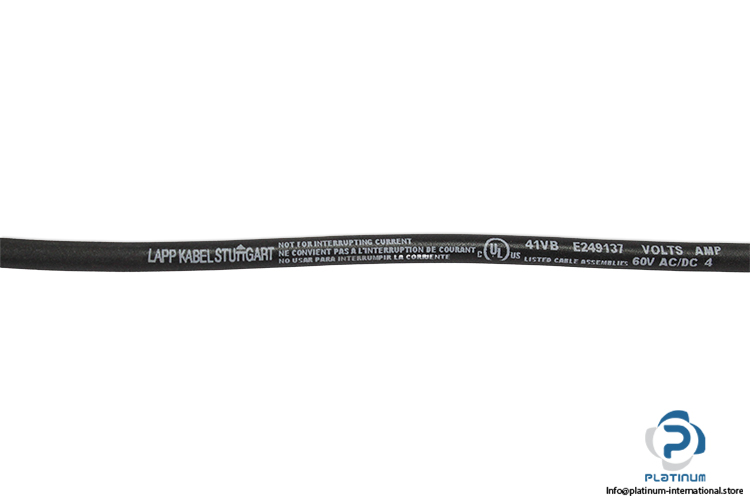

| Cable Information | 300 V AC/DC “ 4 A, UL / cULus Listed, E249137 |
| Rated Voltage | 60 V |
| Rated Current | 4 A |
| Insulation Resistance | 100 M„¦ |
| Contact Resistance | ‰¤ 5 m„¦ |
| Overvoltage Category | II |
| Pollution Degree | 3 |
| Tightening Torque | 0.2 Nm |
| Contact Carrier | TPU GF |
| Contact Carrier Inflammability Class (UL 94) | HB |
| Material, Contacts | CuSn |
| Signal Line Construction | 32 x 0.10 mm |
| Signal Line AWG | 24 |
| Conductor Material | Stranded Bare Copper Wire |
| Conductor Cross-Section | 0.25 mm² |
| Number Of Cores | 3 |

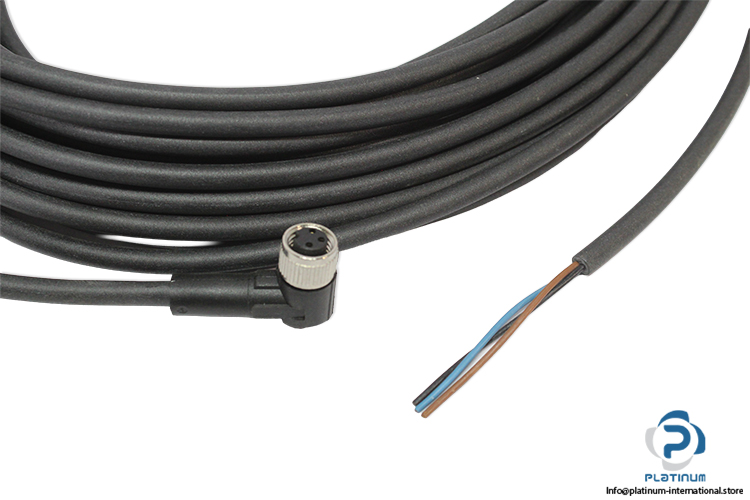

| Core Identification Code | Brown (1), Blue (3), Black (4) |
| Outer Diameter, Core Insulation | 1.17 mm |
| Core Insulation Material | PP |
| Outer Sheath | PUR |
| Outer Sheath Color | Black Similar To RAL 9005 |
| Outer Diameter, Cable | 4.4 mm |
| Ambient Temperature | -25 °C To +90 °C |
| Ambient Temperature, Fixed Installation | -40 °C To +80 °C |
