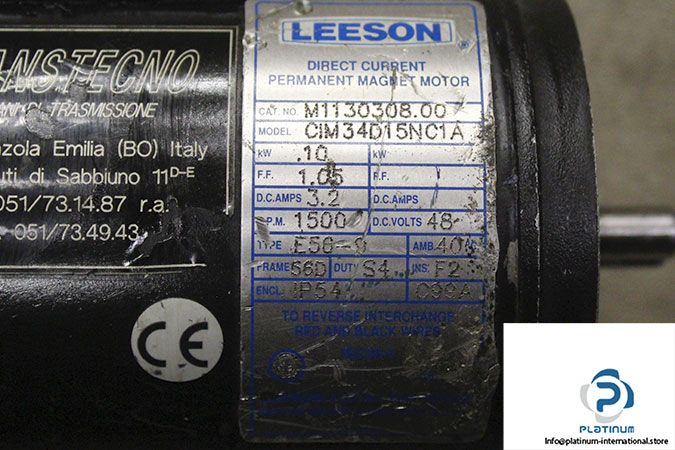

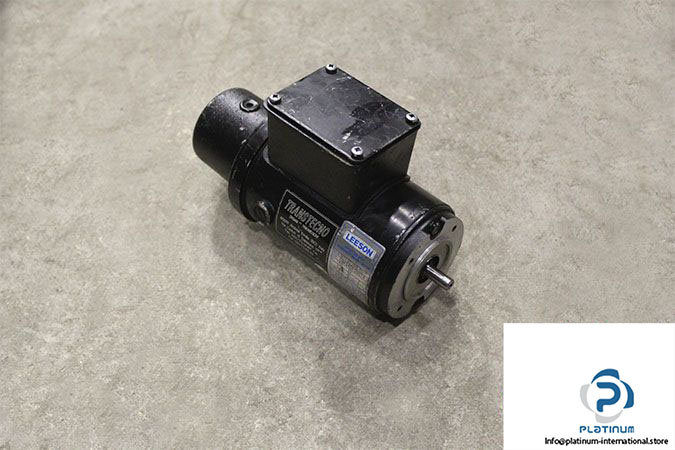

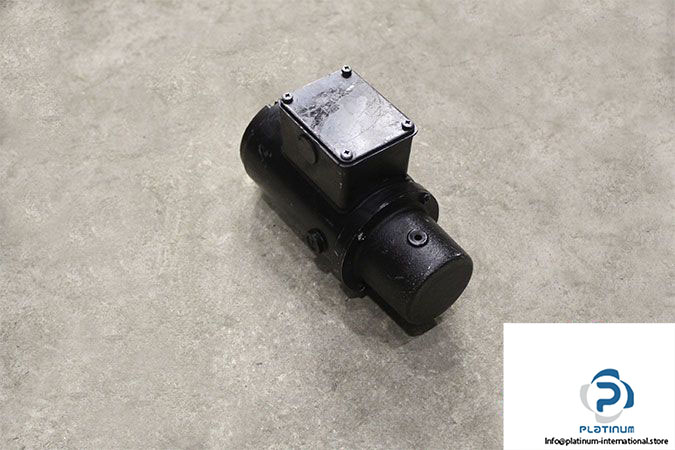

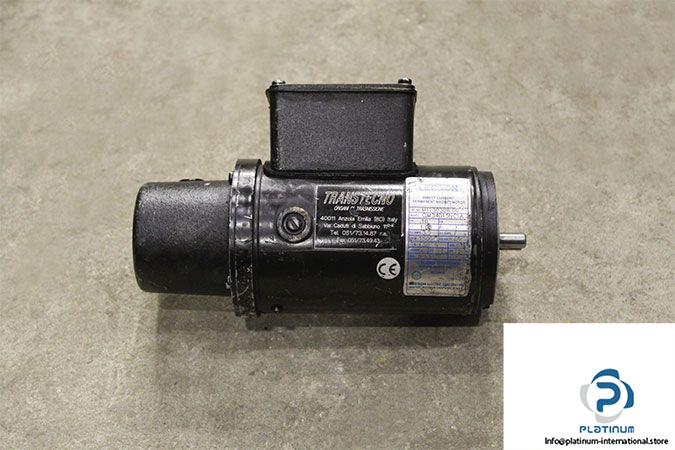

Leeson E56-9 Permanent Magnet DC Motor

Manufacturer: Leeson

Type: Permanent Magnets DC Motor

Model: E56-9

Part No.: CIM34D15NC1A

CAT No.: M1130308.00

Frame: 56D

Rated Voltage [VDC]: 48

Rated Current [ADC]: 3.2

Rated Power [kW]: 0.1

Rated Speed [r/min]: 1500

Protection Class [IP]: 54

Max Temperature [°C]: 40

From Factor: 1.05

Duty: S4

Insulation Class: F

Weight [kg]: 3.16
