Leistritz 10 2 Control Block
Gebraucht
Auf Lager1 EinheitVersandbereit
Hydraulic Control Block
A compact hydraulic control block for oil systems, equipped with an electrically actuated directional seated valve and solenoid coil, offering reliable flow control and high-pressure performance in industrial hydraulic applications.24BlockcoilControlDirectionalHaweHydraulicHydraulicsIndustrialKE24924LeistritzoilPlateSeatedsolenoidsubSystemValveVDC
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

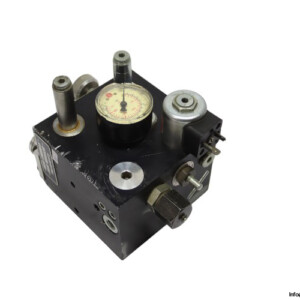

Leistritz KE24924 Hydraulic Control Block
A high-performance hydraulic control block designed for oil-based systems requiring reliable flow control, high-pressure resistance, and precise electrically actuated valve operation. This unit is engineered for demanding industrial hydraulic applications and is supplied with integrated valve components for efficient system integration. Manufacturer: Leistritz
Type: Control Block
Model: KE24924
Part No.: 10 2
Fluid: Oil
Connection: 1 ½ IN
Attached Directional Seated Valve
Solenoid Coil
Additional Valve Block
| Maximum Flow Rate | 130 L/min |
| Maximum Operating Pressure | 50 bar |
| Nominal Size | 4 |
| Valve Function | 2/2-Way Valve |
| Type of Actuation | Electrically |
| Maximum Pressure | 350 bar |
| Nominal Flow Rate | 120 L/min |
| Hydraulic Connection | Sub-Plate |
| Voltage | 24 VDC |
| Current | 3.6 A |
| Valve Type | BV 10 |
| Patent No. | 2108202.1 |
