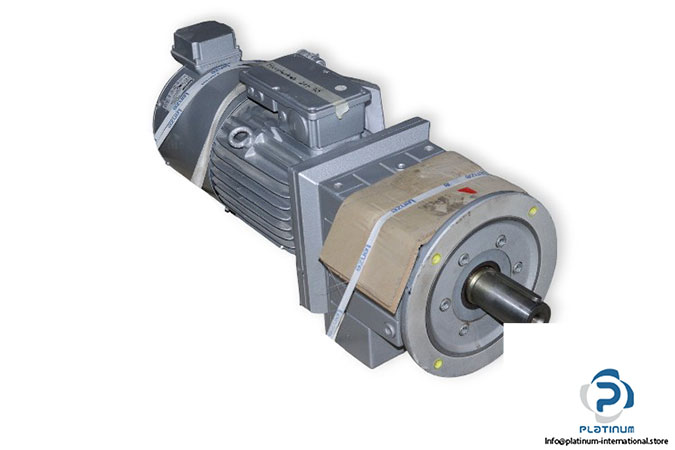

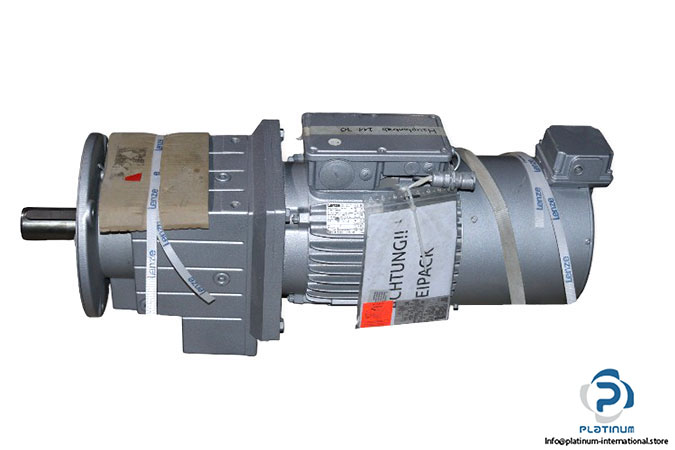

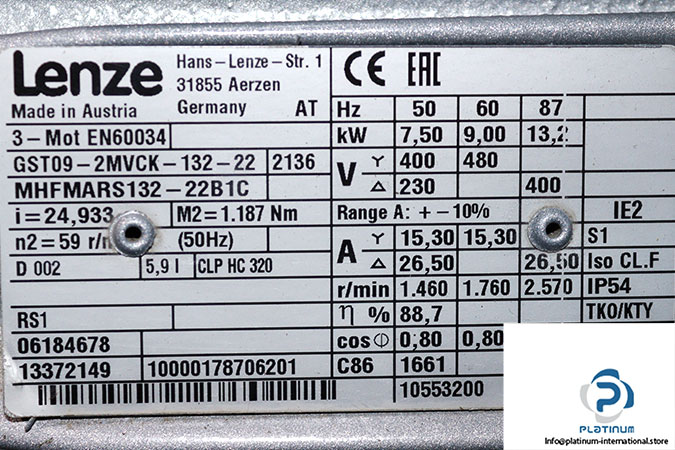

Lenze GST09-2M VCK-132-22 Helical Gearmotor

Manufacturer: Lenze
Type: Helical Gear Motor
Model: GST09-2MVCK-132-22
Part Nr.: MHFMARS132-22B1C

Output Speed [r/min]: 59
Total Ratio [i]: 24.933
Lubricant: CLP HC 320
Lubricant Volume [l]: 5.9
Frequency [Hz]: 50
Output Torque [Nm]: 1.187
Motor Frequency [Hz]: 50/60/87
Motor Voltage [V]: 230-400/400/400
Motor Current [A]: 15.3-26.5/15.3/26.5
Motor Speed [rpm]: 1460/1760/2570
Power Factor: 0.8/0.8/0.8
Duty: S1
Thermal Class/Enclosure [IP]: F/54

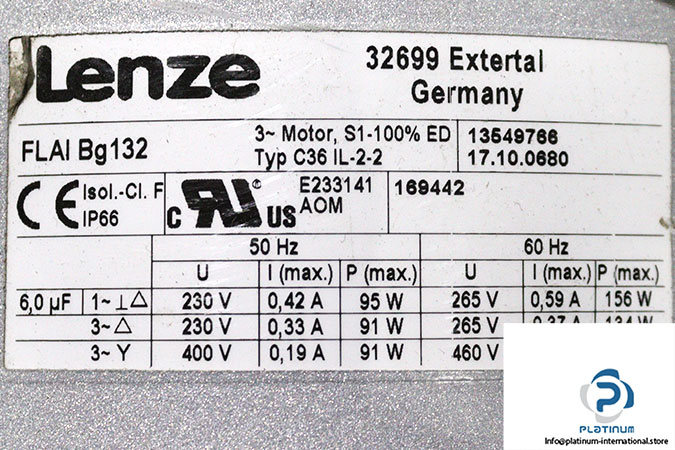

Attachment: Lenze C36 IL-2-2 Fan
Manufacturer: Lenze
Type: C36IL-2-2
Model: Fans
Rated Voltage [V]: 230-230-440/265-265-460
Max. Current [A]: 0.42-0.33-0.19/0.59-0.37-0.21
Max. Power [W]: 95-91-91/156-134-134
Frequency [Hz]: 50/60
Thermal Class/Enclosure [IP]: F/66
