Lenze MDXMA1M 090-32 Gearmotor
Neu
Auf Lager1 EinheitVersandbereit
1 299,99$
Gearmotor with Attached Gear and Fan
Lenze MDXMA1M 090-32 Gearmotor provides 1.5 kW power, 1420 rpm speed, and IP55 protection. It includes the Lenze GST05-2MVBR Gear with a 4.053 ratio and 350 rpm speed, along with the Lenze A2E 170 Fan for cooling.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

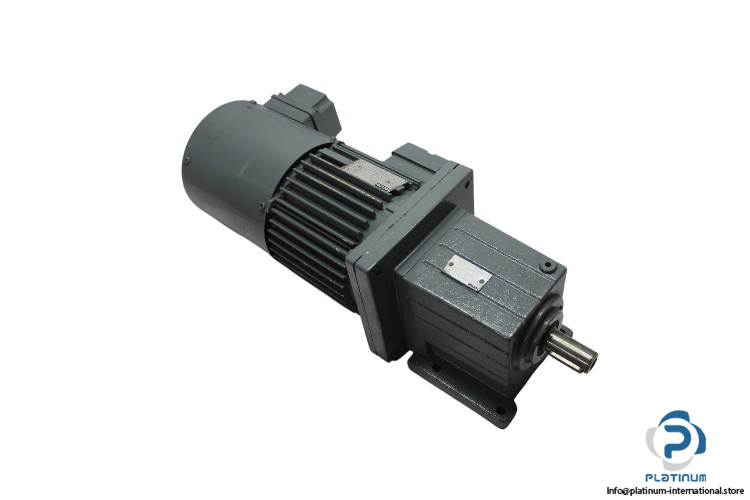

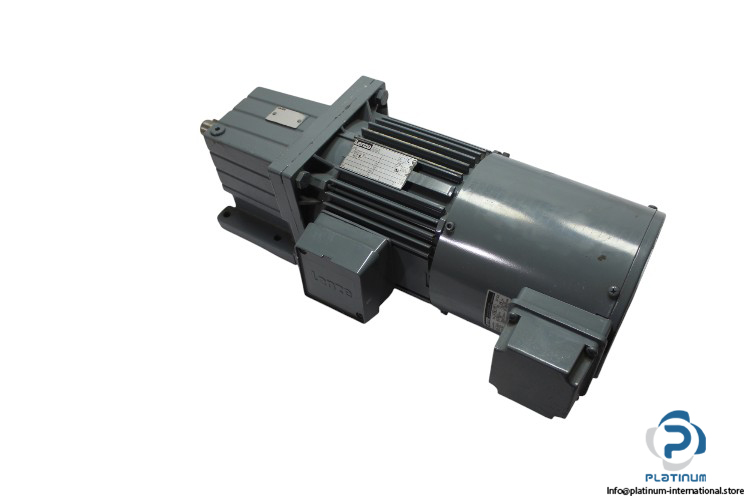

Lenze MDXMA1M 090-32 Gearmotor
The Lenze MDXMA1M 090-32 Gearmotor is a robust and efficient solution for industrial applications. With versatile voltage and frequency ranges, high torque, and compact design, it provides optimal performance for various mechanical systems.
Manufacturer: Lenze
Model: MDXMA1M 090-32
Type: Gearmotor
Part No.: M9LH4-018 H
Attachments:

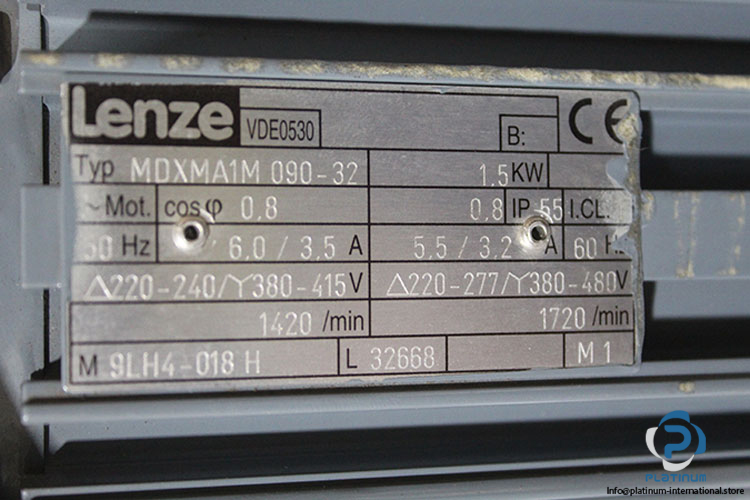

| Rated Voltage at 50Hz [V] | 220 to 240 / 380 to 415 |
| Rated Current [A] | 6 / 3.5 |
| Power [kW] | 1.5 |
| Speed [rpm] | 1420 |
| Power Factor (cos) | 0.8 |
| Rated Voltage at 60Hz [V] | 220 to 277 / 380 to 480 |
| Rated Current [A] | 5.5 / 3.2 |
| Rated Power [kW] | 1.5 |
| Rated Speed [rpm] | 1720 |
| Power Factor (cos) | 0.8 |
| IP Rate | IP55 |

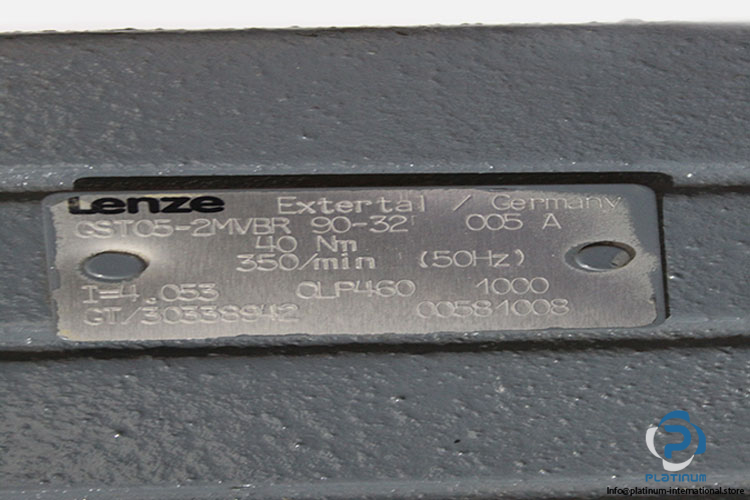

| Attachment 1 | Lenze GST05-2MVBR 90-32 005 A Gear |
| Part No. | 00581008, GT/30338942 |
| Ratio | 4.053 |
| Speed | 350 rpm |
| Frequency | 50 Hz |
| Torque | 40 Nm |

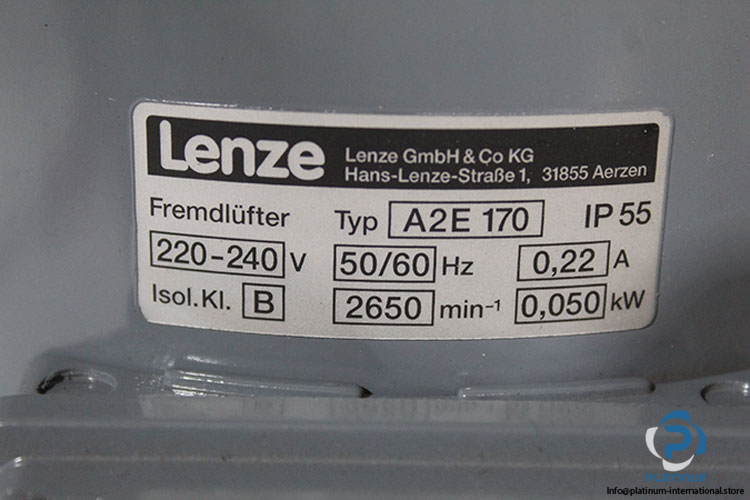

| Attachment 2 | Lenze A2E 170 Fan |
| Frequency | 50/60 Hz |
| Rated Current [A] | 0.22 |
| Power [kW] | 0.05 |
| Speed [rpm] | 2650 |
| Rated Voltage | 220 to 240 V |
| Class | B |
| IP Rate | IP55 |
