Leuze Odsl 96B M/C6-2000-S12 Optical Distance Sensor

Auf Anfrage verfügbar

Optischer Abstandssensor Der Leuze ODSL 96B M/C6-2000-S12 optische Abstandssensor bietet eine Reichweite von 2000 mm, eine Auflösung von 1,0 bis 3,0 mm und eine Laserlichtquelle. Verfügt über M12-Anschluss, IP67/IP69K-Schutz und arbeitet mit einer Versorgungsspannung von 18 bis 30 V DC.

Hersteller
LEUZE
SKU
1059747
Kategorie
Sensors
Zustand
Gebraucht
Teilen
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

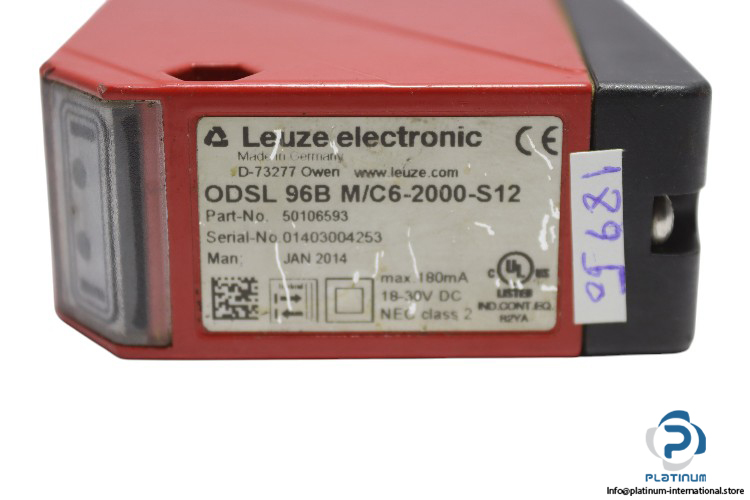

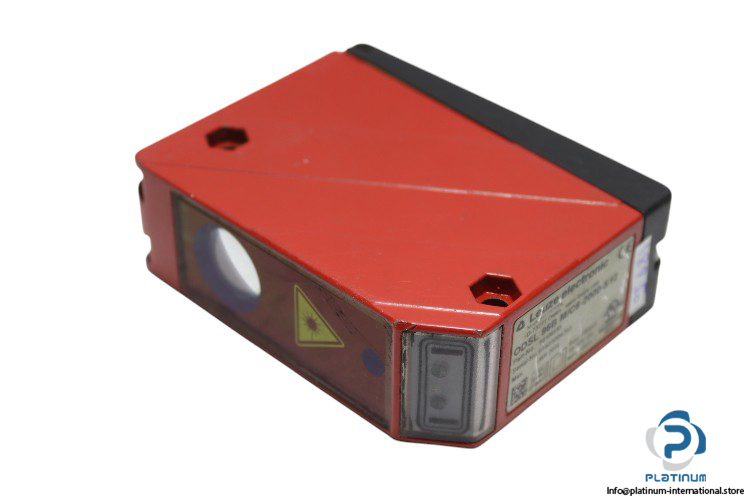

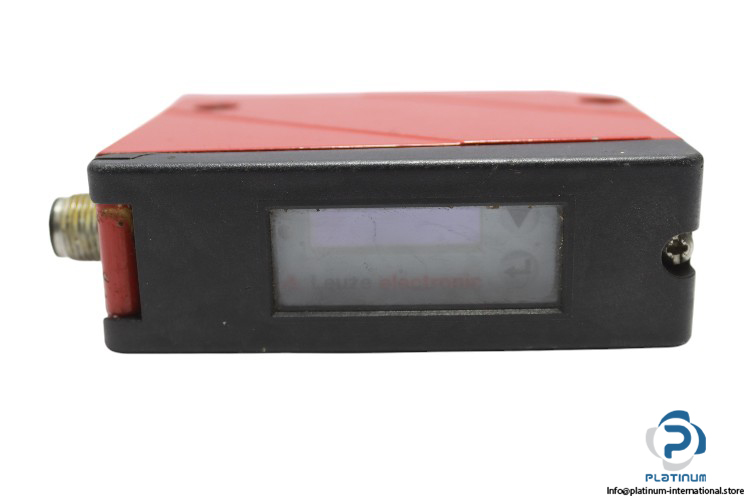

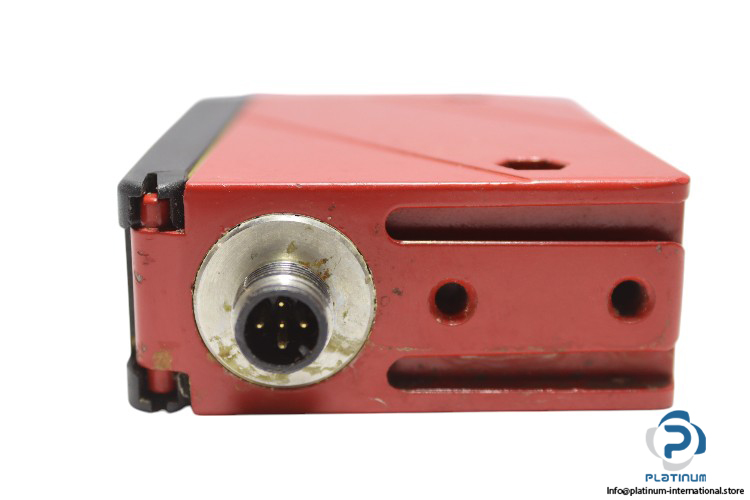

Leuze ODSL 96B M/C6-2000-S12 Optical Distance Sensor

The Leuze ODSL 96B M/C6-2000-S12 Optical Distance Sensor is a high-precision sensor designed to measure distances with exceptional accuracy in industrial applications. With a red laser light source, this sensor ensures precise measurements even in challenging environments. The ODSL 96B series features a range of 2000 mm and is equipped with a push-pull transistor switching element for reliable signal processing.

Operating within a supply voltage range of 18 to 30 V DC, the sensor offers a resolution of 1.0 to 3.0 mm and a light spot size of 2 mm x 6 mm at the sensor distance. Its compact metal housing and M12 threaded connection ensure easy installation and integration into a variety of industrial systems. Designed for harsh environments, the ODSL 96B M/C6-2000-S12 comes with an IP67 and IP69K degree of protection, making it resistant to dust, water, and high-pressure cleaning.

This optical distance sensor operates within an ambient temperature range of -20 to 50°C, making it ideal for industrial automation systems that require precise and reliable distance measurement in varied conditions. With a 5-pin connector and robust metal housing, this sensor is built to last and provide consistent performance over time.

Manufacturer: Leuze

Type: Optical Distance Sensor

Model: ODSL 96B M/C6-2000-S12

Part Number: 50106593

The Leuze ODSL 96B M/C6-2000-S12 Optical Distance Sensor provides accurate and reliable distance measurements, making it an ideal solution for industrial applications requiring precision and durability under harsh conditions.

Series96
Supply Voltage (UB)18 ... 30 V DC
Switching ElementTransistor, Push-pull
Type of ConnectionConnector
Thread SizeM12
MaterialMetal
Number of Pins5-pin
Light SourceLaser, Red
Light Spot Size (at sensor distance)2 mm x 6 mm
Resolution1.0 ... 3.0 mm
Housing MaterialMetal
Degree of ProtectionIP 67, IP 69K
Ambient Temperature, Operation-20 ... 50 °C
Dimensions (W x H x L)30 mm x 90 mm x 70 mm
