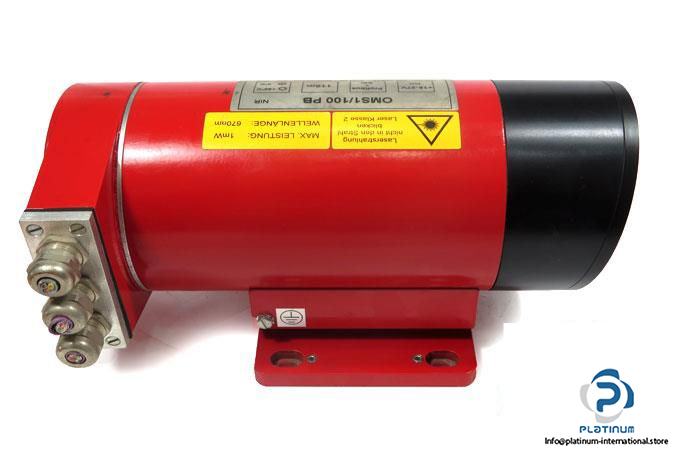

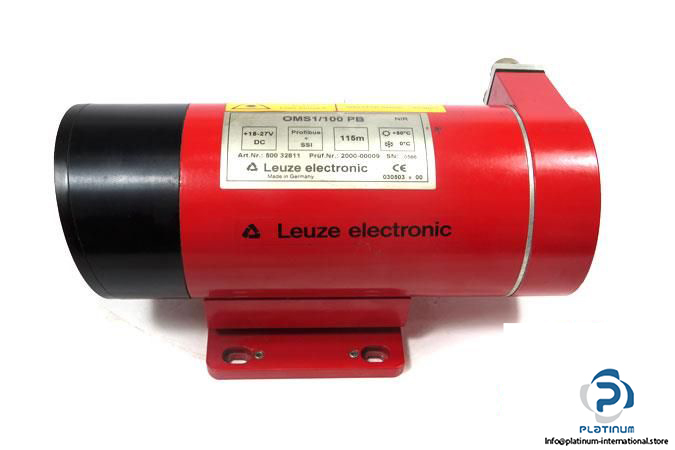

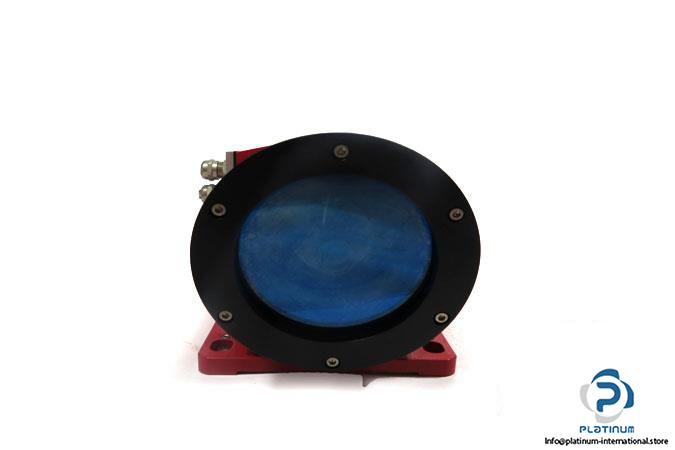

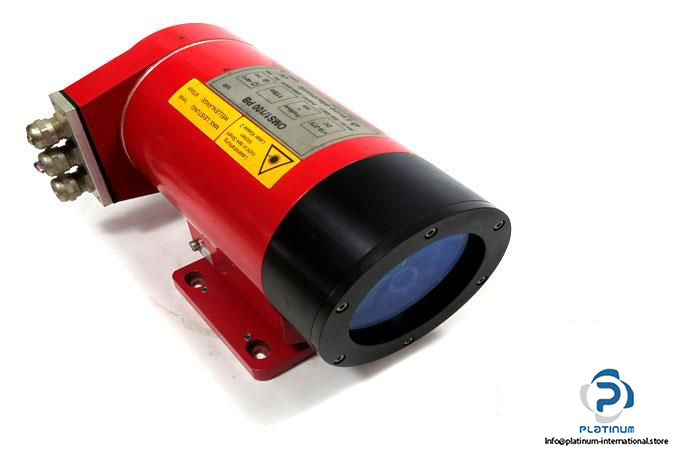

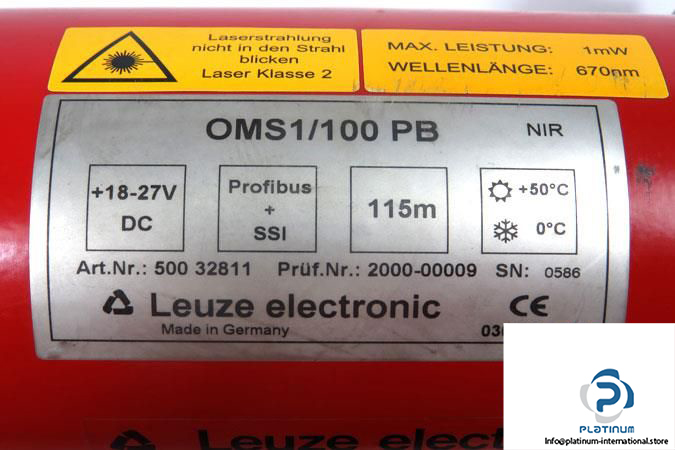

Leuze OMS1/100 PB Laser Measuring Device

Manufacturer: LEUZE

Type: LASER MEASURING DEVICE

Model: OMS1/100 PB

Art No.: 50032811

Application: it is an optical sensors for contactless measurement of the distance between the sensor and a reflector

Supply voltage: 18 … 27 V DC

Supply voltage (device with heating): 24 V DC

Measuring range (measurement on reflecting foil): 0.2 … 115 m

Measuring principle: Phase delay time measurement

Power Consumption (no load): 6 Watts

Opto-transmitter: Laser diode (red light)

Wave length: 670 nm

Laser power Max.: 1 mW

Opto-reciever: Photo diode

Integration time max.: 2 ms

Device Interface: Profibus + SSI

Operating temperature range: 0 … 50°C

Laser protection class: 2

Degree of protection: IP65

Condition: New
