Leuze RK 85/4 Photoelectric Diffuse Sensor

Manufacturer: LEUZE

Type: PHOTOELECTRIC DIFFUSE SENSOR

Order Code: RK 85/4

Typical scanning range: 0 … 2 m

Scanning range: 0 … 800 mm

Delay before start up max.: 200 ms

Response time: 2.5 ms

Operating Voltage: 11 … 30 V DC

Output Current max.: 100 mA

Switching frequency: 100 Hz

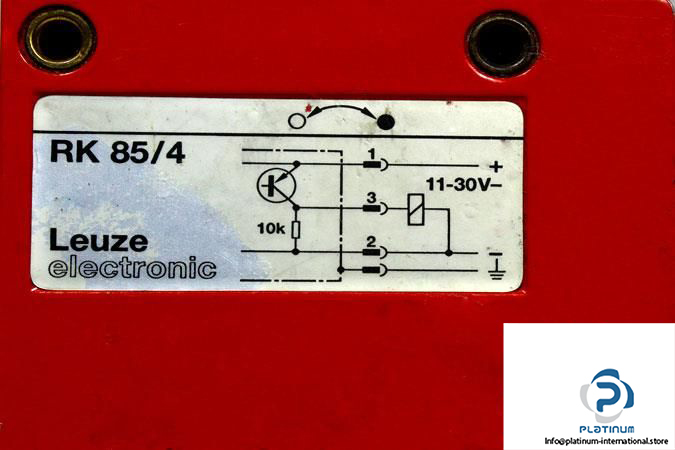

Electrical design: PNP

Switching output: Light switching

Adjustment: Potentiometer

Connector type: Screw terminals

Protection class: I

Enclosure rating: IP65

Ambient Operating temperature: -20 … 60°C

Dimensions: 69 x 36 x 100 mm

Housing: Rectangular

Housing material: Aluminum diecast

Weight: 0.35 Kg
