Leycon BAV 25 P AL Right-Angle Valve
Neu
Auf Lager1 EinheitVersandbereit
Right-Angle Valve
The Oerlikon Leybold LEYCON BAV 25 P AL is a pneumatically actuated aluminium right-angle valve with 25 mm nominal diameter, 1 × 10»¹ mbar·L/s leak rate, and reliable sealing for vacuum systems.25AlAluminiumAngleBAVComponentIndustrialLaboratoryLeakLeyboldLeyconlowmmOerlikonpPneumaticRateRightSystemvacuumValve
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

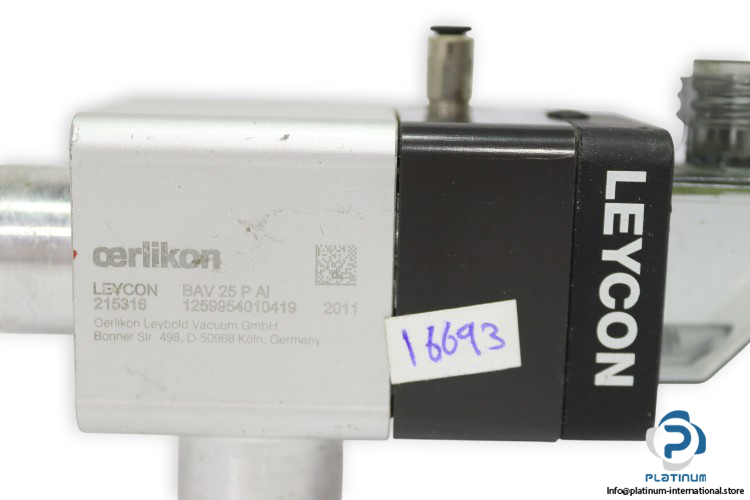

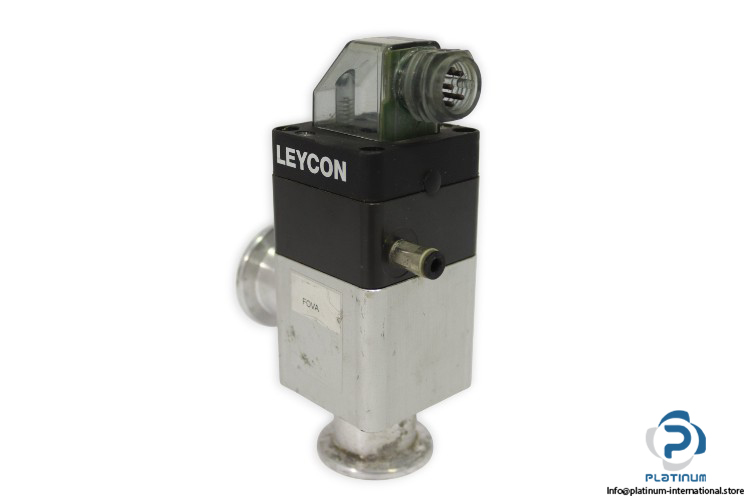

Oerlikon Leybold LEYCON BAV 25 P AL Right-Angle Valve
The Oerlikon Leybold LEYCON BAV 25 P AL Right-Angle Valve is a high-performance pneumatically actuated valve designed for reliable control of vacuum systems. Its compact aluminium construction ensures durability, low leak rate, and efficient operation in laboratory and industrial vacuum applications.
Manufacturer: Oerlikon Leybold
Brand: LEYCON
Type: Right-Angle Valve
Model: BAV 25 P AL
MRN: 1259954010419
Part No.: 215 316
| Fluid | Air |
| Leak Rate | 1 × 10»¹ mbar·L/s |
| Pressure Range (Valve Open) | 1 × 10»¸ to 5000 mbar absolute |
| Nominal Diameter (DN) | 25 mm |
| Molecular Flow Conductance | 14 L/s |
| Admissible Temperature | 0 to 120 °C |
| Valve Body Material | Aluminium |
| Operation Type | Pneumatically actuated |
| Function | Right-angle valve for vacuum systems |
| Typical Applications | Fore-vacuum or rough vacuum lines in laboratory and industrial systems |
| Design Features | Compact design, easy maintenance, reliable sealing for clean vacuum processes |
