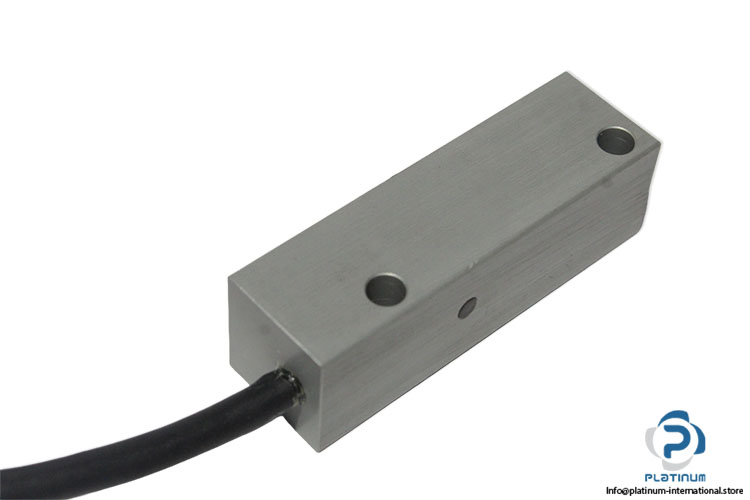

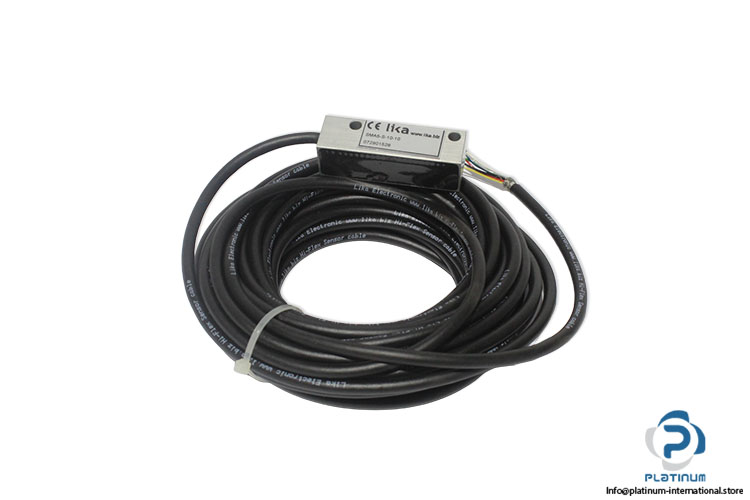

Lika SMA5-S-10-10 Absolute Linear Encoder

Auf Lager1 EinheitVersandbereit

Absolute Linear Encoder The LIKA SMA5-S-10-10 is a contactless absolute linear encoder with SSI interface, precise position measurement, IP67 protection, and up to 5 m measuring length for industrial applications.

Hersteller
LIKA
SKU
1101011
Zustand
Neu
Teilen
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
SeriesSMA5
Art. Nr.6033 160 916 001000

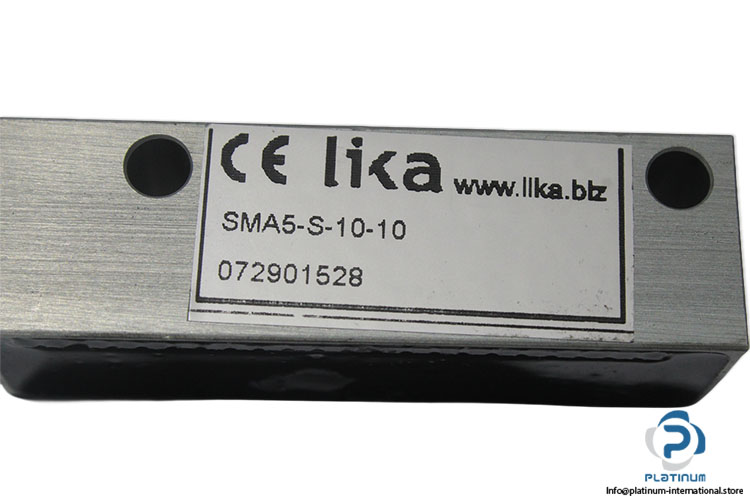

Code072901528
Output/InterfaceSSI
Resolution100, 50, 10, 5 µm
Sensor accuracy±20 µm
max. Repeat accuracy±1
increment Output circuitsSSI
Position refresh250 µs
Power supply+10Vdc ÷ +30Vdc
Power consumption1 W max.
Protectionagainst inversion of polarity and short-circuit
EMCacc. to EN 61000-6-2 level 3
FunctionsZero setting, Counting direction
Encoder versionContactless
Measurement length5 m
ApplicationGeneral industry
Product statusActive
Operating temperature range-25°C +85°C

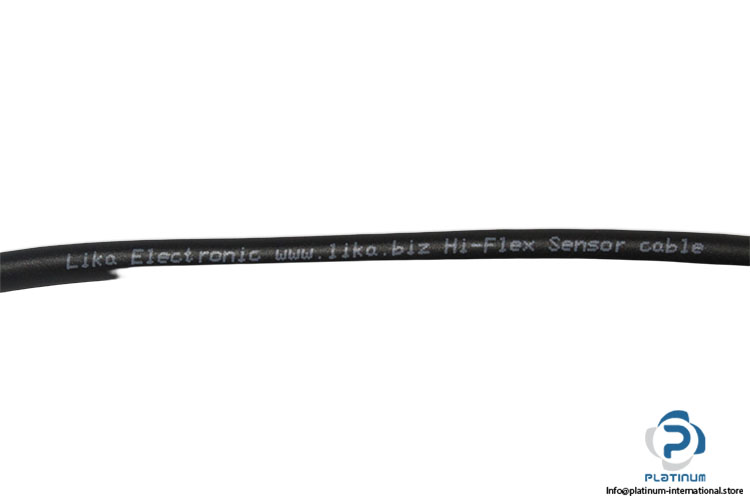

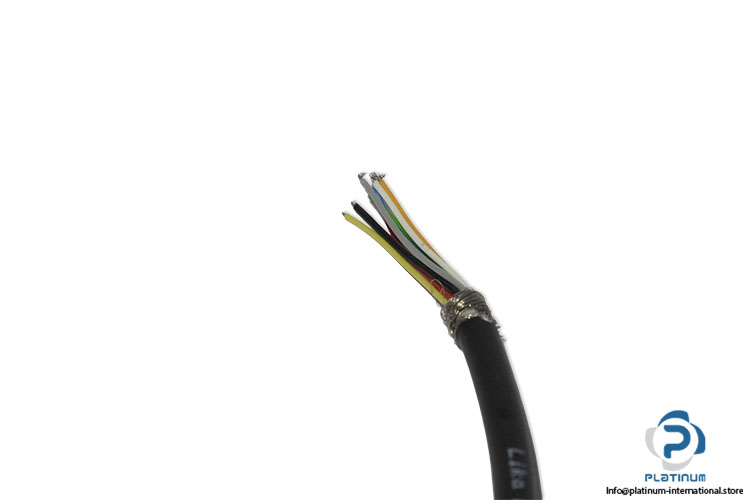

Electrical connectionLika Hi-flex cable M8 2,0 m or M12 8 pin inline plug
Gap between sensor/tape0,1 ÷ 1,0 mm
Travel speed (mechanical)5 m/s
max. Measurement length5,05 m
ConnectionCable
Stock keyCON003
ConditionNew
SKU1101011
Weight0,50
