Kugelgelenk-Gelenkauge LS SQ10-RS männliche-weibliche Kugelgelenk-Gelenkauge mit M10 × 1,25 Gewinde, 25° Schwenkwinkel und 10 kN statischer Belastbarkeit für industrielle Bewegungsanwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

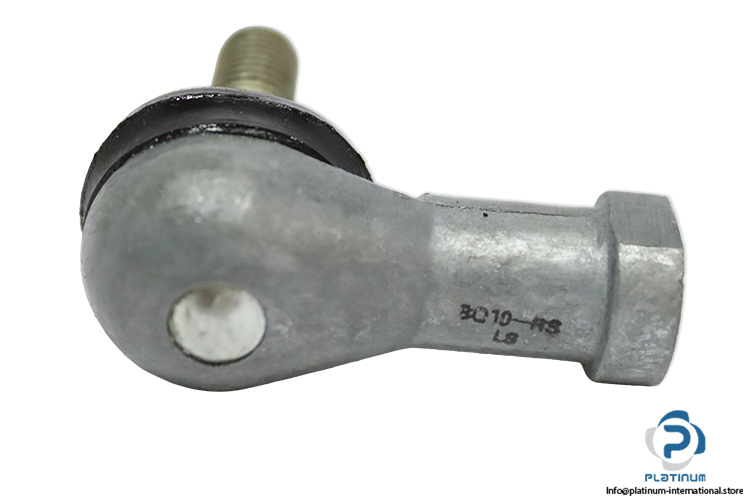

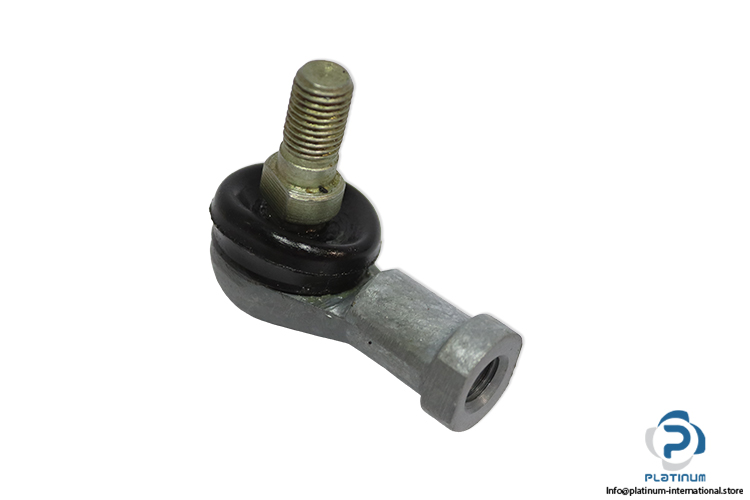

LS SQ10-RS Ball Joint Rod End
The LS SQ10-RS is a male-female ball joint rod end designed to accommodate angular movement while maintaining reliable mechanical connection in industrial motion and linkage systems.
Manufacturer: LS
Type: Male-Female Ball Joint Rod End
Model: SQ10-RS

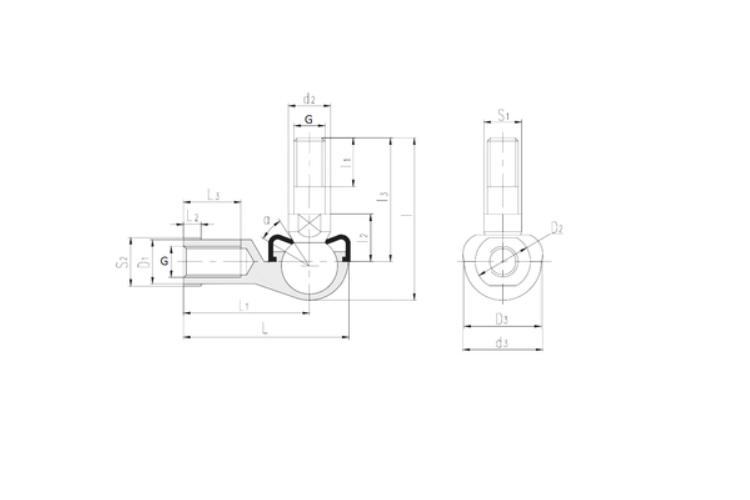

Dimensions:
| Thread (G) | M10 × 1.25 |
| Angle | 25 Degree |
| Static Load Rating | 10 kN |
| Permissible Operating Temperature Range | -50 to 150 °C |
| S1 | 11 mm |
| S2 | 17 mm |
| L | 57 mm |
| L1 | 43.5 mm |
| L2 | 6.5 mm |
| L3 | 21 mm |
| I | 50.5 mm |
| D1 | 15 mm |
| D2 | 19 mm |
| D3 | 27 mm |
| d2 | 14 mm |
| d3 | 30 mm |
| l1 min. | 15 mm |
| l2 max. | 17 mm |
| l3 min. | 37 mm |
