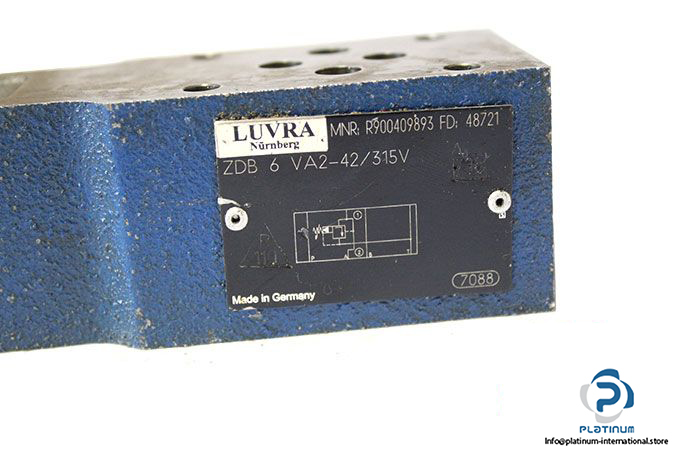

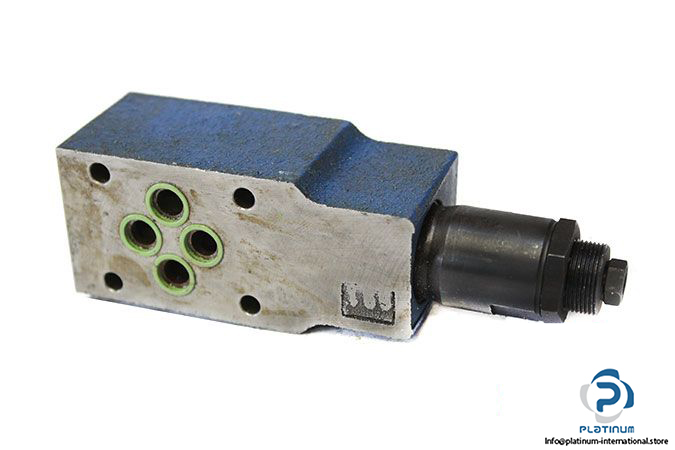

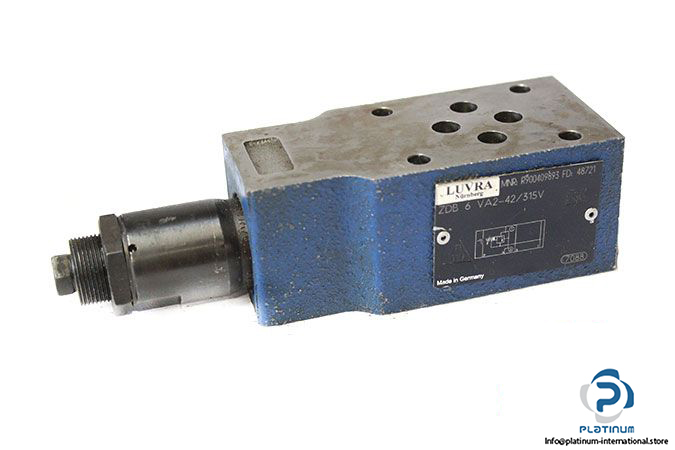

Luvra R900409893 Pressure Relief Valve Pilot Operated

Manufacturer: LUVRA

Type: Pressure Relief Valve Pilot Operated

Model: ZDB 6 VA2-42/315V

MNR: R900409893

Size: 6

Adjustment Element for Pressure Adjustment: Sleeve with Hexagon and Protective Cap

Pressure Setting: 315 bar

Ambient Temperature Range: –20 …. +80 ^oC

Maximum operating pressure:315 bar

Maximum Flow Rate: 60 l/min

Hydraulic Fluid Temperature Range: –20 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

Connection: Sup-plate

Weight: 1.12 kg
