Mahle PIS3003 Electronic Maintenance Indicator
Neu
Auf Anfrage verfügbar
88,88$
ELECTRONIC MAINTENANCE INDICATOR
Mahle PIS 3003 ensures precise differential pressure monitoring for hydraulic and filtration systems. Designed with electrical output, NC/NO flexibility, and IP65 protection for reliable operation.12“230V3003ContaminatiDevicedifferentialElectricalElectronicfiltrationHydraulicIndicatorIP65MahleMaintenanceMonitorNCNOPISPressureSensorSwitchSystem
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

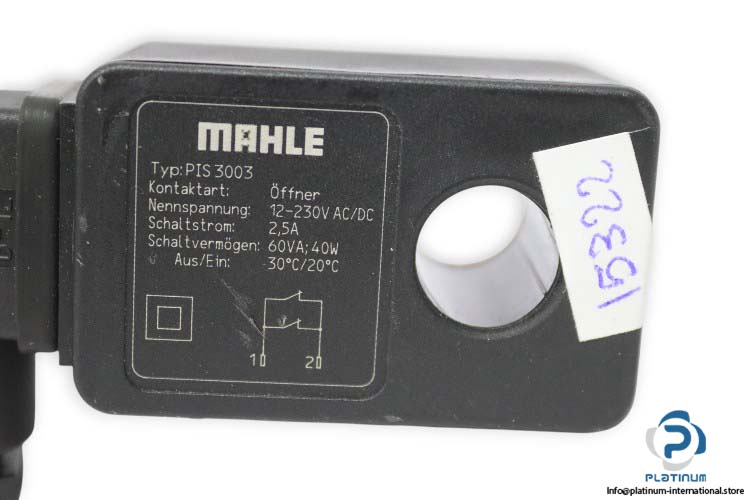

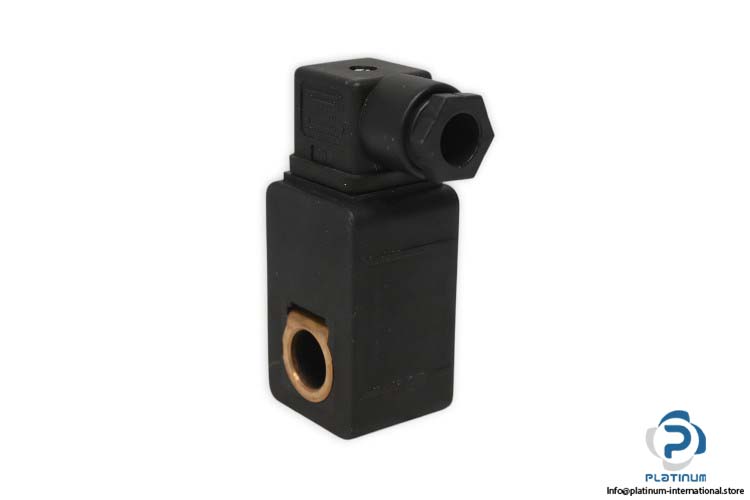

MAHLE PIS 3003 ELECTRONIC MAINTENANCE INDICATOR
The Mahle PIS 3003 is an advanced electronic maintenance indicator designed for hydraulic and filtration systems. It offers reliable differential pressure monitoring with integrated electrical signaling, enhancing system maintenance and uptime efficiency. Manufacturer: Mahle
Type: Electronic Maintenance Indicator
Model: PIS 3003
Electrical Ratings:
| Used | In hydraulic and filtration systems |
| Indicator Type | Differential pressure / contamination indicator, with electrical upper section |
| Contact Configuration | Normally Closed (NC), convertible to Normally Open (NO) |
| Signal Suppression | Thermowell lock-out (OFF/ON, 30°C/20°C) |
| - Rated Voltage | 12 to 230 V AC/DC |
| - Switching Current | 2.5¯A |
| - Switching Capacity | 60 VA, 40 W |
| Protection Rating | IP65 when inserted |
| Port Size | 15 mm |
