Maier Heidenheim Dxsb 2.150K 200 Rotary Joint
Gebraucht
Auf Lager1 EinheitVersandbereit
4 999,99$
ROTARY JOINT
Maier Heidenhain DXSB 2.150K 200 rotary joint with ball bearing, 150 mm diameter, -10 to 150 °C temperature range, -0.2 to 8 bar pressure, and K flange rotor connection.1502.150K200BallbearingConnectorCoolingDXSDxsbFlangeHeidenhainHigh-SpeedHotIndustrialJointKMaiermmRotarySeriesWaterWith
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

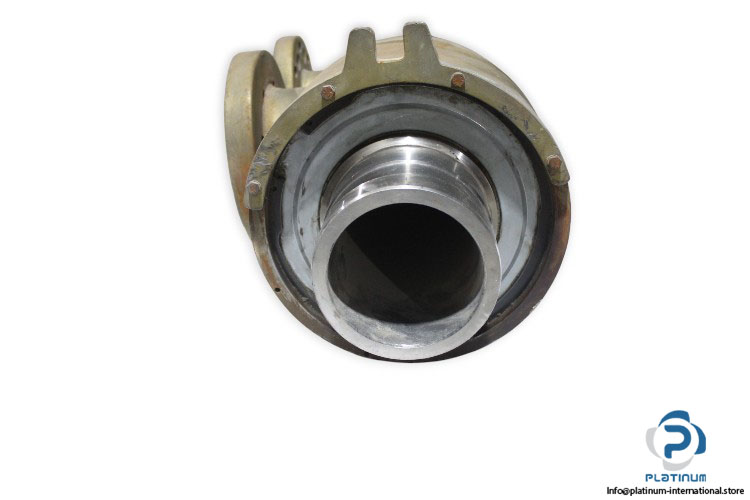

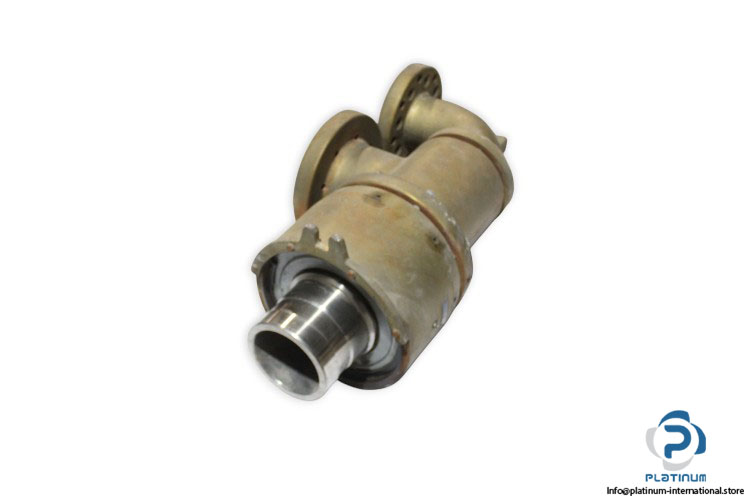

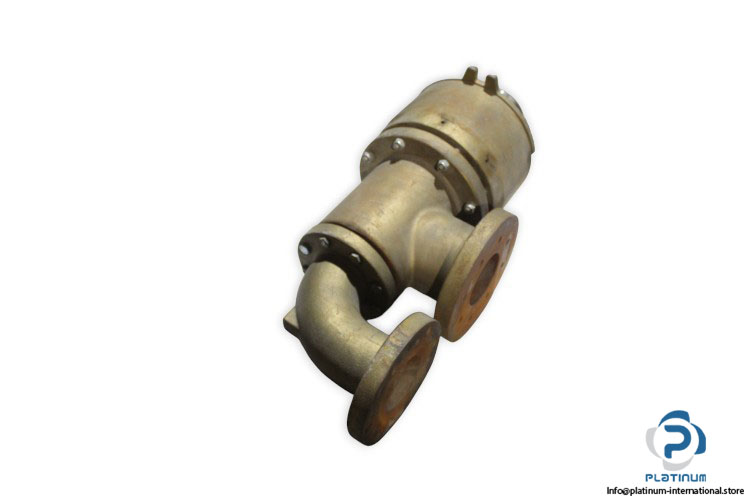

Maier Heidenhain DXSB 2.150K 200 Rotary Joint with Ball Bearing
The Maier Heidenhain DXSB 2.150K 200 is a high-performance rotary joint with ball bearing design, engineered for reliable transfer of cooling water and hot water in demanding industrial environments. With robust construction, wide temperature range, and durable sealing, it ensures efficiency and long service life.

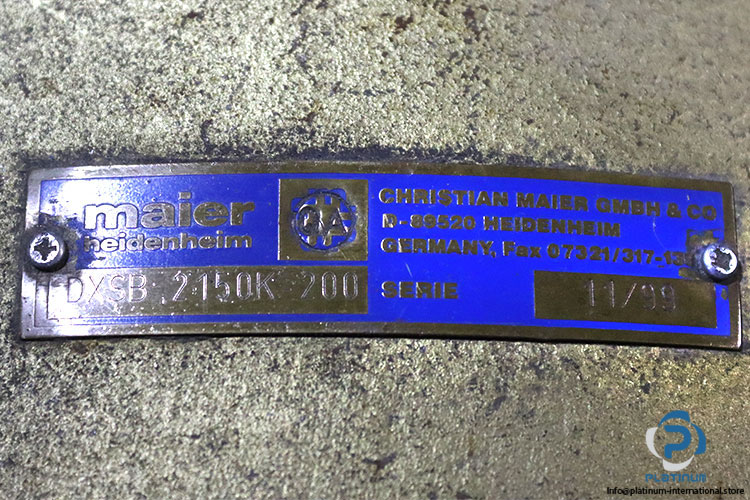

Manufacturer: Maier Heidenhain
Type: Rotary Joint with Ball Bearing
Model: DXSB 2.150K 200
Serie: 11/99

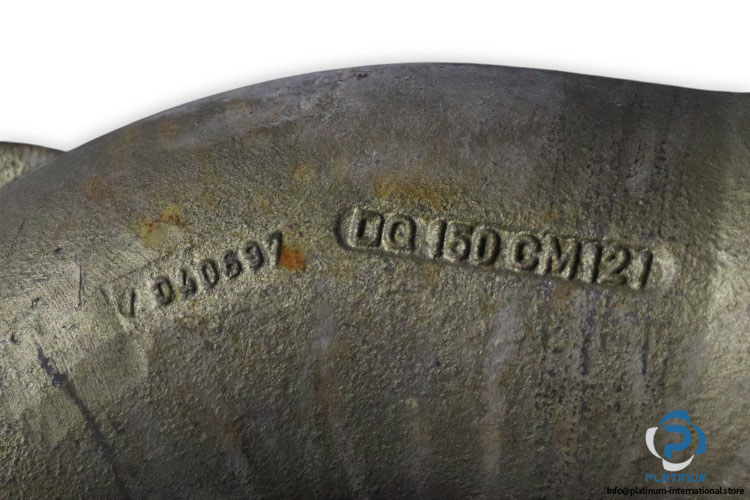

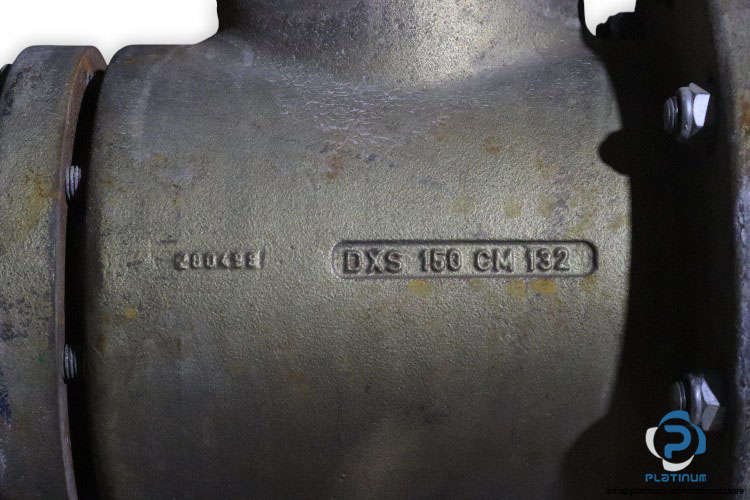

Code: DXS 150 CM 182/280499/DQ 150CM121/040897
Series: DXS
Design: B2
| Medium | Cooling water, Hot water |
| Nominal Diameter | 150 mm |
| Temperature Range | -10 / 150 °C |
| Pressure | -0.2 / 8 bar |
| Speed | 55000/DN rpm |
| Version | For rotating internal pipe (B), statically held in the rotor |

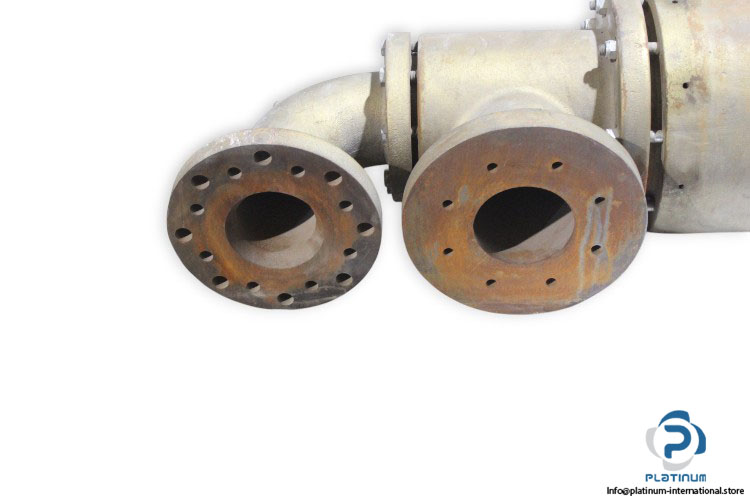

| Number of Housing Connections | 2 |
| Rotor Connection | K, for K flange |
