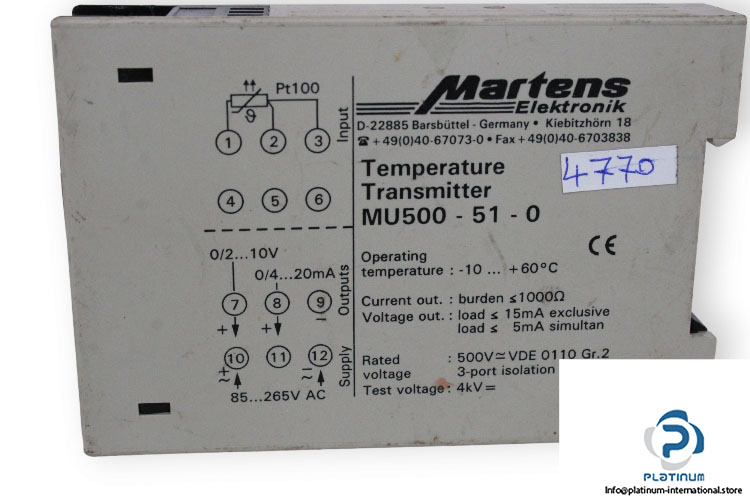

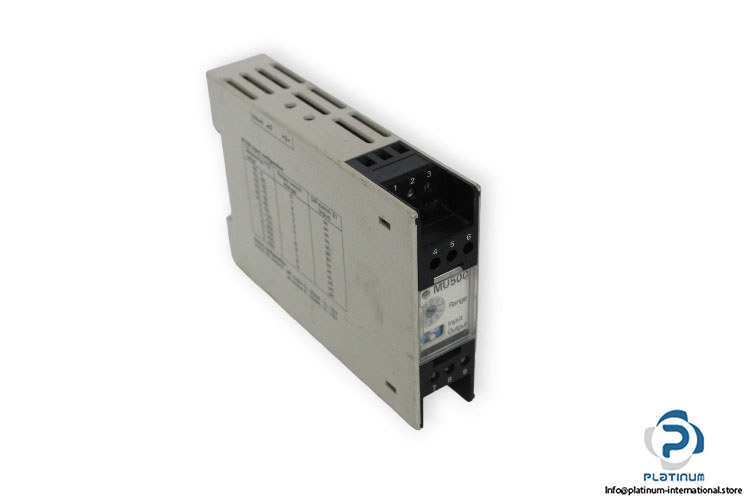

Martens MU500-51-0 Temperature-Transmitter

Manufacturer: MARTENS
Type: Temperature-Transmitter
Model: MU500-51-0

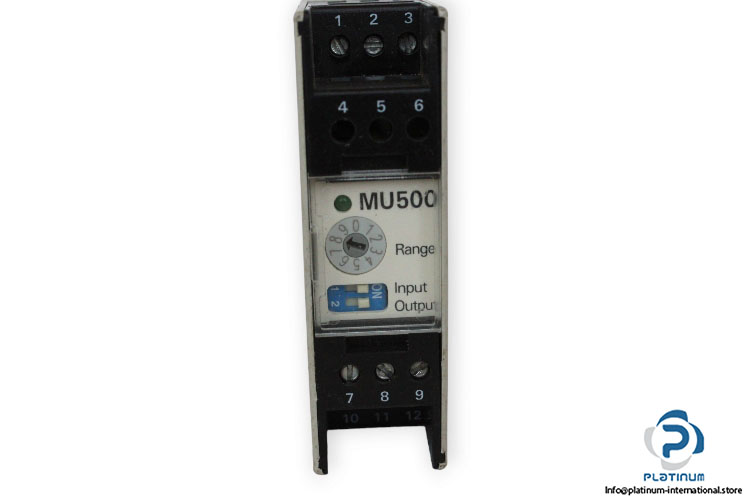

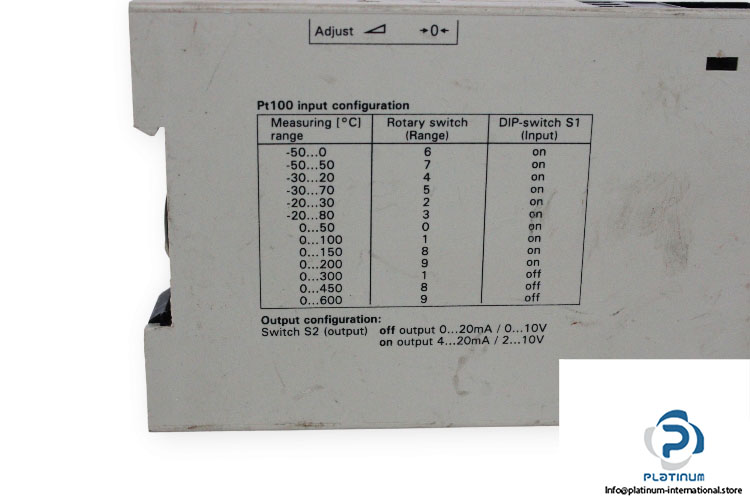

Measuring ranges: selectable via rotary switch
PT100: -50 … 0, -50 … 50, -30 … 20, -30 … 70, -20 … 30,
-20 … 80, 0 … 50, 0 … 100, 0 … 150, 0 … 200,
0 … 300, 0 … 450, 0 … 600 °C
Offset adjust: offset: approx. ±8 Ohm (^= 20 °C)
Span: approx. ±20 %
Sensor connection: 2- or 3-wire connection
Sensor current: approx. 1 mA
Output signal: 0 – 20 mA, 4 – 20 mA, 0 – 10 V or 2 – 10 V
Max. load: burden < =1 kOhm (at mA), load: max. 15 mA (at V)
Basic accuracy: < =0.2 % of measuring range
Temperature coeffi cient: < =0.01 %/K
Output accuracy: <=0.1 % of measuring range
Power supply: (… – 0):  85 … 265 V AC / 110 … 125 V DC
                     (… – 5):  10 … 42 V DC / 10 … 30 V AC
Power consumption: max. 2.2 W / 3.3 VA
Isolation voltage: 500 V AC, according to VDE 0110 Gr. 2
between input/output/supply voltage
Working temperature: -10 .. 60 °C
Electrical connection: screw-terminals with pressure plates, max. 2.5 mm²
Dimensions: 22.5 x 75 x 110 mm (W x D x H)
Protection: IP 30 (case), IP 20 (terminals)
