Martonair SM/930 D 50 ISO Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
ISO Cylinder
The Martonair Norgren SM/930 D 50 ISO Cylinder features a 3 inch bore, 50 mm stroke, and 10 bar max pressure. Its square frame and double-acting function make it ideal for pneumatic operations.1033/850ActingAutomationbarboreconnectionCylinderDDoubleframeGinchIndustrialISOMartonairmmNorgrenPneumaticPressureSM/930SquareStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

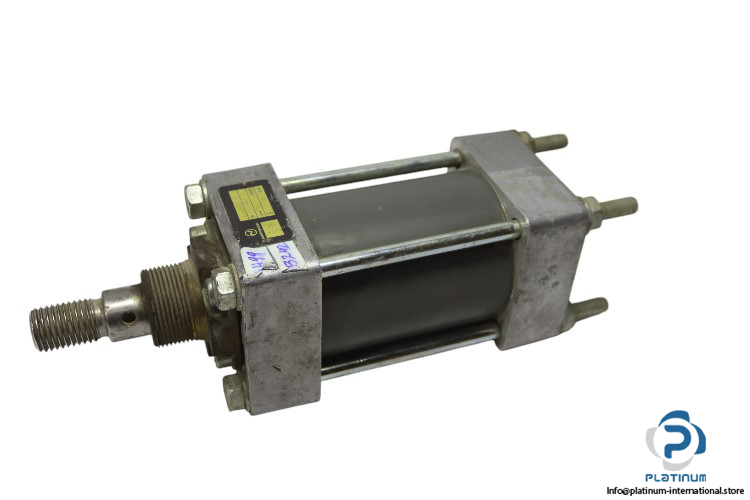

Martonair Norgren SM/930 D 50 ISO Cylinder
The Martonair Norgren SM930D 50 ISO Cylinder is engineered for efficient pneumatic motion applications. With a durable square design and precise bore and stroke dimensions, it delivers reliable double-acting performance in demanding industrial environments.
Manufacturer: MARTONAIR NORGREN
Type: ISO Cylinder
Model: SM/930 D 50
| Media | Compressed Air |
| Bore Diameter | 3 Inch |
| Stroke | 50 mm |
| Bore x Stroke | 3 Inch x 50 mm |
| Rod Diameter | 25 mm |
| Frame Dimensions | 90 x 215 mm |
| Pressure Max. | 10 bar |
| Pneumatic Connection | G 3/8 |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
