Martonair SM/940 D 150 ISO Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
ISO Cylinder
The Martonair Norgren SM/940 D 150 ISO Cylinder features a 4 inch bore, 150 mm stroke, and G 3/8 pneumatic connection. Designed for double-acting operation in industrial pneumatic systems.1503/84ActingAirAutomationboreCompressedconnectionCylinderDdiameterDoubleGinchIndustrialISOMartonairmmNorgrenPneumaticRODShapeSM/940SquareStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

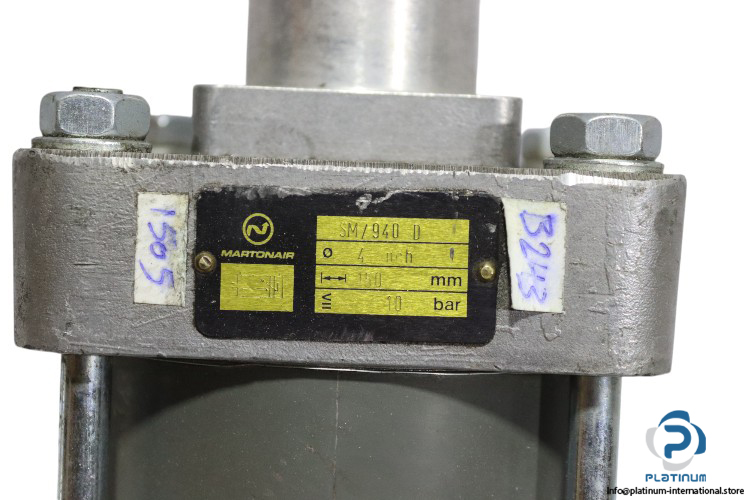

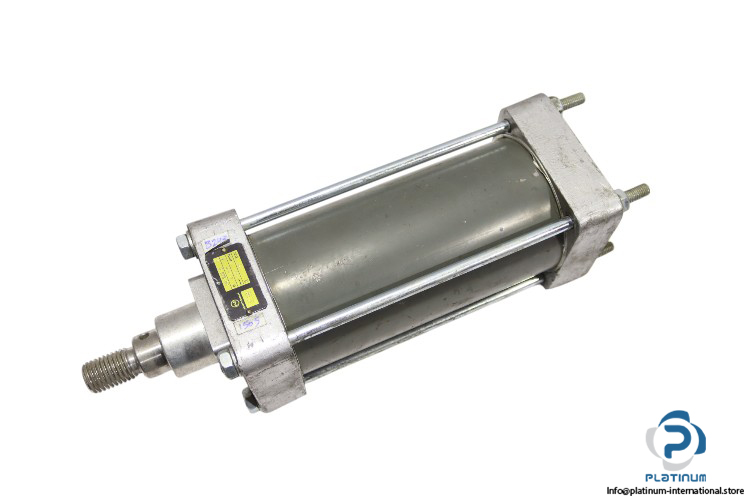

Martonair Norgren SM/940 D 150 ISO Cylinder
The Martonair Norgren SM940D 150 ISO Cylinder is a high-quality pneumatic actuator built for durability and reliable performance. Designed for double-acting operation, it features a 4-inch bore and 150 mm stroke, making it ideal for industrial automation applications.
Manufacturer: MARTONAIR NORGREN
Type: ISO Cylinder
Model: SM/940 D 150
| Media | Compressed Air |
| Bore Diameter | 4 Inch |
| Stroke | 150 mm |
| Bore x Stroke | 4 Inch x 150 mm |
| Rod Diameter | 33 mm |
| Frame Dimensions | 115 x 320 mm |
| Pressure Max. | 10 bar |
| Pneumatic Connection | G 3/8 |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
