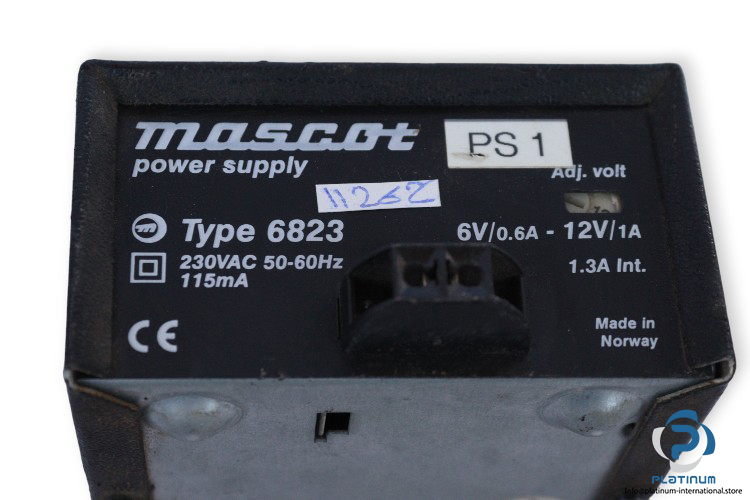

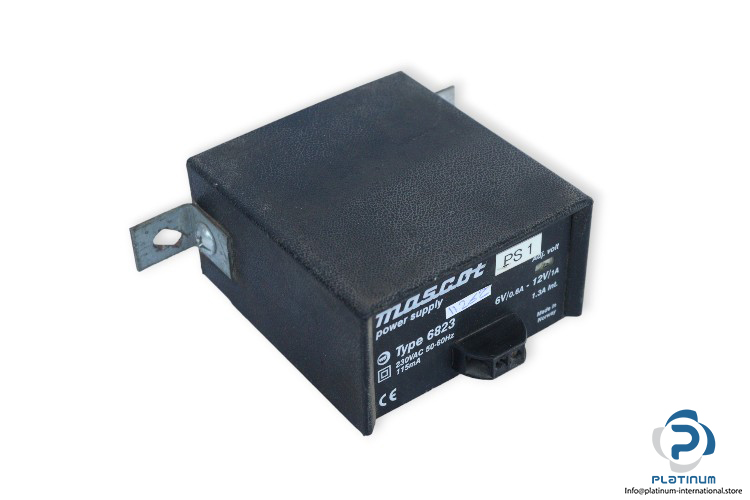

Mascot 6823 Power Supply

Manufacturer: Mascot
Type: Power Supply
Part No.: 6823
Model: PS1

Input Voltage: 230 V AC
Frequency: 50/60 Hz
Input current: 115 mA
Output Voltage: 6 … 12 V D C
Output power max.: 12 W
load current max.: 0,6 A@6V / 1A@12 V
Load regulation: 1.3 A
Ripple: 3 mV RMS
Insulation class: 3000 VAC
Electrical safety standard: EN 60950
Temperature range: -10 …+40°C
Dimensions: 98 × 108 × 55 mm
