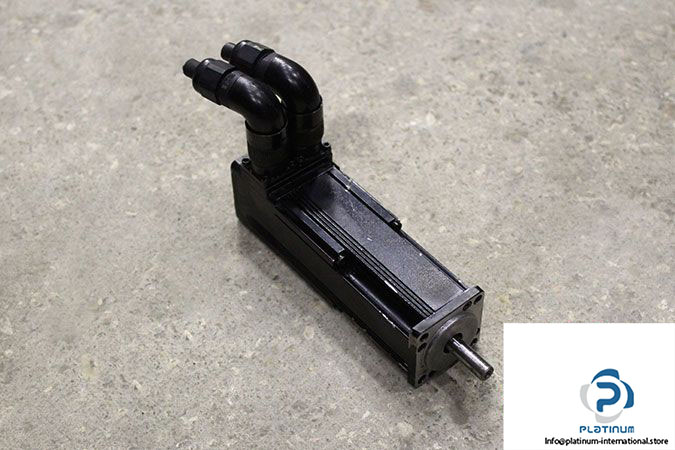

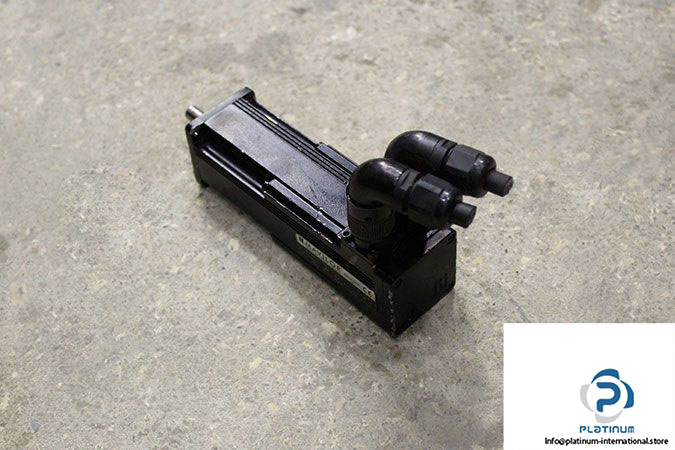

Mavilor BLS-040B AC Servo Motor

Manufacturer: Mavilor

Type: AC Servo Motor

Model: BLS-040

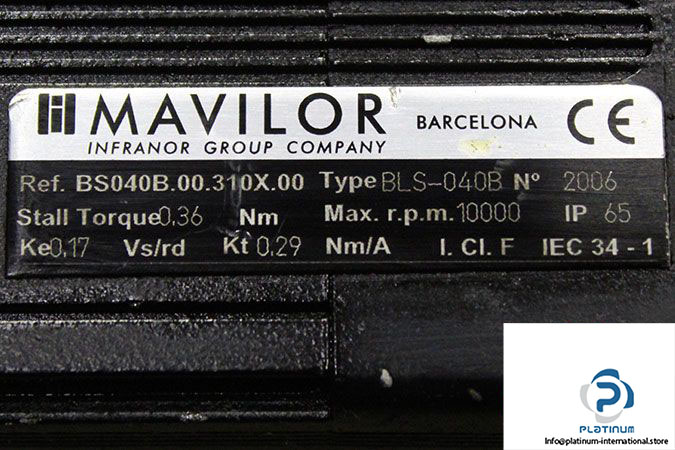

Reference No.: BS040B.00.310X.00

Max. Speed [r/min]: 10,000

Stall Torque [Nm]:  0.36

Stall Current [A]: 1.24

Peak Torque [Nm]: 1.44

Emf Constant [Vs/rad]: 0.17

Torque Constant [Nm/A]: 0.29

Radial Load [N]: 150

Axial Load [N]: 80

Dimensions [mm]: 300x300x10

Protection Class [IP]: 65

Insulation Class: F

Weight [kg]: 0.77
